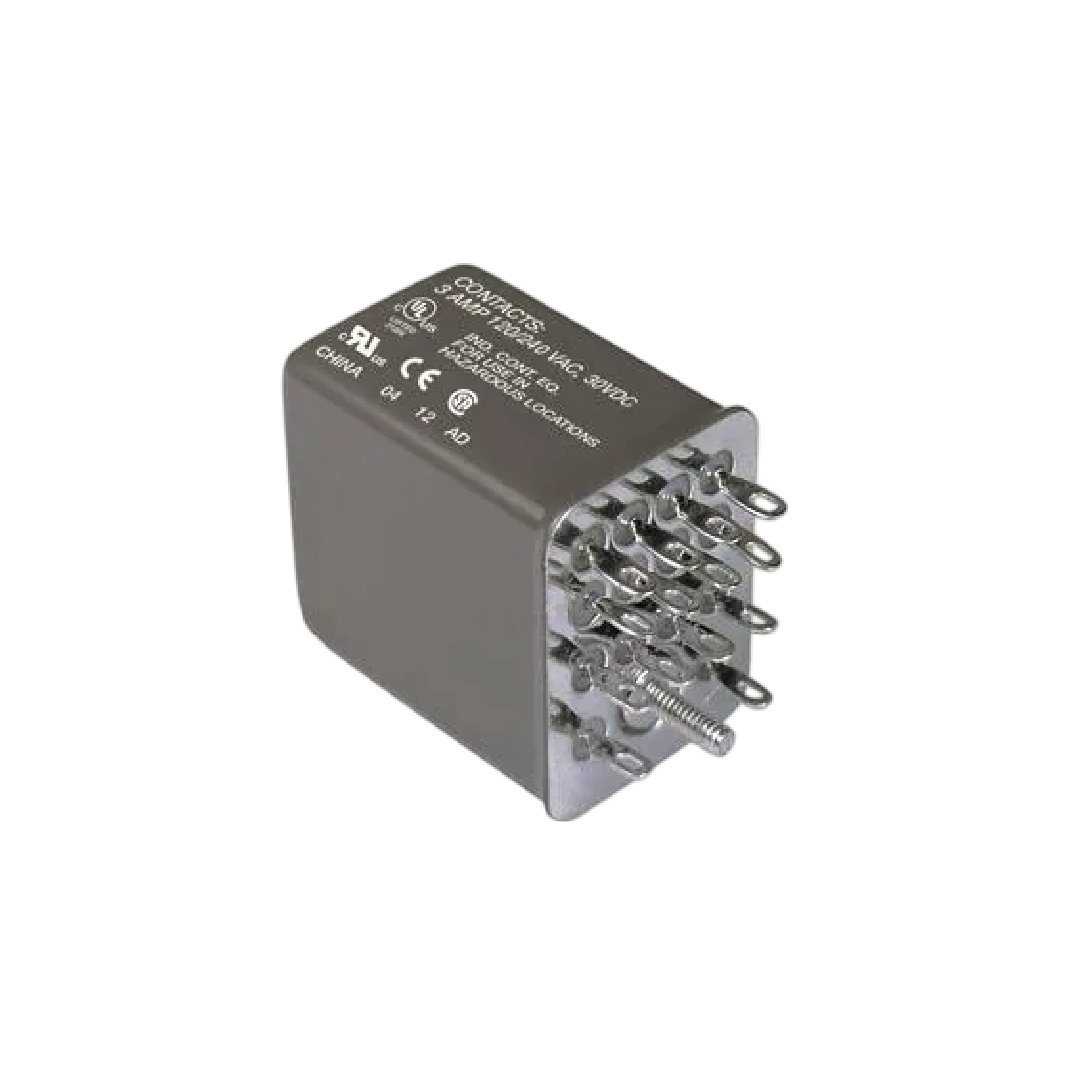

Schneider Relay Part No. 782XDXH10-24D

Name: Schneider Relay Part No. 782XDXH10-24D
Brand: Schneider Electric
Price: 4023.00 THB
Availability: InStock

Schneider Electric

4,023.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Schneider Relay Part No. 782XDXH10-24D

Specifications
Coil Voltage	24V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	3A
Number of Poles	4
Latching	No
Terminal Type	Screw
Coil Resistance	650Ω
Coil Power	1.2W
Maximum Switching Voltage AC	300V
Length	29.36mm
Standards Met	CE, CSA, UL
Height	23.1mm
Number of Coils	Single
Isolation Coil To Contact	1.24kVrms
Depth	32.54mm
Maximum Switching Power DC	500mW
Application	Automotive
Width	22.75mm
