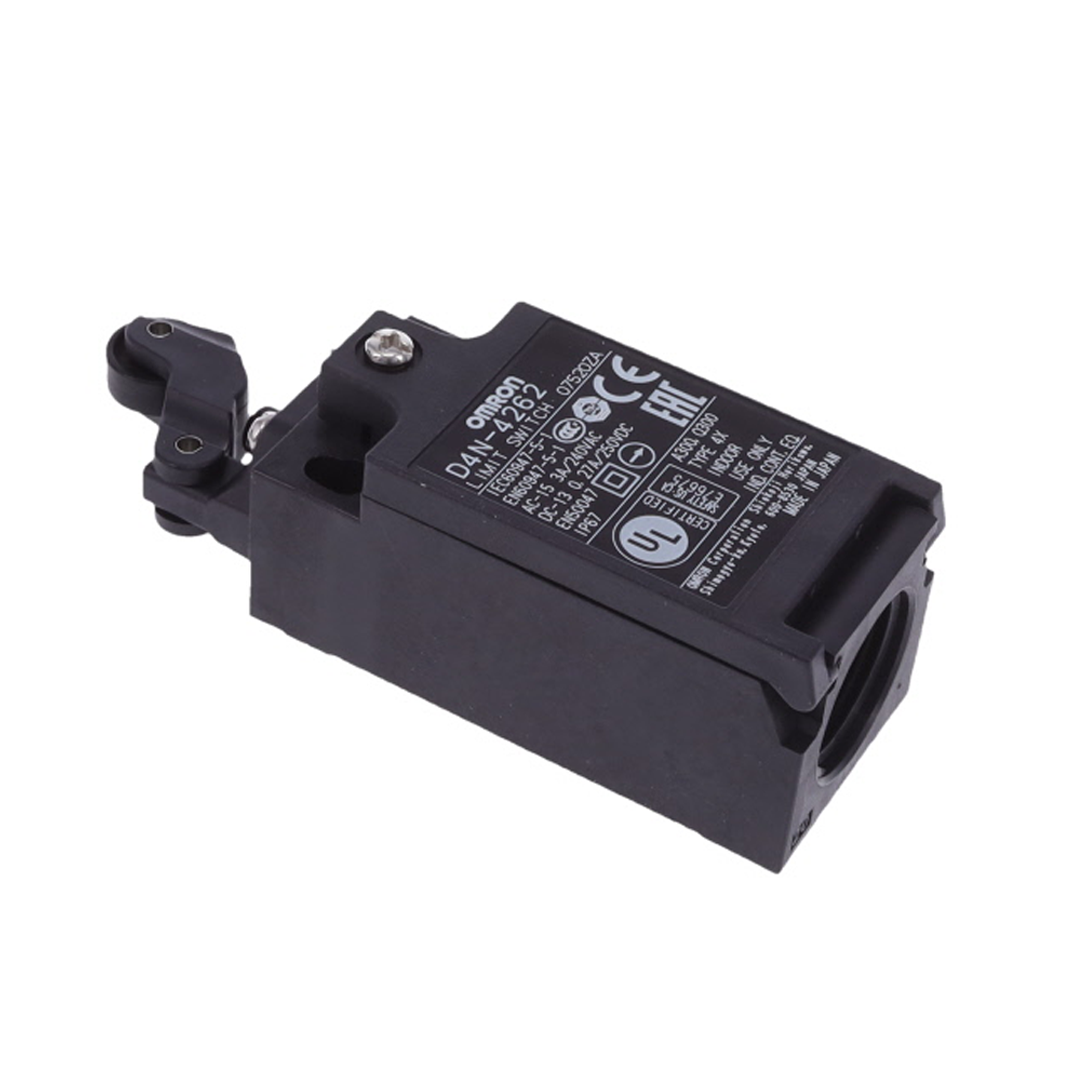

Limit Switch Omron D4N-4262

Limit Switch Omron D4N-4262

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,172.93 ฿
1,172.93 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Limit Switch Omron D4N-4262

Dimension

  • Mounting hole dimensions
รูป

Circuits configuration

รูป

Rating / Performance

Operating mechanism Snap action
Operation type Horizontal operation type
ctuator One-way action roller arm lever 12.5 dia. x 5 Resin roller R20
Frequency 50/60 Hz
Contact form 2NC
Load General load/Micro load
Conduit M20 Number of conduit: 1
Ambient temperature Operating: -30 to 70 ℃ (with no icing)
Ambient humidity 95% RH max.
Permissible operating frequency 30 operations / 1 minute max.
Contact resistance (Initial value) 25 mΩ max.
Insulation resistance 100 MΩ min.
Impulse withstand voltage Between each terminal of the same polarities: 2.5 kV Between each terminal of the different polarities: 4 kV Between each terminal and non-live-metallic part: 6 kV
Durability Electrical: 300,000 operations min. (10 A at 250 VAC), 500,000 operations min. (3 A at 250 VAC) Mechanical: 15,000,000 operations min.
Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
Shock resistance Destruction: 1000 m/s2 Malfunction: 300 m/s2
Pollution degree 3 (EN60947-5-1)
Degree of protection IP67
Classification of protection against electric shock Class II (Double insulation)
Operating Force (OF) Standard value 5 N max.
Release Force (RF) Standard value 0.8 N min.
Pre-Travel (PT) Standard value 4 mm max.
Movement Differential (MD) Standard value 1.5 mm max.
Over-Travel (OT) Standard value 5 mm min.
Operating Position (OP) Standard value 37±0.8 mm
Total Travel (TT) Reference value 9 mm
Direct Opening Force Standard value 20 N min.
Direct Opening Travel Standard value 5.8 mm min.
