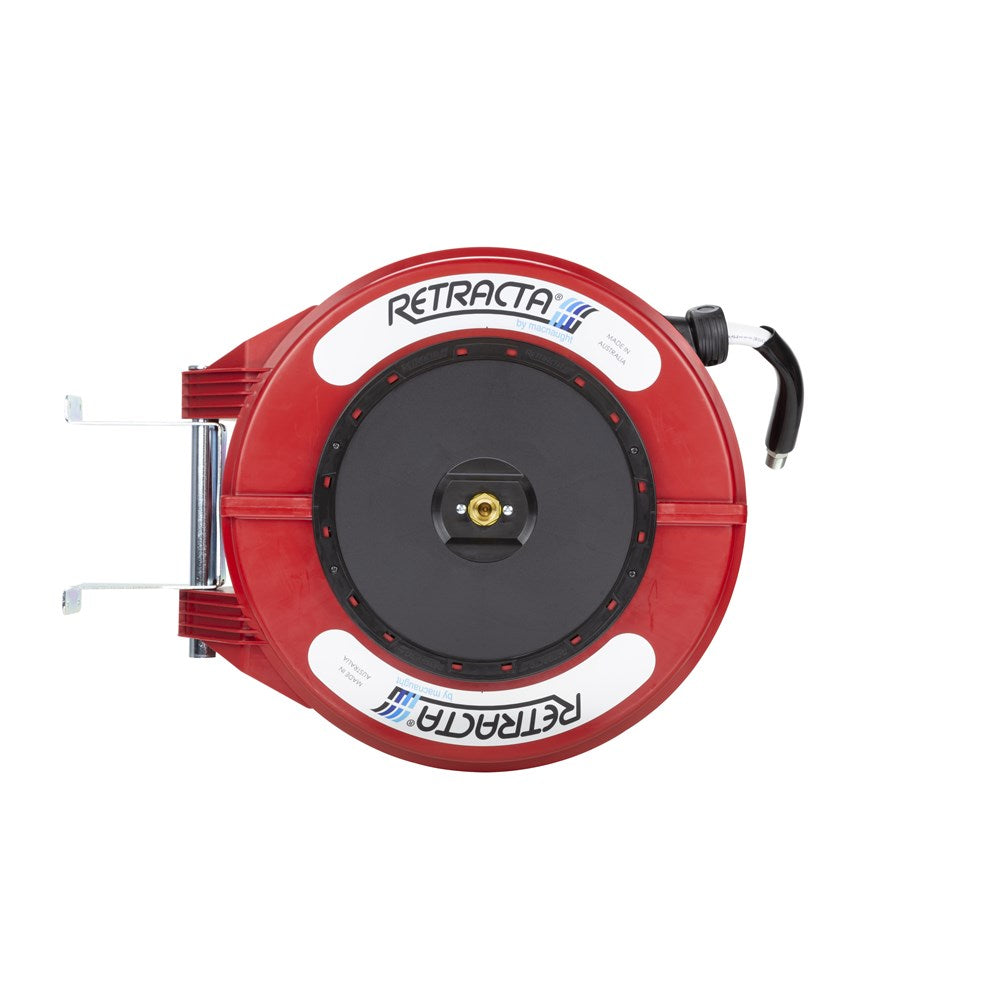

RETRACTA Hot Wash Reel, 12mm x 12m HW2121Macnaught รหัส HW415R-01

INSTRUCTION MANUAL

The High Quality RETRACTA HW2121 Hot Water Hose Reel is a premium quality, strong, reliable reel, constructed using UV stabilised polypropylene, heavy duty rewind spring, quality swivel assembly, 12.5mm x 12m hot wash hose assembly and is supplied complete with mounting bracket and carry handle.

Fitted with a positive spring latch mechanism the hose can be latched every half metre. The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required.

The corrosion and weather resistant construction makes Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.

Package Includes

• RETRACTA HW2121 hot water hose reel
• Carry handle
• Locking plate
• BU100 mounting bracket and pin
• Instruction manual

Features & Benefits

• 10 Year limited warranty
• Impact resistant - Maximum strength for a long service life
• Vertical rib design - For increased strength
• Precision machined swivels - Leak free and smooth operation
• Screwed together - Easily repaired and maintained
• Sealed and lubricated main spring - Virtually maintenance free service life
• Spring latch mechanism - Allows the reel to be fitted in any orientation
• Stainless steel mouth guard - Protects hose and reel casing against wear
• Easy side plate removal - Easy to maintain reel without removal from installation
• Lightweight & portable - Weighs only 12kg
• Spare parts are available

Technical Specifications

• Type: Hot Water reel
• Hose ID: 12.5mm
• Length: 12m
• Maximum working pressure: 200psi (1,400kPa)
• Hose material: reinforced rubber
• Reel color: Red
• Hose color: Red
• Reel Inlet: 3/8” BSP (F)
• Hose outlet: 3/8”BSP (M)
• Weight: 12kg
• Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
• Maximum Temperature 90 deg C

Repair Kits

• RP35-BLACKS: Drum assembly
• BS115VS:  Vitron O'Ring set (for air/water & oil reels)
• RP114A-BLACKS: Latching side plate set
• Z10S: 10mm hose stopper
• Z40S: 12mm hose stopper
