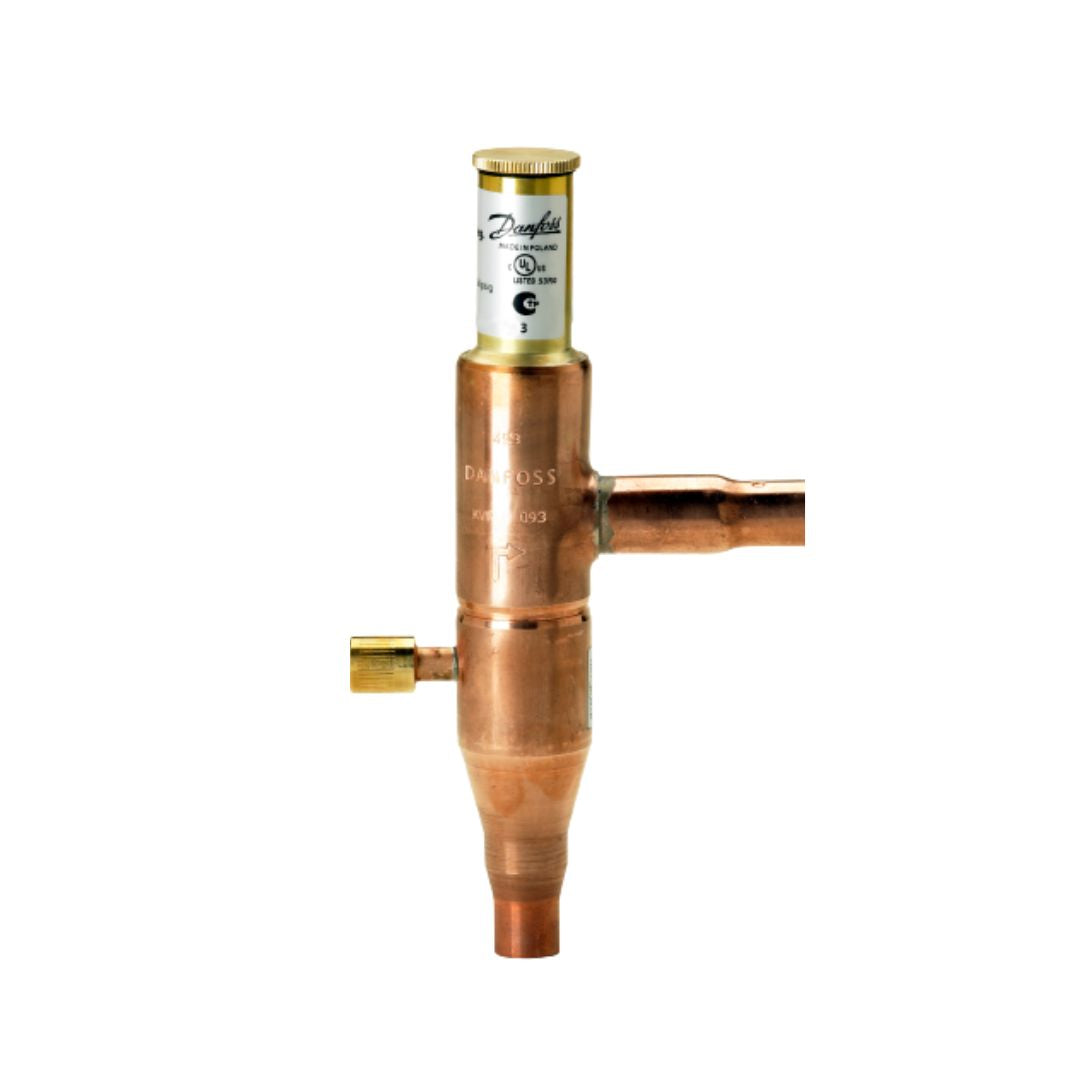

Receiver Pressure Regulator Danfoss, KVD 12 Connection 1/2 lnch Code 034L0173
Receiver Pressure Regulator Danfoss, KVD 12 Connection 1/2 lnch Code 034L0173
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
20,077.97 ฿
ราคาปกติ
ราคาโปรโมชัน
20,077.97 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Receiver Pressure Regulator Danfoss, KVD 12 Connection 1/2 lnch Code 034L0173
Data Sheets :
Product details
| Gross weight | 0.4 Kg |
| Net weight | 0.385 Kg |
| Volume | 1.186 Liter |
| EAN | 5702428411295 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] | 2.02 gal/min |
| Equipment | Schrader valve access port |
| Factory setting [bar] | 10 bar |
| Factory setting [psig] | 145 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 1.75 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Receiver pressure regulator |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1270,R134a,R22,R290,R404A R407A,R407C,R407F,R422B,R422D R448A,R449A,R450A,R452A,R507A R513A,R600,R600a,R407H,R449B R454C,R455A,R515B,R516A,R1234yf R454A,R1234ze(E) |
| Regulation range [bar] [max] | 20 bar |
| Regulation range [bar] [min] | 3 bar |
| Regulation range [psig] Pe [max] | 290 psig |
| Regulation range [psig] Pe [min] | 44 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVD 12 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
