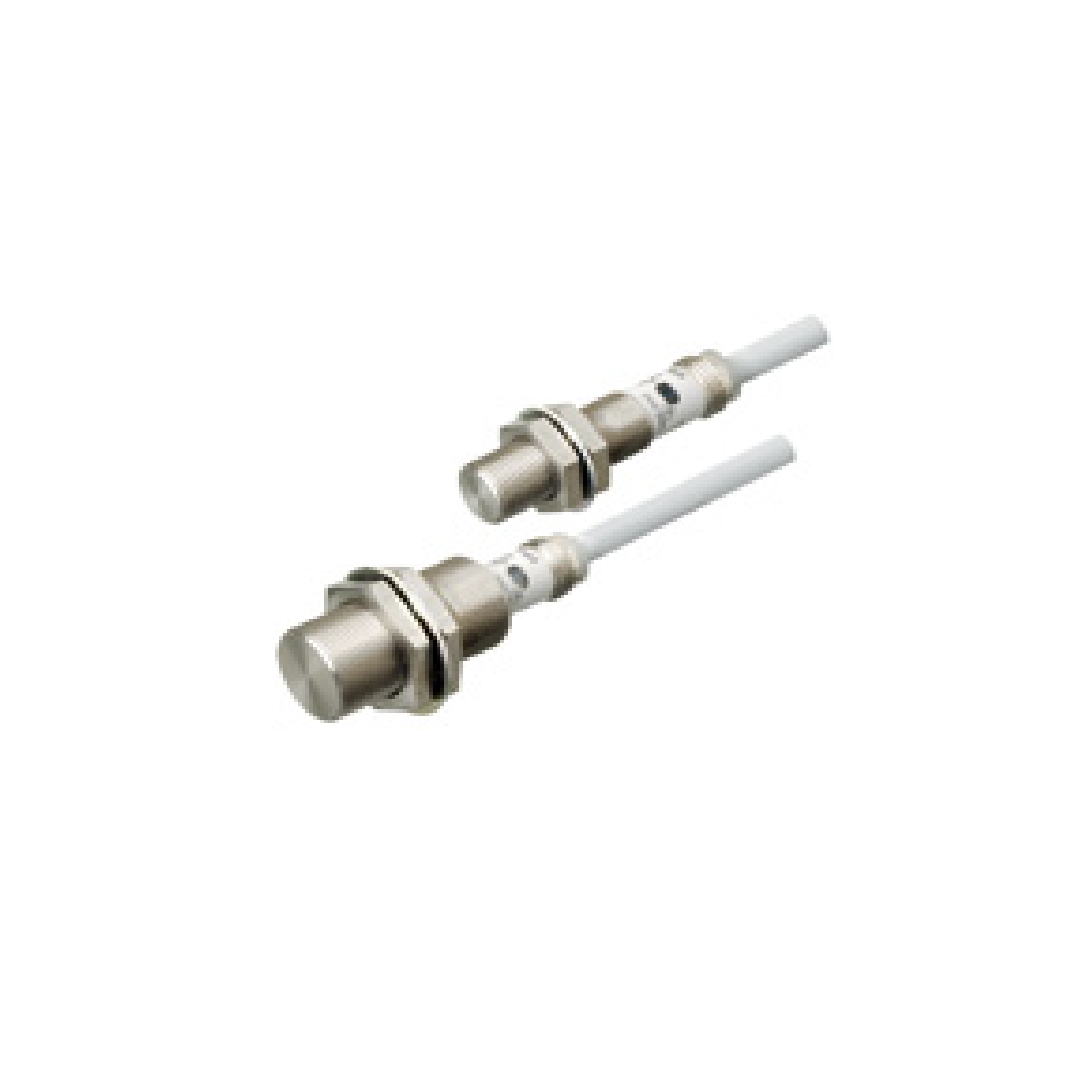

Proximity Sensor OMRON E2B-S08LN04-WP-B2 5M
Proximity Sensor OMRON E2B-S08LN04-WP-B2 5M
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,689.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,689.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Proximity Sensor OMRON E2B-S08LN04-WP-B2 5M
E2B Stainless Steel Long Body
The E2B range of stainless steel long bodied cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.
IP67 rated for protection in wet environments
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
Note
See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors
Specifications
| คุณสมบัติ | Value |
| Sensor Technology | Inductive |
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | PNP Normally Closed |
| Detection Range | 4 mm |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Supply Voltage | 12 → 24 V dc |
| Length | 49mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non-Flush |
| Switching Current | 200 mA |
| Housing Material | Stainless Steel |
| Maximum Switching Frequency | 1kHz |
| Shielding | Unshielded |
| Maximum Operating Temperature | +70°C |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
