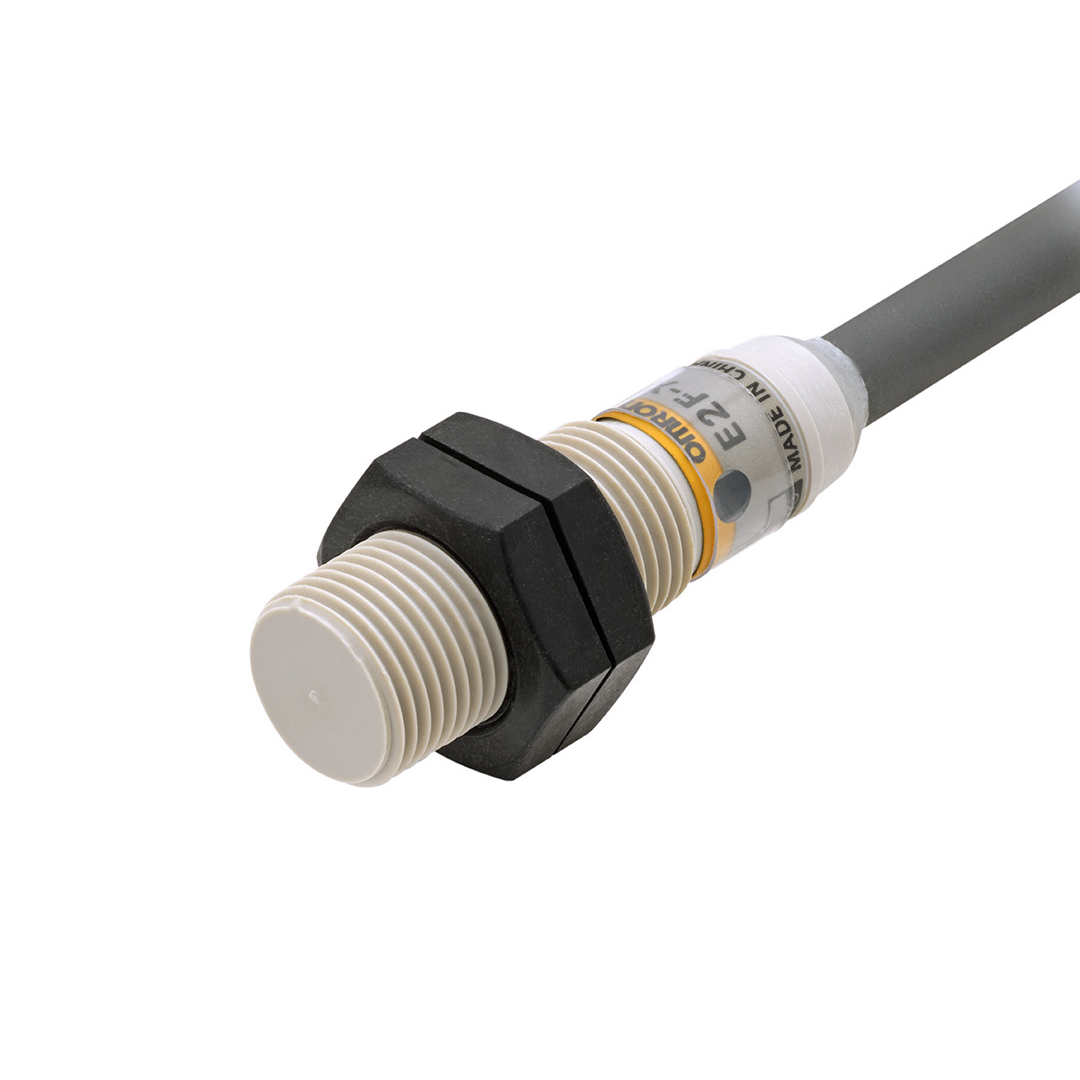

Proximity Sensor OMRON E2B-M12KN08-WP-B2 2M
Proximity Sensor OMRON E2B-M12KN08-WP-B2 2M
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,103.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,103.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Proximity Sensor OMRON E2B-M12KN08-WP-B2 2M
E2B Brass Standard Length
The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.
Features and benefits
- IP67 rated for protection in wet environments
- 360 ° visible LED for operation control
- Pre-wired and connector variations available
- Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
- Standard temperature range –25°C to 70°C
Note
See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors
Specifications
| คุณสมบัติ | Value |
| Sensor Technology | Inductive |
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP Normally Closed |
| Detection Range | 8 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 24 V dc |
| IP Rating | IP67 |
| Length | 30mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non-Flush |
| Switching Current | 200 mA |
| Housing Material | Brass |
| Maximum Switching Frequency | 800Hz |
| Maximum Operating Temperature | +70°C |
| Shielding | Unshielded |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
