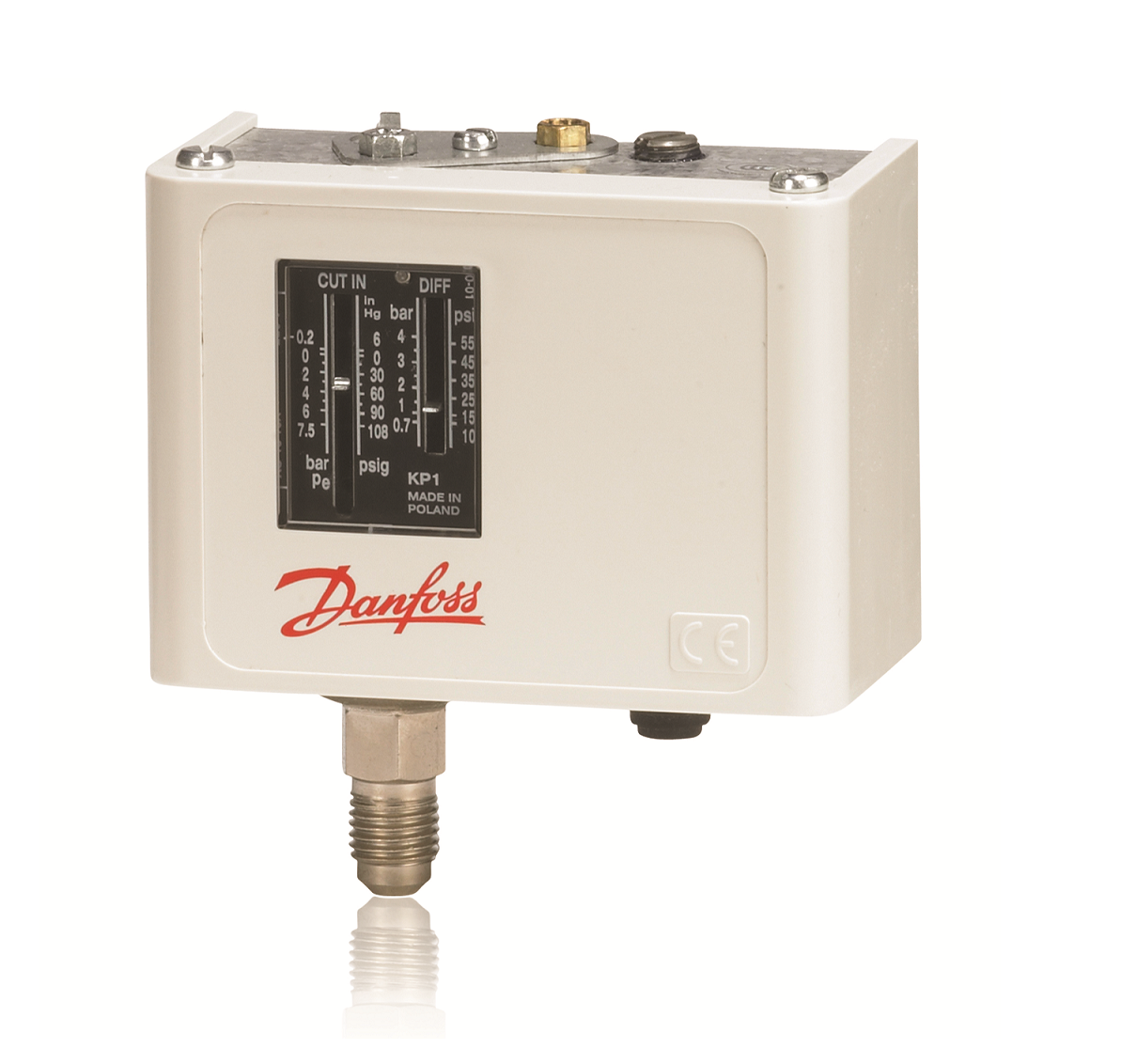

Pressure switch, KP1 เพรสเชอร์สวิทซ์ Danfoss 060-537866
Pressure switch, KP1 เพรสเชอร์สวิทซ์ Danfoss 060-537866
DANFOSS
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
2,168.66 ฿
ราคาปกติ
ราคาโปรโมชัน
2,168.66 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Pressure switch, KP1 เพรสเชอร์สวิทซ์ Danfoss 060-537866
Pressure switch, KP1 เพรสเชอร์สวิทซ์ Danfoss 060-537866 เพรสเชอร์สวิทซ์รุ่นกะทัดรัดที่เปี่ยมไปด้วยศักยภาพในการควบคุมแรงดันอย่างมืออาชีพ อุปกรณ์นี้ออกแบบมาเพื่อระบบทำความเย็นที่ต้องการเสถียรภาพและความไว้วางใจได้ กลไกทำงานได้อย่างสมูทด้วยระบบ snap-action ช่วยยืดอายุการใช้งานของหน้าคอนแทค การออกแบบจุดเชื่อมต่อต่างๆ เอื้อต่อการจัดสายไฟให้เป็นระเบียบ ทนทานต่อการสึกกร่อนจากสารทำความเย็น ช่วยเสริมสร้างความมั่นใจให้ระบบสามารถทำงานด้วยประสิทธิภาพสูงสุด
ดูรายละเอียดทั้งหมด
คุณสมบัติ
คุณสมบัติ
- โมเดลที่ได้รับความนิยมสูงในการคุมแรงดันต่ำของระบบทำความเย็นห้องเย็น
- กลไกลดแรงเสียดทานภายในช่วยให้การทำงานมีความเสถียรในระยะยาว
- รอยเชื่อมต่อระหว่างตัวเรือนและท่อรับความดันมีความแข็งแรงเป็นพิเศษ
- รองรับการใช้งานร่วมกับสารทำความเย็นที่เป็นมิตรต่อชั้นบรรยากาศ
- ติดตั้งง่ายด้วยเกลียวหัวต่อที่ได้มาตรฐาน ไม่ต้องแปลงข้อต่อเพิ่ม
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
- สวิตช์ตัดแรงดันต่ำ (KP1) โมเดลนี้โดดเด่นด้วยหัวต่อสายไฟแบบ Spade terminals ประหยัดเวลาขันน็อต
- ใช้ในงานปกป้องระบบทำความเย็นจากการเกิดน้ำแข็งเกาะคอยล์เย็น (Evaporator icing)
- ตั้งค่าแรงดันจุดตัดการทำงานได้ละเอียดระดับทศนิยมด้วยสกรูชนิดเกลียวละเอียดพิเศษ
- แผ่นสูญญากาศ (Bellow) ภายในผลิตจากแผ่นบรอนซ์ฟอสเฟอร์เพื่อความไวต่อสัมผัสแรงดันสูงสุด
- ทนกระแสลัดวงจรชั่วขณะได้ดีเยี่ยม โดยหน้าคอนแทคไม่เกิดการหลอมละลายติดกัน
| Gross weight | 0.334 Kilogram |
| Net weight | 0.299 Kilogram |
| Volume | 1.125 Liter |
| EAN | 5702428047999 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -13 °F |
| Application note | Not applicable for liquid line |
| Approval |
BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PED PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating |
AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contain batteries | No |
| Differential [bar] [max] | 4 bar |
| Differential [bar] [min] | 0.7 bar |
| Differential [psi] [max] | 58 psi |
| Differential [psi] [min] | 10 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties |
Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties |
Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP44 |
| Enclosure rating Nema (~) | 2 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Identical product | 060-111066 |
| In scope of WEEE | Yes |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 20 bar |
| Max. Working Pressure [bar] | 46.5 bar |
| Max. Working Pressure [psig] | 675 psig |
| Oil free refrigerants |
R134a R513A R515B |
| Packing format | Industrial pack |
| PED category | IV |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
R113 R1234yf R1234yz R124 R134a R22 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R454C R455A R507A R513A R515B R744 R1234ze(E) |
| Regulation range [bar] Pe [max] | 42 bar |
| Regulation range [bar] Pe [min] | 8 bar |
| Regulation range [psig] Pe [max] | 610 psig |
| Regulation range [psig] Pe [min] | 116 psig |
| Reset function | Auto |
| SCIP dossier no. | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| SCIP dossier product name | KP/KPI pressure switch |
| Serviceable | No |
| Type | KP6W |
| UK RoHS compliance | Yes |
| UL approval file name | E31024 |
| UL approved refrigerants |
R113 R124 R134a R22 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B R744 |
| UL evaluated | Yes |
