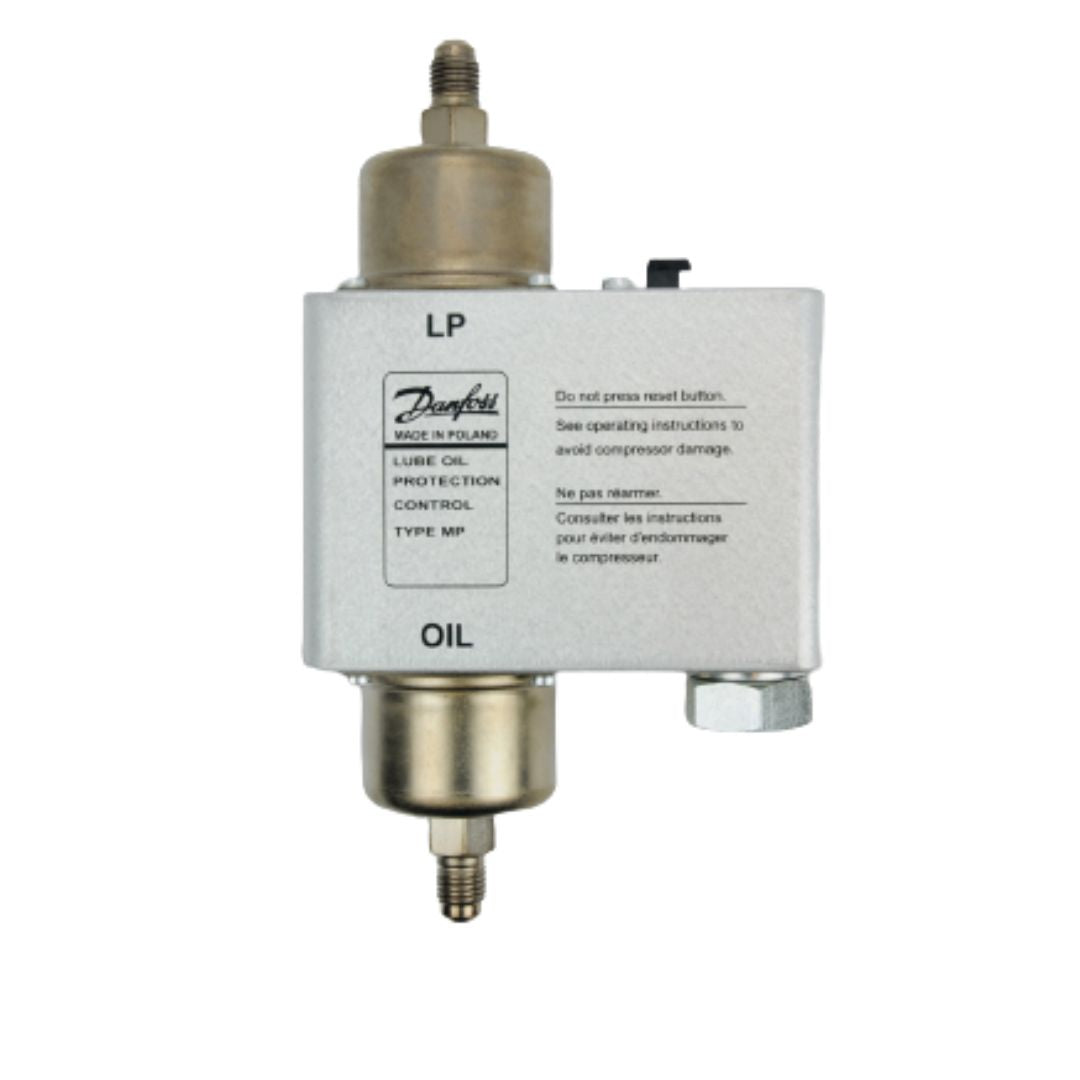

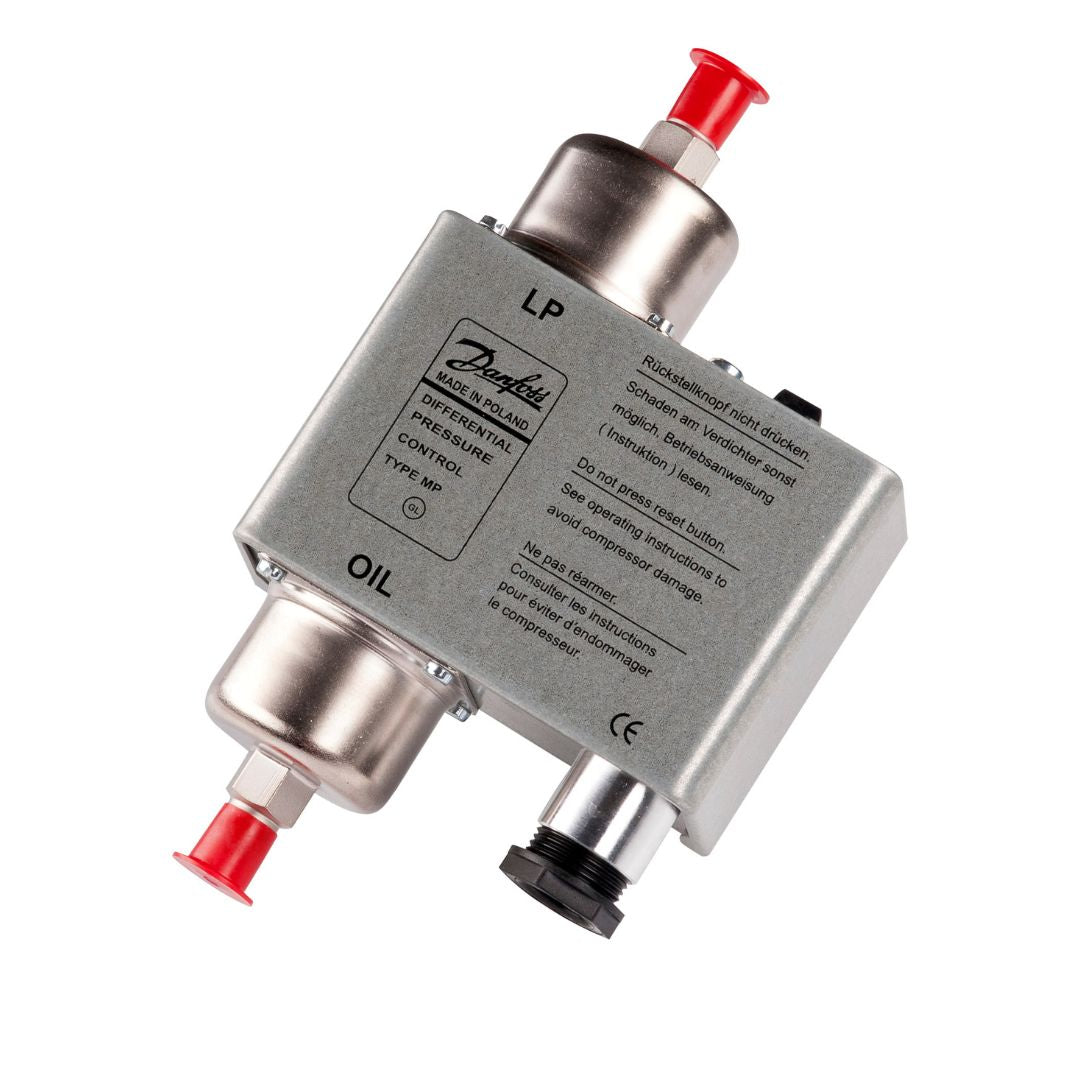

MP54 Diff. Pressure Control
Product details
| Gross weight | 0.73 kg |
| Net weight | 0.65 kg |
| Adjustment | Cut out for falling pressure |
| mb. Temp. Note | Bellows max 100 °C/212 °F |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Ammonia application | No |
| Approval | CCC,CE,DNV,EAC,GL,KR,LR, LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS,China TYSK,LLC, CDC, EURO-TYSK,UKCA |
| Contact differential [bar] | 0.2 bar |
| Contact function | SPDT |
| Contact rating | AC15=2 A, 250 V
DC13=0.2 A, 250 V |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2
Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2 |
| Enclosure rating IP | IP20 |
| Equipment | Thermal time relay |
| Fixed Differential [bar] | 0.9 bar |
| Fixed Differential [psi] | 13 psi |
| Max. test pressure [bar] | Pe 22 bar |
| Max. test pressure [psig] | 319 psig |
| EAN | 5702428365475 |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Operat. range LP side [bar] Pe [Max] | 12 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 175 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Packing format | -1 bar |
| Operat. range LP side [psig]Pe [Max] | Multi pack |
| Pressure connection size | 1/4 in |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Product accessories | Generic accessories |
| Product description Diff. | Pressure Switch |
| Product family name | MP |
| Product group | Switches and thermostats |
| Product name | Differential pressure switch |
| Quantity per packing format | 21 pc |
| REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
| Refrigerants | R11,R113,R12,R124,R134a
R22,R404A,R407A,R407C,R407F R407H,R422B,R422D,R438A,R448A R449A,R449B,R450A,R452AR507C,R513A,R515B |
| Relay release time [s] | 60 " |
| Reset function | Manual Min |
| Serviceable | No |
| Type | MP54 |
| UL approved refrigerants | R11,R113,R12,R124,R134a,R22
R404A,R407A,R407C,R407F,R407H R422B,R422D,R438A,R448A,R449A R449B,R450A,R452A,R507C,R513A,R515B |
