Product size
Product details
| Gross weight | 0.984 Kg |
| Net weight | 0.888 Kg |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | BV,CCC,CE,DNV,EAC,GL,KR,LR, LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS,China TYSK,LLC, CDC, EURO-TYSK,UKCA |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] [Max] | 1.3 bar |
| Differential [bar] [Min] | 0.33 bar |
| Differential [psi] [Max] | 4.8 psi |
| Differential [psi] [Min] | 7.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Max. test pressure [bar] | Pe 25 bar |
| Max. test pressure [psig] | 363 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 320 psig |
| EAN | 5702428517416 |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |

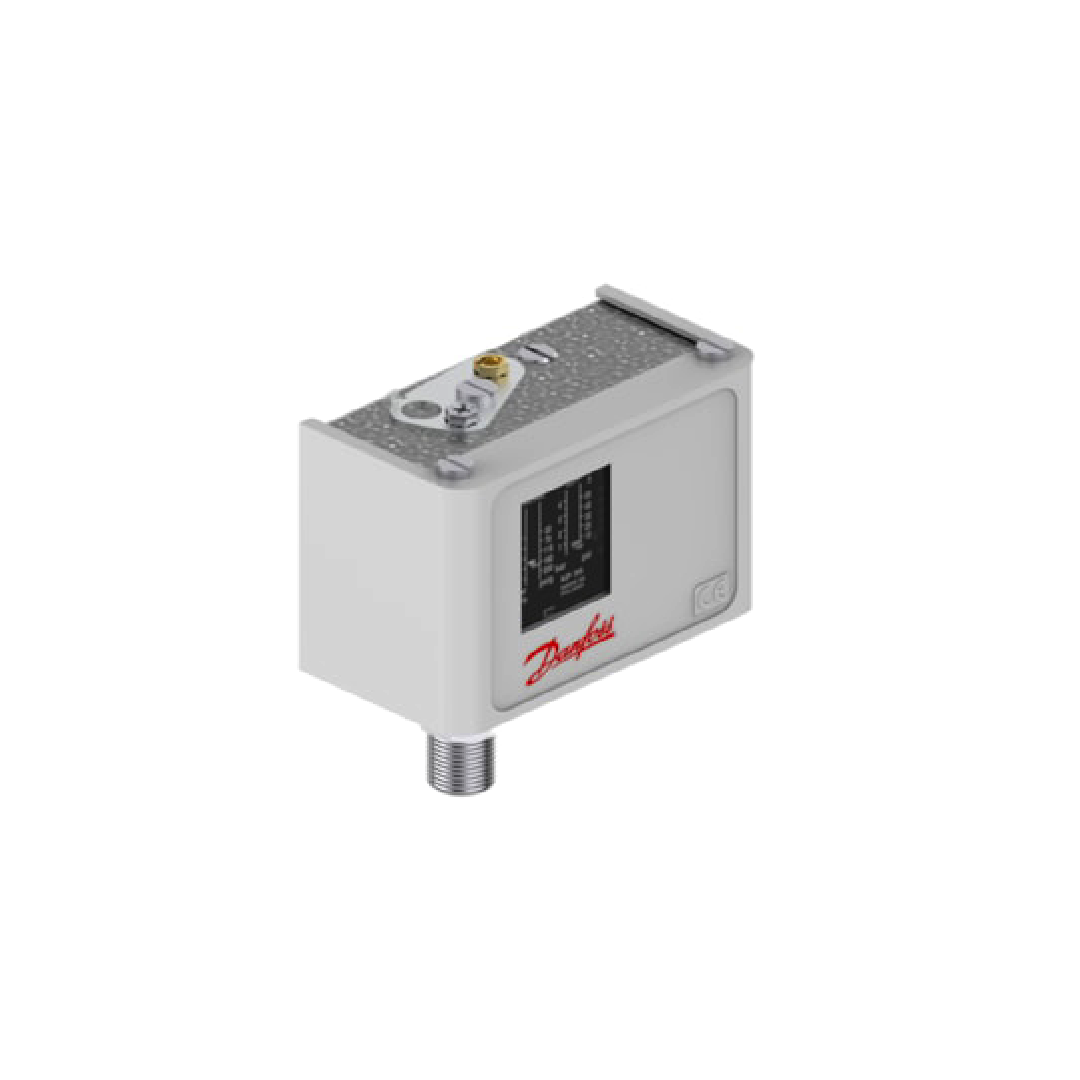

| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
| Refrigerants | R11,R113,R12,R124,R134a R22,R404A,R407A,R407C,R407F R407H,R422B,R422D,R438A,R507C |
| Regulation range [bar] Pe [Max] | 5 bar |
| Regulation range [bar] Pe [Min] | -0.8 bar Reset function Auto |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT1 |
| UL approved refrigerants | R11,R113,R12,R124,R134a,R22 R404A,R407A,R407C,R407F R407H,R422B,R422D,R438A,R507C |
