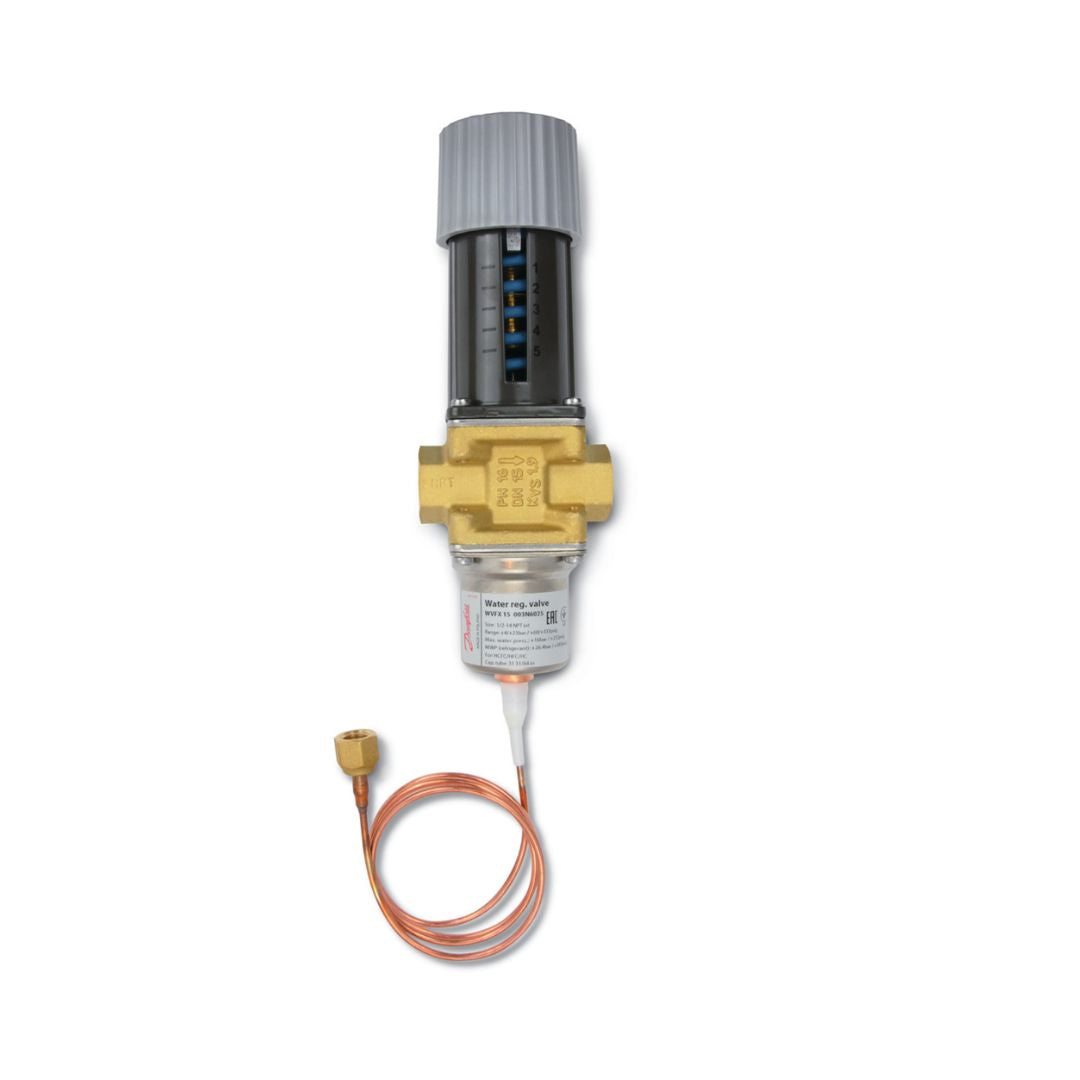

Pressure Operated Water Valve Danfoss WVFX 20, 4.00 bar - 23.00 bar, 3.400 m³/h Connection G 3/4 lnch Code 003N3105
Pressure Operated Water Valve Danfoss WVFX 20, 4.00 bar - 23.00 bar, 3.400 m³/h Connection G 3/4 lnch Code 003N3105
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
13,348.95 ฿
ราคาปกติ
ราคาโปรโมชัน
13,348.95 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Pressure Operated Water Valve Danfoss WVFX 20, 4.00 bar - 23.00 bar, 3.400 m³/h Connection G 3/4 lnch Code 003N3105
Data Sheets :
Product details
| Gross weight | 1.406 Kg |
| Net weight | 1.225 Kg |
| Volume | 4.03 Liter |
| EAN | 5702422035886 |
| Approval | C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| Connection Internal/External | Internal |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection size [in] | 45019 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Connection type (refrigerant) | SAE flare |
| Control pressure range [bar] [max] | 23 bar |
| Control pressure range [bar] [min] | 4 bar |
| Cv value [gal/min] | 3.9 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| Kv value [m³/h] | 3.4 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 29 bar |
| Max.test press.(refrig.)[psig] | 420.6 psig |
| Media | Fresh water Neutral brine |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| MWP (refrigerant) [bar] | 26.4 bar |
| Oil free refrigerants | R513A |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 4/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product group | Water regulating valves |
| Product Name Description | Pressure operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R407H,R449B,R454C R455A,R515B,R516A,R454A |
| SCIP dossier no. | f7d782f1-04df-4c40-bfe2-ea3a06dce79f |
| SCIP dossier product name | WVS/WVTS |
| Serviceable | Water valve spare parts |
| Type | WVFX 20 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
