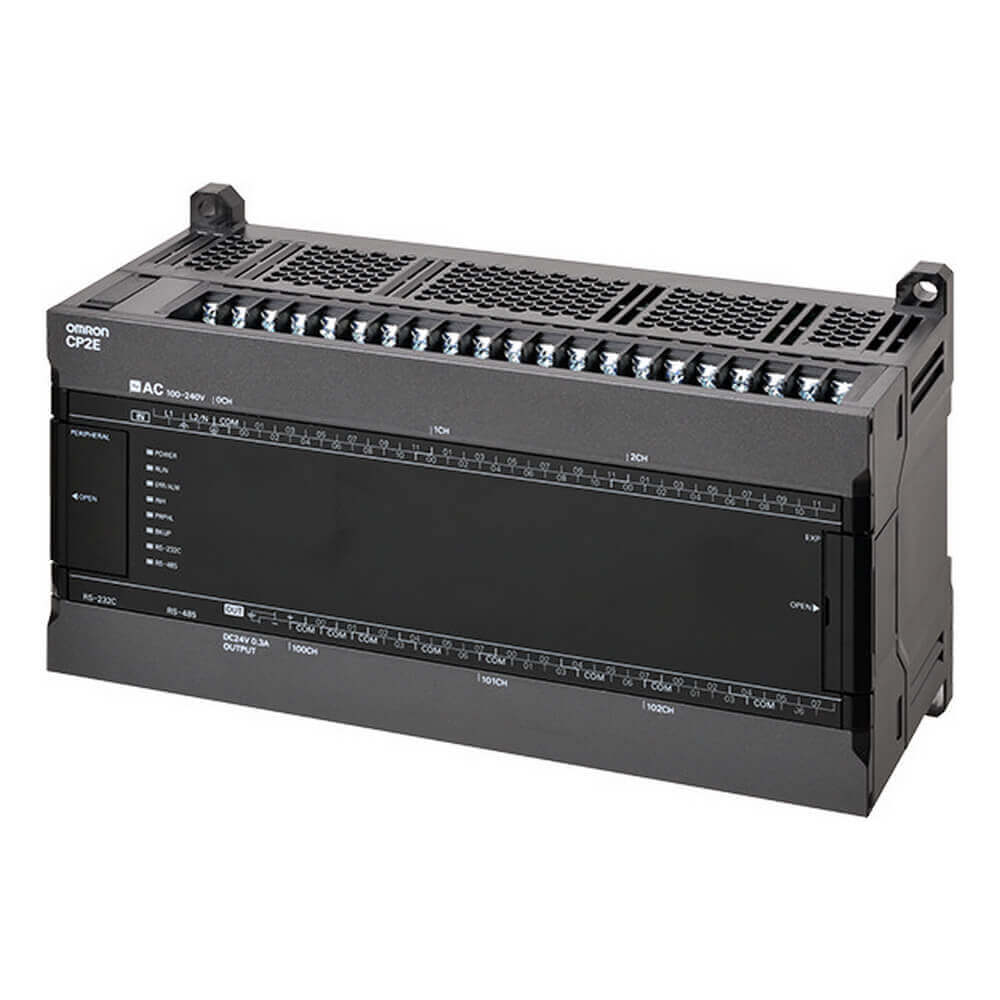

PLC OMRON CP2E-N20DT1-D
PLC OMRON CP2E-N20DT1-D
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
16,905.00 ฿
ราคาปกติ
ราคาโปรโมชัน
16,905.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด PLC OMRON CP2E-N20DT1-D
CP2E series compact PLC - Network type,12 DI, 8DO,PNP output,Power supply 24 VDC,10 kStep Program memory
Two built-in Ethernet ports with Ethernet switching function:
Ready for Machine to Machine communication (CP2E-N type)
Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
Four-axis positioning function with linear interpolation (CP2E-N type)
Battery-free operation and backup reduce maintenance
Function blocks and structured text improve programming efficiency
Operating temperature range from -20 to 60 °C for reliable use in special applications
Input/output terminal LED indicators for quick troubleshooting
Ready for Machine to Machine communication (CP2E-N type)
Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
Four-axis positioning function with linear interpolation (CP2E-N type)
Battery-free operation and backup reduce maintenance
Function blocks and structured text improve programming efficiency
Operating temperature range from -20 to 60 °C for reliable use in special applications
Input/output terminal LED indicators for quick troubleshooting
Specifications
| คุณสมบัติ | Value |
| Manufacturer Series | CP2E |
| Number of Inputs | 12 |
| Output Type | Transistor |
| For Use With | CP2E Series |
| Input Type | Digital |
| Number of Digital Inputs | 12 |
| Number of Outputs | 8 |
| Voltage Category | 24 V dc |
| Network Type | Ethernet |
| Number of Digital Outputs | 8 |
| Interface | RS-485 |
| Battery Backup | Yes |
| Mounting Type | Panel Mount |
| Programming Language Used | Ladder Diagram |
| Width | 80mm |
| Length | 86mm |
| Minimum Operating Temperature | -20°C |
| Depth | 110mm |
| Program Capacity | 8 kB |
| Display Included | Yes |
| Maximum Operating Temperature | +60°C |
| Dimensions | 86 x 80 x 110 mm |
