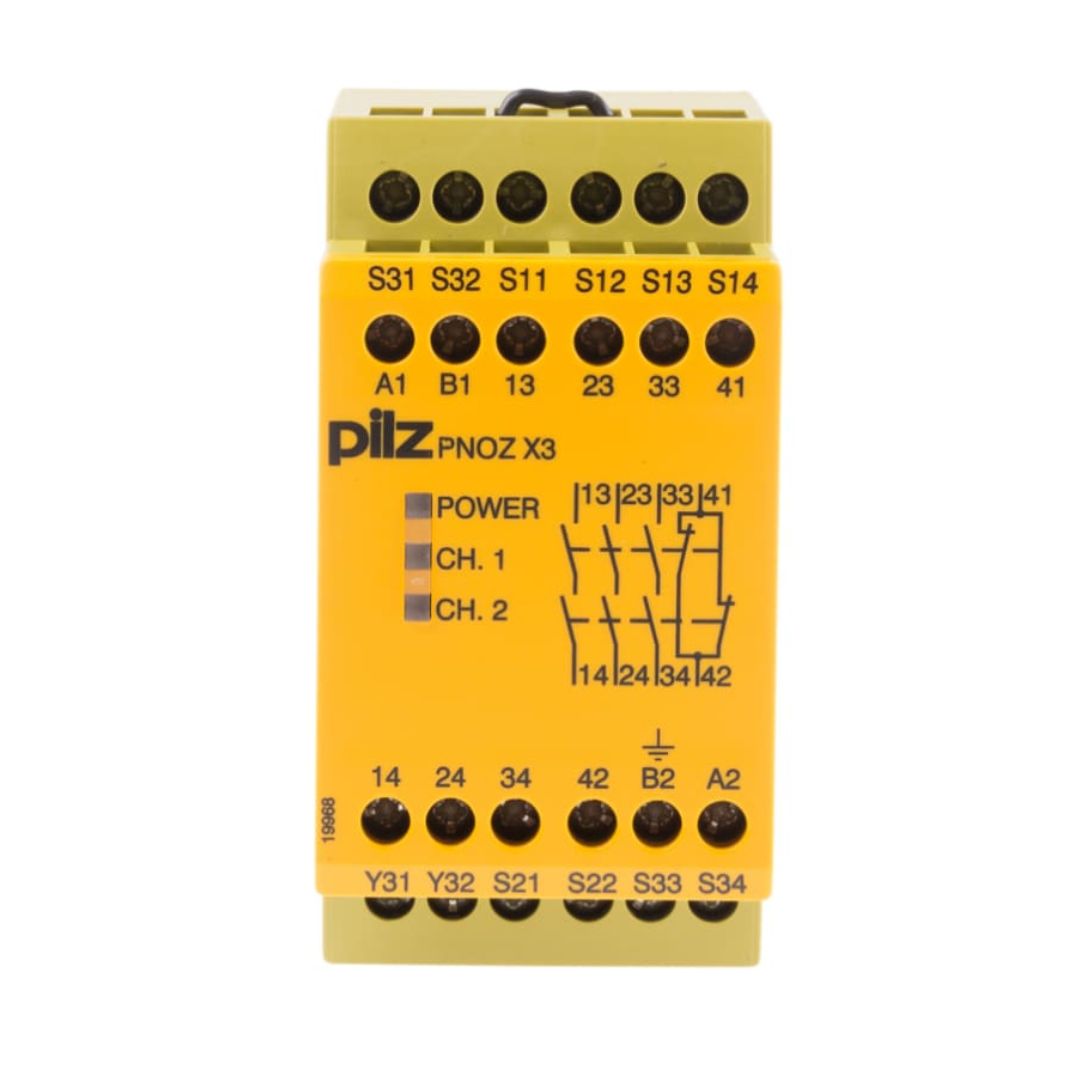

Safety Relay Pilz PNOZ X3 24VAC 24VDC 3n/o 1n/c 1so Code774310

Technical Data Sheets :

Additional Features

• Increase the number of available instantaneous safety contacts by connecting a contact expansion module or external contactor

Features and benefits

• LED indicator statuses to support switching channel status between 1 or 2 signals & also for monitoring the supply voltage currently in the relay.
• Semiconductor output signals: switch status channel 1 / 2
• 3 safety contacts and 1 auxiliary contact
• Several connection outputs & status indicators
• Your opening and closing of the safety function relays is tested automatically within each on-off cycle.
• A monitored manual reset is available in this unit.
• DIN rail mounting as standard

Safety features

• The circuit is redundant with built in self-monitoring.
• Reliable X3 functionality means your safety function remains effective even in the event of component failure
• The transformer is short circuit proof and an electronic fuse is used on a DC supply.

Applications

• Emergency stop buttons
• Safety gates

Technical safety parameters

• EN 60204-1
• EN 60947-5-1
• VDE 0113-1

Approvals

• CE, cULus Listed, TÜV, KOSHA, CCC.

Features / Specifications

Block Diagram

Dimensions
