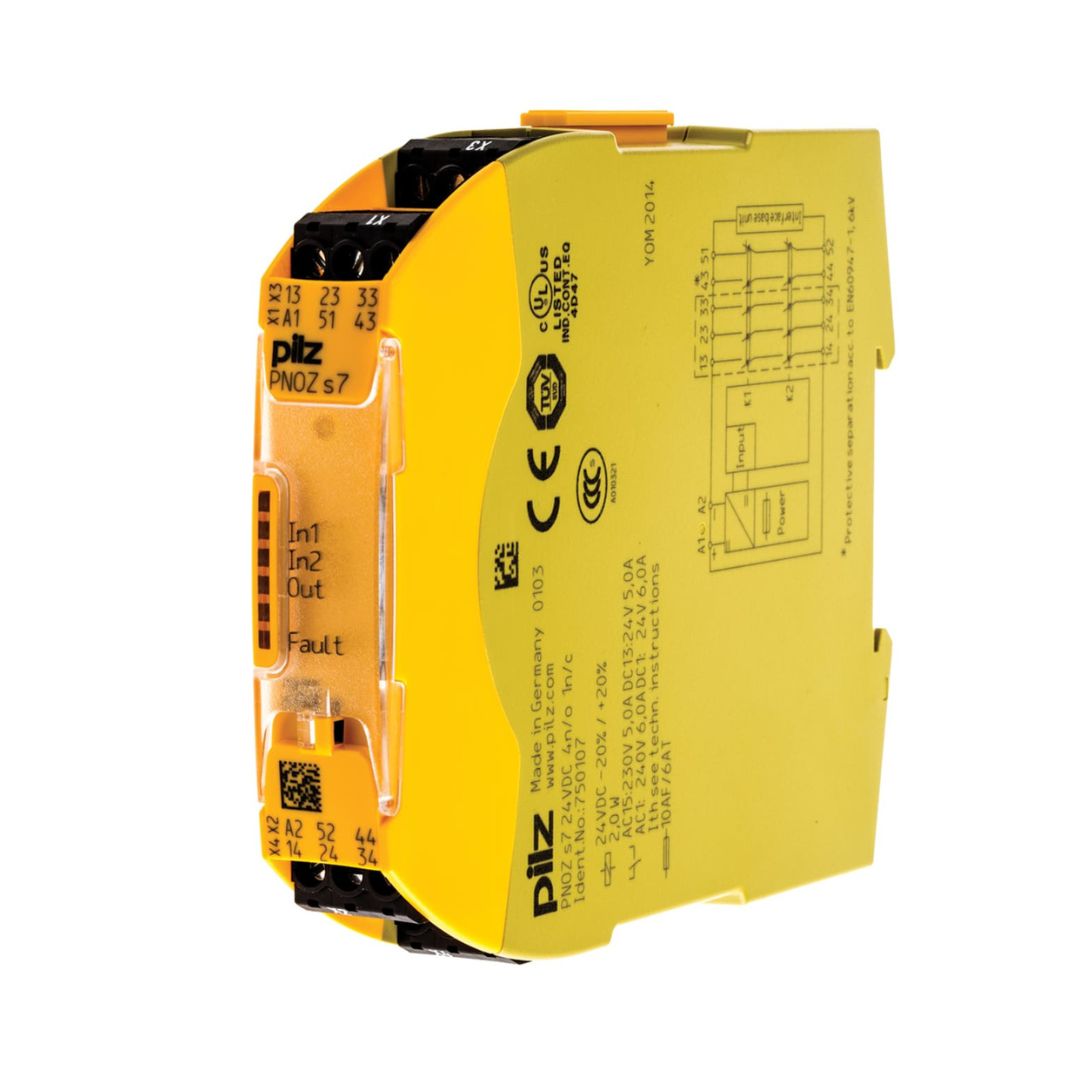

Safety Relay Pilz PNOZ s7 24VDC 4 n/o 1 n/cCode 750107

Technical Data Sheets :

Pilz Contact Expansion Module

• The Pilz PNOZsigma series contact expansion module has 4 safety contacts(NO) and 1 auxiliary contact(NC).
• The contact expansion module expands an existing circuit.
  As the output relays are monitored via the base units feedback loop,
  the safety function on the existing circuit are transferred to the contact expansion module.
• Safety function remains effective in case of component failure. It has a 24VDC supply voltage and has 5 outputs.
• It has a power rating of 2W and is available in a screw terminal type.

Features and Benefits

• DIN rail mounting
• The extension blocks provide reinforcement and increase the number of safety contacts on a base device
• The contact extension block expands an existing electrical circuit.
• Safety is still guaranteed, even if a component fails
• Removable terminals with connection via spring terminals
• Operating temperature ranges between -10°C and 55°C
• LED indicator for channel 1, channel 2, switch status for safety contacts and error

Certifications

• EN60204-1
• EN62061
• EN954-1
• VDE0113-1
• CSA certified
• UL listed
• TUV certified
• CCC certified

Features / Specifications
