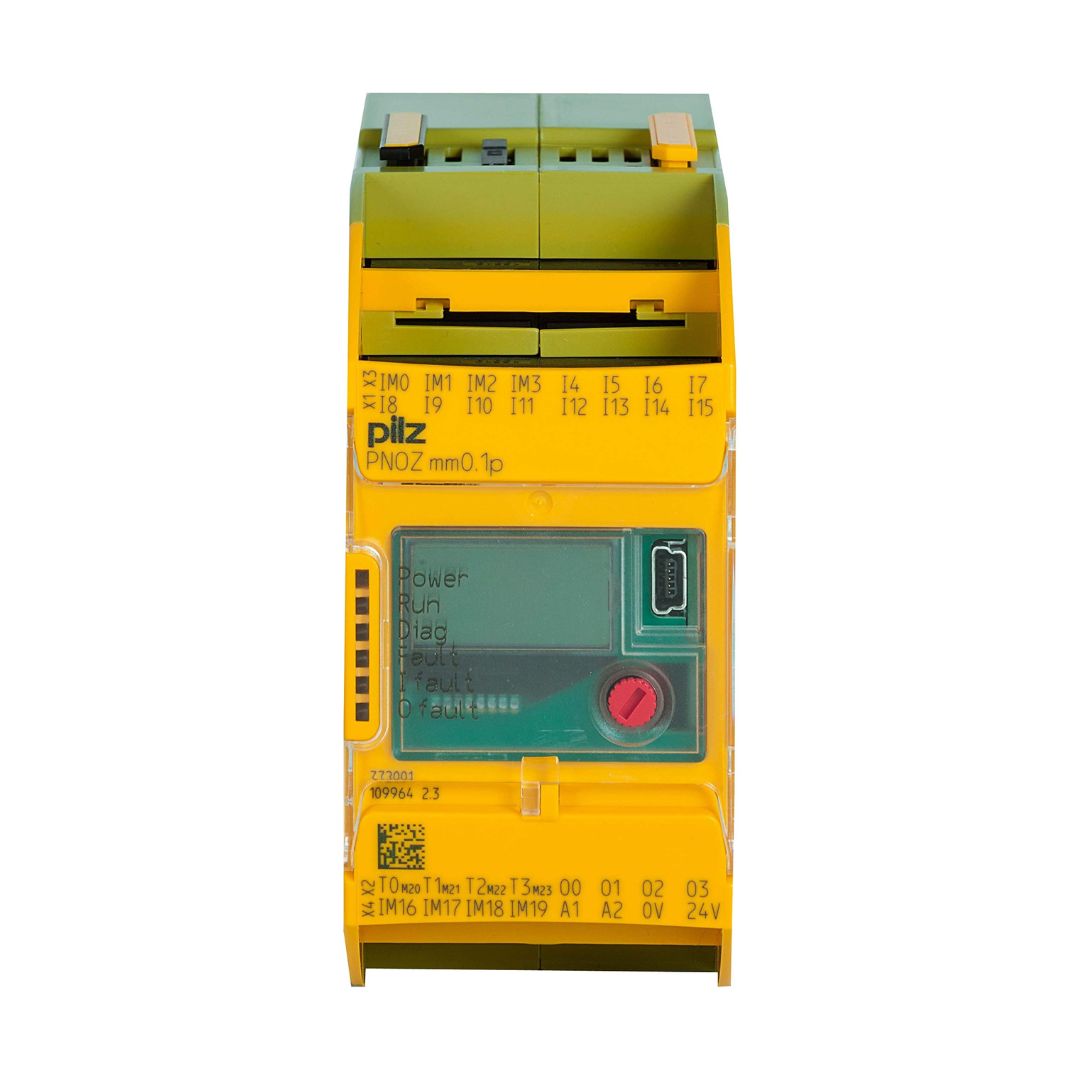

Safety Relay Pilz PNOZ mm0.1p Code772001

Technical Data Sheets :

Pilz Safety Controller

• The Pilz PNOZmulti mini series is configurable safety relay with 12 safety inputs.
• It is the latest device with an integral LCD display that provides status information and diagnostic messages.
• This safety controller has all the functions of the established PNOZmulti is only a space-saving 45mm wide.
• A major advantage of this relay is that all required functions are configured directly via a PC running the PNOZmulti.
• The configurator software, instead of relying on wiring together different safety relays.

Features and Benefits

• 12 safe semiconductor outputs
• 4 test pulse outputs
• LCD display for information and diagnostics
• USB configuration interface
• Can be configured using the PNOZmulti configurator

Certifications

• UL listed
• EC certified
• TÜV certified
• BG certified
• CCC certified

Features / Specifications

Block Diagram

Dimensions
