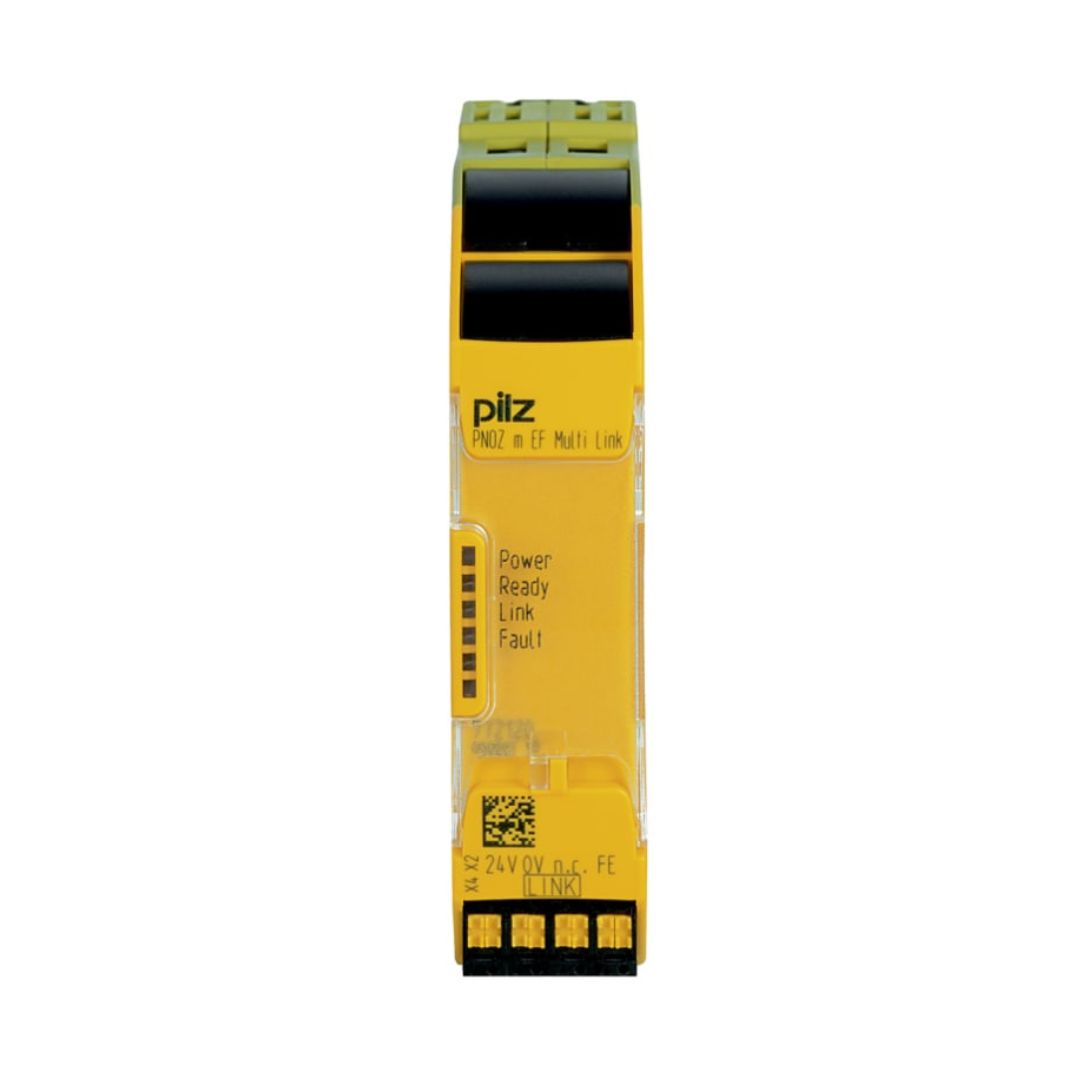

Safety Relay Pilz PNOZ m EF Multi Link Code 772120

Technical Data Sheets :

PNOZmulti 2 Multi Link Module

• The PNOZ m EF Multi Link Module safely connects two PNOZmulti 2 base units.

Features and Benefits

• Connects two PNOZmulti 2 base units
• Can be configured in the PNOZmulti Configurator
• Point-to-point connection via 4-core shielded and twisted-pair cable
  32 virtual inputs and 32 virtual outputs
• Status indicators
• Maximum of 4 PNOZ m EF Multi modules can connect to the base unit
• LEDs for operating state, errors and connection status

Standards

• EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN 62061 SIL CL 3; IEC 61511 SIL 3.

Approvals

• CE, cULus Listed, TÜV, BG, CCC.
• Supplied with Screw terminals.

Features / Specifications
