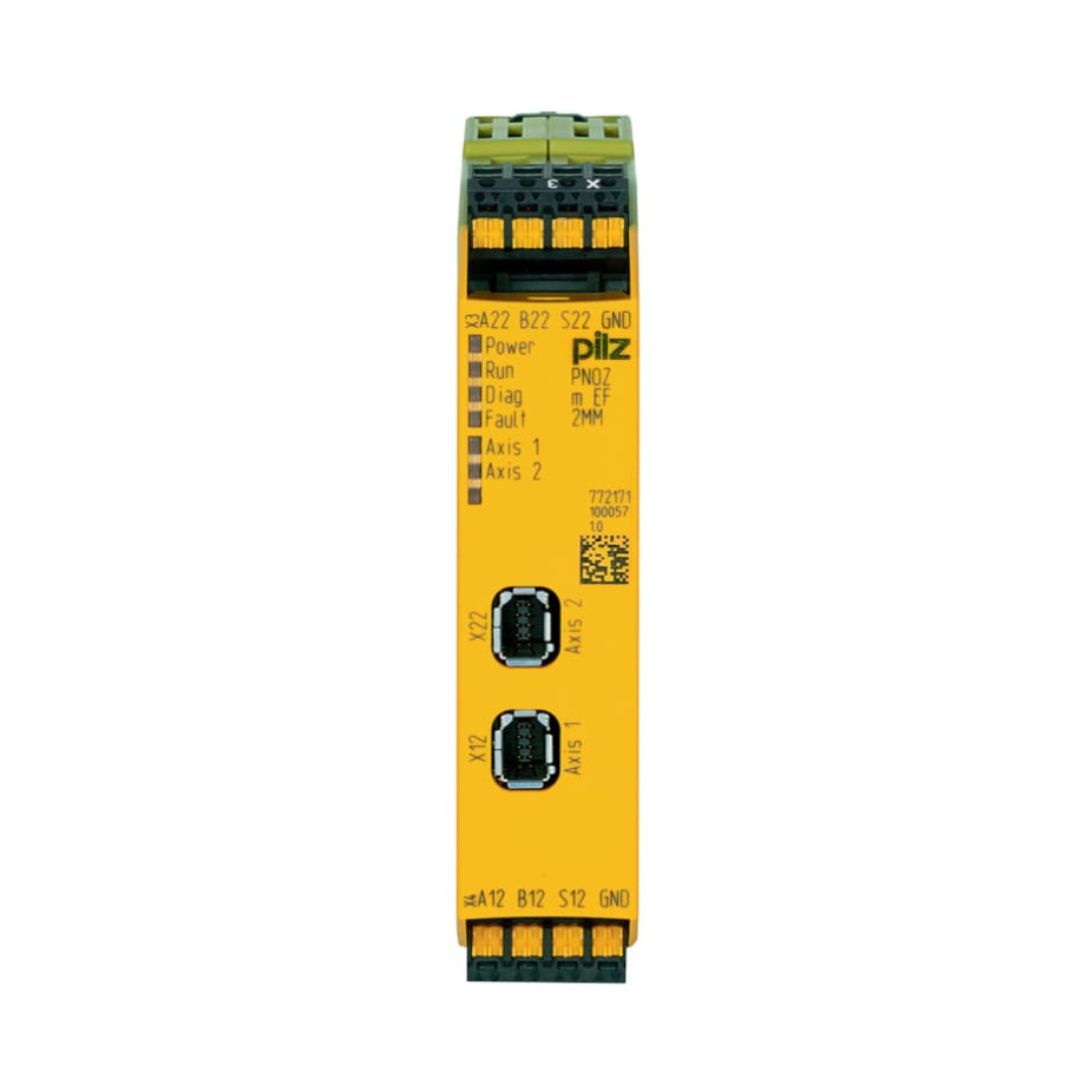

Safety Relay Pilz PNOZ m EF 2MM Code 772171

Technical Data Sheets :

PNOZmulti 2 Motion Monitoring Modules

• The PNOZ m EF *MM expansion module connects to a base unit from the PNOZmulti 2 configurable control system.
• Two models are available: PNOZ m EF 1MM provides safe monitoring of one axis and PNOZ m EF 2MM provides safe monitoring of two independent axes.

Features and Benefits

• Can be configured in the PNOZmulti Configurator
• Monitoring of 1 axis, stock no. 918-6617
• Monitoring of two independent axes, stock no. 918-6611
• Measured value recorded by proximity switch and encoder
• LED display for supply voltage, diagnostics, axis status and errors
Support the safe drive function in accordance with EN 61800-5-2

Applications

• Safe speed monitoring (SSM)
• Safe speed range monitoring (SSRM)
• Safe direction of movement monitoring (SDIM)
• Safe operating stop monitoring (SOSM)
• Analogue voltage (track S)

Standards

• EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3; IEC 61511 SIL 3.

Approvals

• CE, cULus Listed, TÜV, BG, CCC.
• Supplied with Screw terminals.
