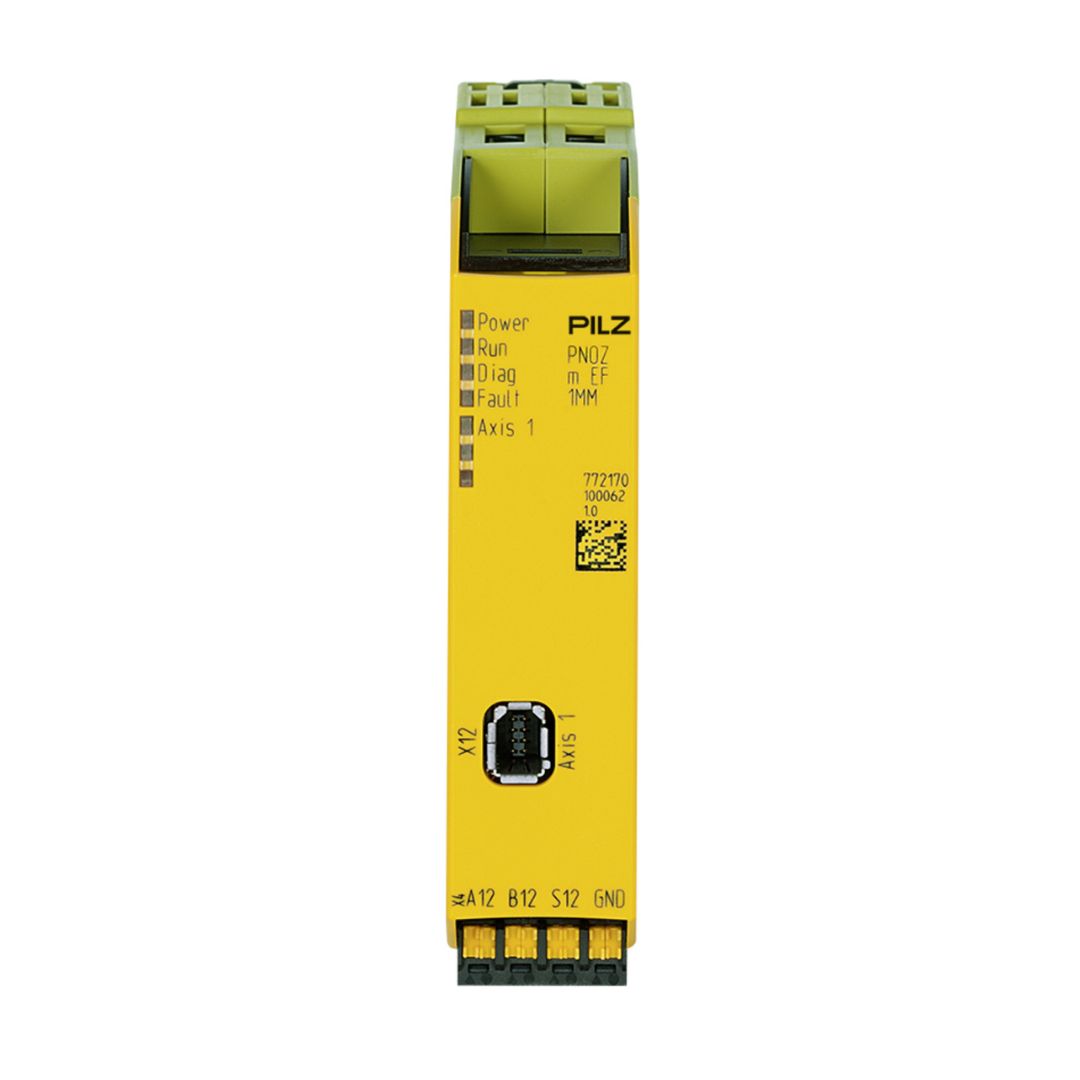

Safety Relay Pilz PNOZ m EF 1MM Code 772170

PNOZmulti 2 Motion Monitoring Modules

• The PNOZ m EF *MM expansion module connects to a base uni
  t from the PNOZmulti 2 configurable control system.
• Two models are available: PNOZ m EF 1MM provides safe
  monitoring of one axis and PNOZ m EF 2MM provides safe
  monitoring of two independent axes.

Features and Benefits

• Can be configured in the PNOZmulti Configurator
• Monitoring of 1 axis, stock no. 918-6617
• Monitoring of two independent axes, stock no. 918-6611
• Measured value recorded by proximity switch and encoder
• LED display for supply voltage, diagnostics, axis status and errors
• Support the safe drive function in accordance with EN 61800-5-2

Applications

• Safe speed monitoring (SSM)
• Safe speed range monitoring (SSRM)
• Safe direction of movement monitoring (SDIM)
• Safe operating stop monitoring (SOSM)
• Analogue voltage (track S)

Standards

• EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3; IEC 61511 SIL 3.

Approvals

• CE, cULus Listed, TÜV, BG, CCC.
• Supplied with
• Screw terminals.

Features / Specifications

Certifications	Safe speed monitoring (SSM) Safe speed range monitoring (SSRM) Safe direction of movement monitoring (SDIM) Safe operating stop monitoring (SOSM) Analogue voltage (track S)
Approvals	EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3; IEC 61511 SIL 3.
Series	PNOZ m EF
Type
For Use With	PNOZmulti 2
Supply Voltage	24 V dc
Number of Inputs
Number of Outputs
Mounting Style	DIN Rail
Dimensions	101.4 x 22.5 x 111 mm
Terminal Type
