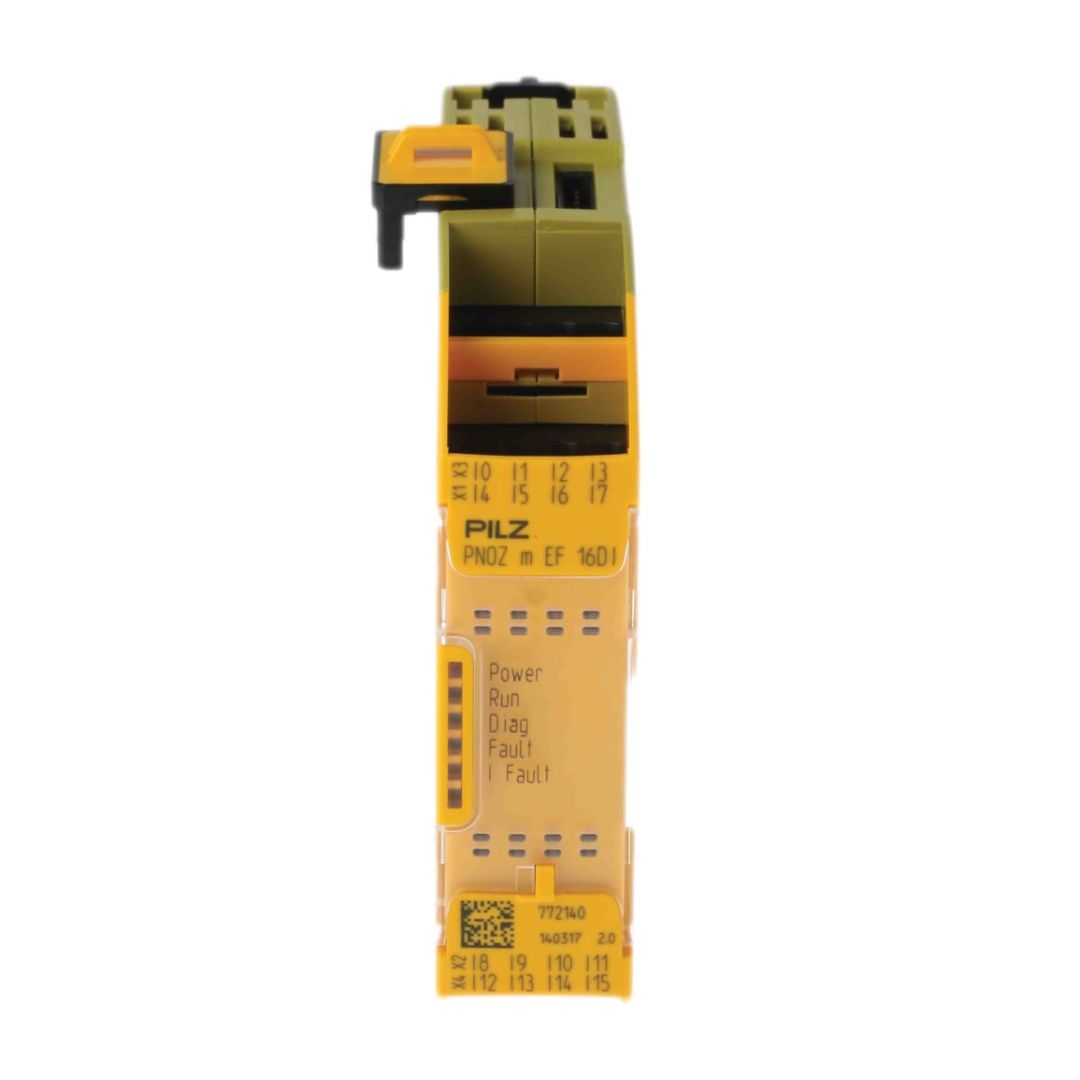

Safety Relay Pilz PNOZ m EF 16DI Code 772140

Technical Data Sheets :

PNOZ m EF 16DI Safe Input Module

• The PNOZ m EF 16DI expansion module connects to a base unit from the configurable control system.

Features and Benefits

• Can be configured in the PNOZmulti Configurator 16 safe inputs
• LED for error messages and diagnostics
• Test pulse outputs used to monitor shorts across the inputs

Applications

• The PNOZ m EF 16DI can connect E-stops, two-hand buttons,
  light beams, scanners, enabling switches, safety gate switches,
  PSEN and operating mode selector switches.

Standards

• EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN 62061 SIL CL 3.

Approvals

• CE, cULus Listed, TÜV, BG, CCC.
• Supplied with Screw terminals.

Features / Specifications
