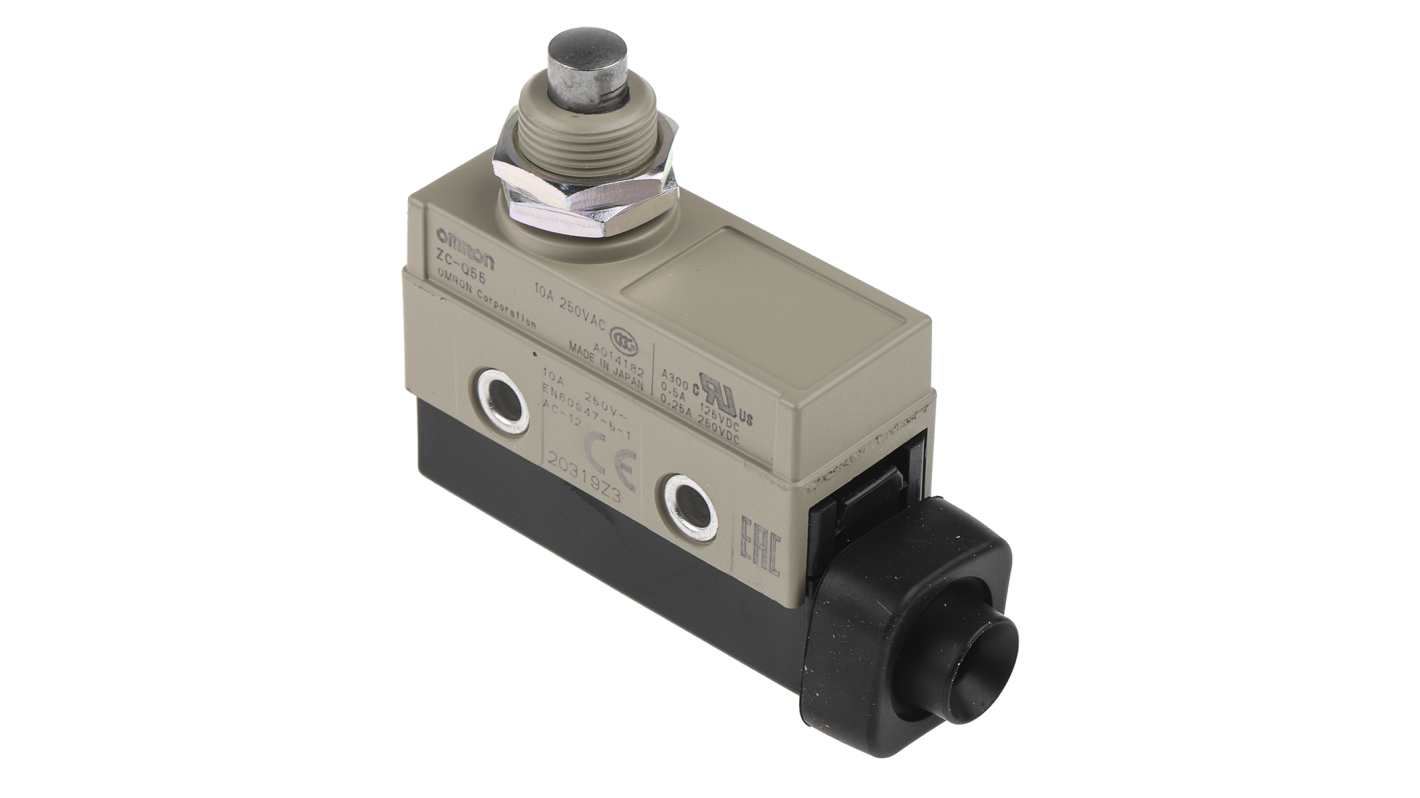

Omron limit switch ZC-Q55

Small high precision limit switches
Voltage rating 240Vac
Respond to a light operating force
Suitable for gang mounting for use with cams and positioners
Standard for in line direction of target travel
IP67

Cross roller plunger for perpendicular direction of target travel
Testing

UL recognised, CSA

Restrict motion to preset thresholds with this limit switch from OMRON. It's ideal for automated tasks that use positioners or cams, such as in assembly lines or packaging and processing systems. When the unit's inbuilt plunger detects the proximity of objects, it signals to the control system that a limit has been reached so action can be taken. The NO/NC design means the circuit is open until the contacts are triggered. Its snap-action style delivers immediate response, closing the circuit and giving you the benefit of instant control.

• Rapid maximum operating speed of 0.5m/s for immediate responses
• Compact dimensions of 60.2 (L) x 70 (W) x 21.7mm (D) fit neatly into tight areas
• Reliable performance in temperatures between -10°C and +80°C
• Maximum operating current of 10A makes it ideal for low-power systems

• Pharmaceutical industry
• Factory automation
• Access systems

It delivers a mechanical life of 10 million operating cycles, so you can count on it to stay the course.

Yes. This limit switch has an IP67 rating, which means it's completely dust-tight and withstands temporary immersion in water up to one metre deep.

UL; CSA
