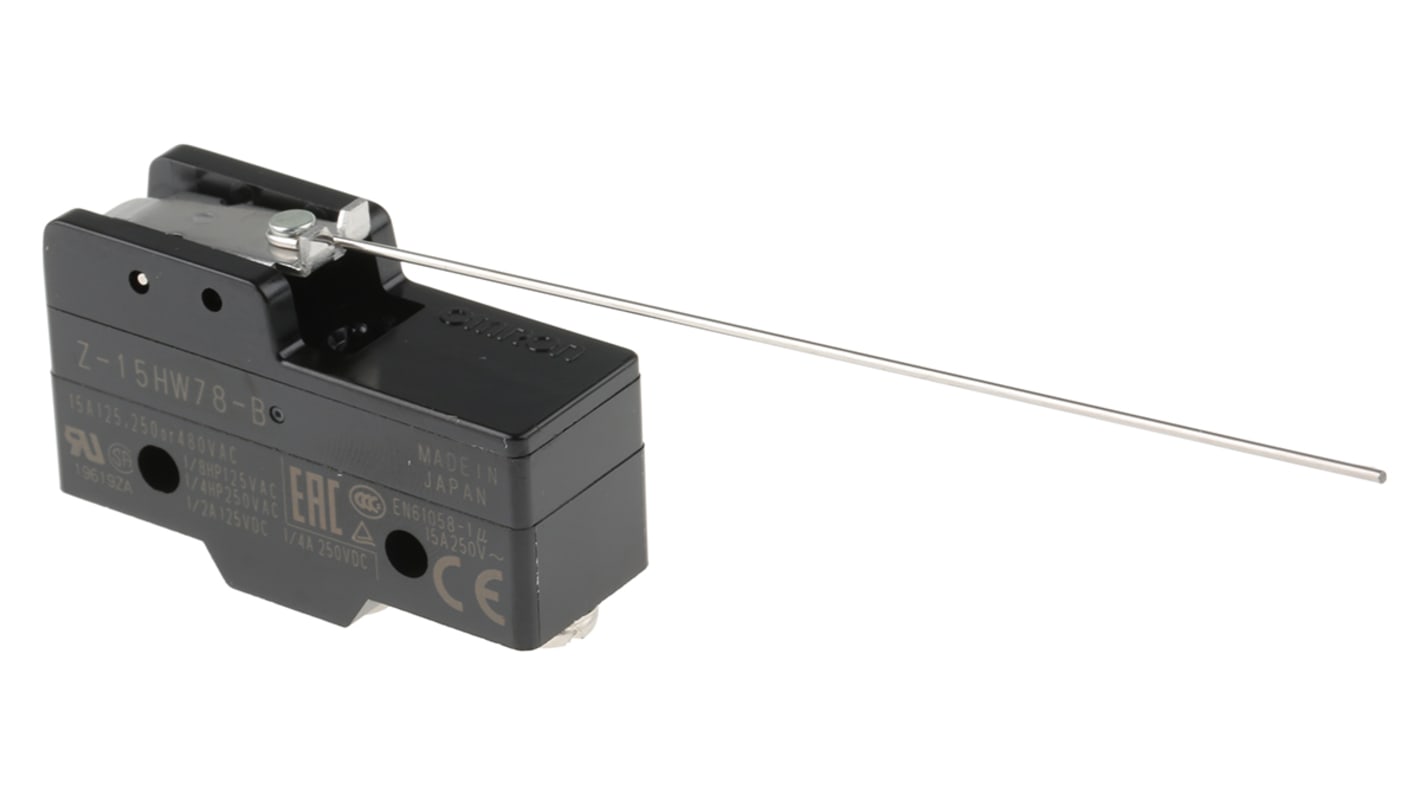

Omron limit switch Z-15HW78-B

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

UL recognised, CSA

This limit switch is intended for precise control in various automation applications. With a lever actuator, it efficiently detects the presence or absence of objects, ensuring optimal operation in industrial environments. Its robust design and high current capacity make it an important component for performance in both electrical and mechanical systems.

• High current capacity, handling up to 15A
• SPDT configuration for versatile circuit connections
• Lever actuator for simple installation and operation
• Snap action mechanism for quick response times
• Durable housing made from thermosetting resin

• Position feedback in conveyor systems
• Control of machinery in automated processes
• Safety interlocks for equipment protection
• Control of precise movements in robotic systems

It operates within a temperature range of -25 to +80°C.

It features a screw connection type for secure wiring.
