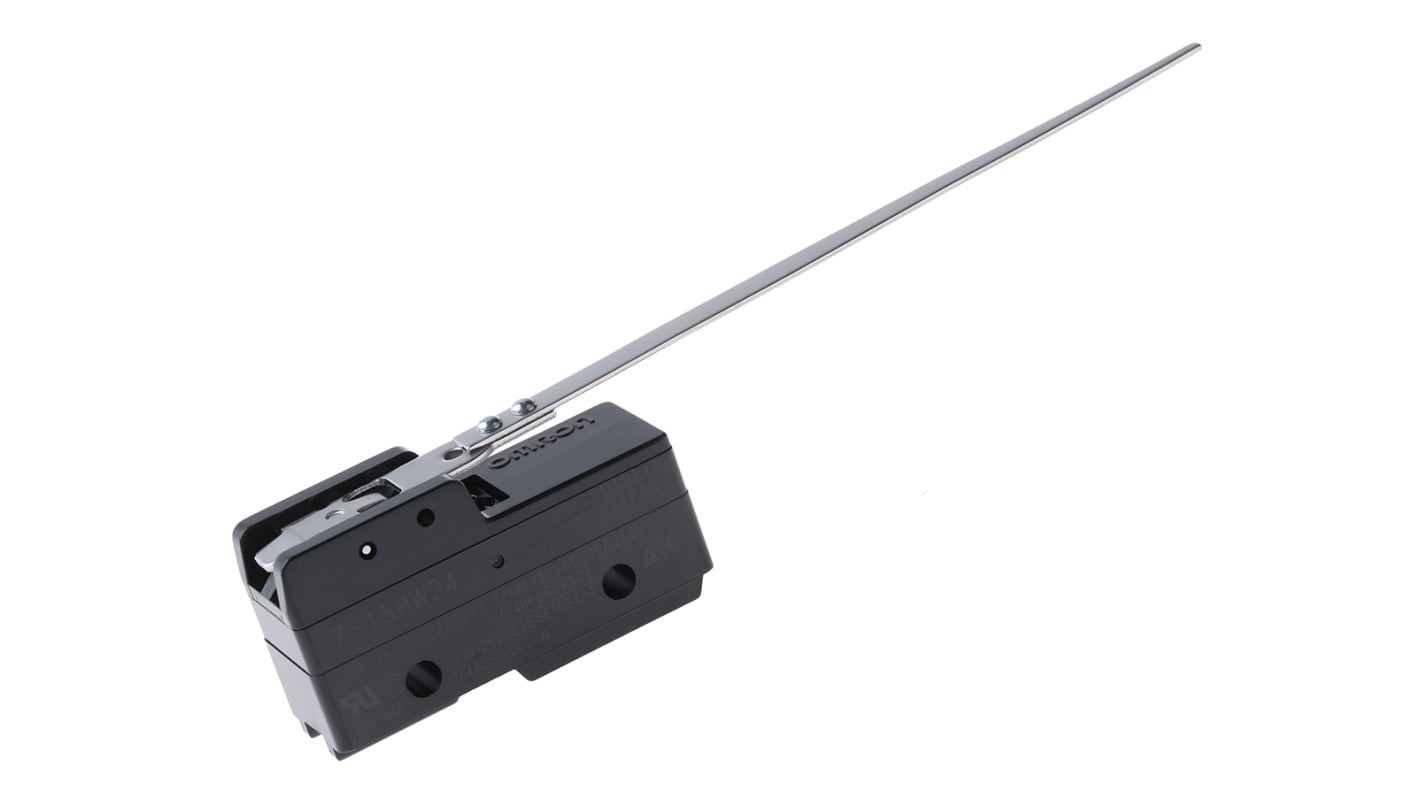

Omron limit switch Z-15HW24

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

UL recognised, CSA

This limit switch is engineered for precision and durability across various industrial applications. Featuring a snap action mechanism, it guarantees prompt and consistent operation, making it an essential element in automation systems and machinery safety features. Constructed from thermosetting resin, it is designed to withstand demanding environments while complying with industry standards for safety and performance.

• SPDT configuration enables versatile circuit control
• Supports a maximum current of 15A for robust Applications
• Lever actuator facilitates easy manual operation and flexibility
• Snap action provides rapid response for time-sensitive uses

• Utilised with automated machinery for precise positioning
• Suitable for safety interlocks in mechanical systems
• Ideal for controlling electric motors in industrial settings
• Employed in conveyor systems to monitor limits

It uses a solder connection for secure electrical integration.

Yes, it can safely handle up to 500V AC and 250V DC.

It is rated for up to 20 million operations, ensuring long-term performance.

It is designed to work seamlessly with various automation and control systems.
