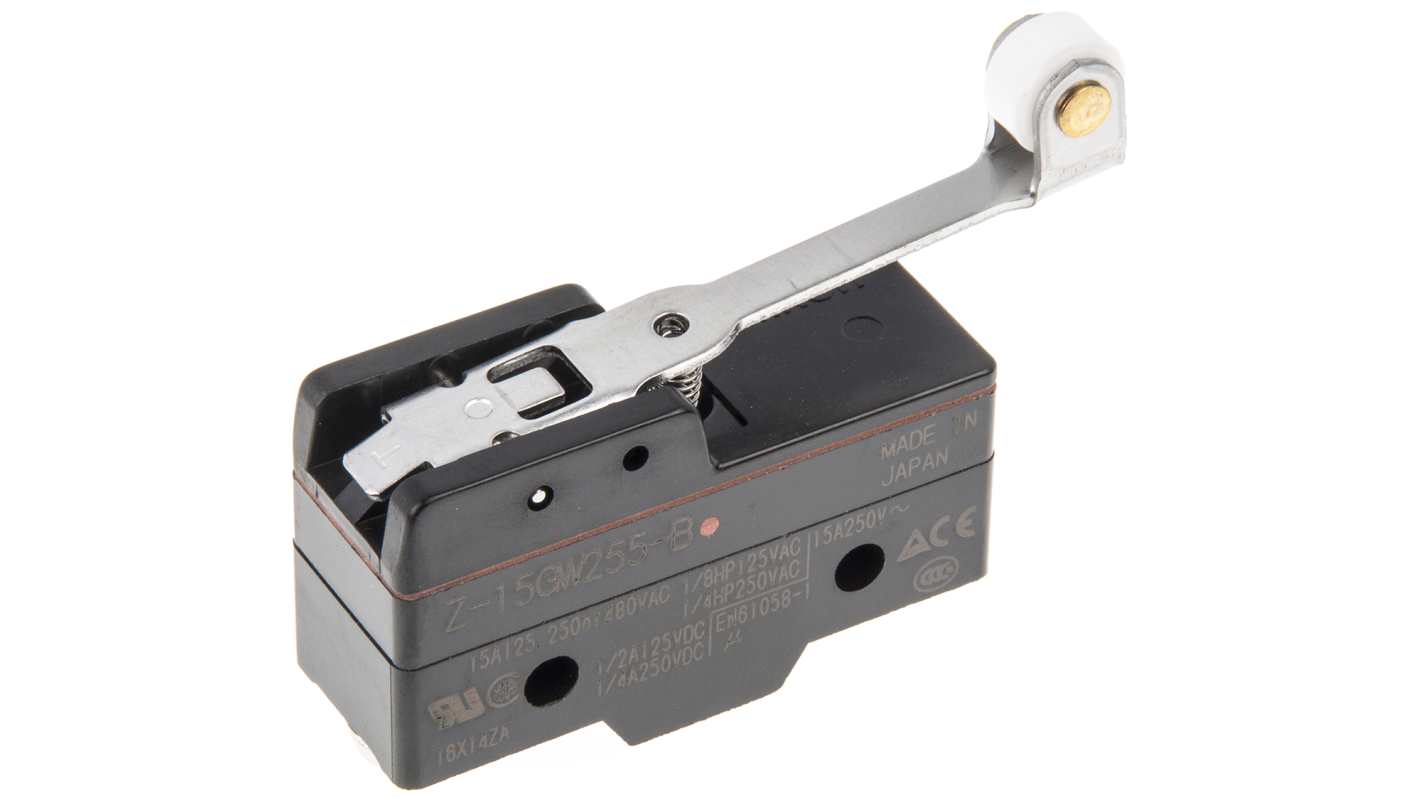

Omron limit switch Z-15GW255-B

Omron limit switch Z-15GW255-B

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
974.00 ฿
974.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron limit switch Z-15GW255-B

Omron Z15 series General Purpose


High 15A switching current
Standard type G operation
Screw terminal connections
Body size 49 x 17.5 x 24mm

Industry standard general purpose industrial microswitches for use in a wide variety of applications

Approvals

UL recognized, CSA

Omron Limit Switch, IP62, 15A Rated Current - Z-15GW255-B


This limit switch is designed for reliable performance in industrial applications. It features a hinge roller lever actuator and complies with IP62 ratings, ensuring resistance to dust and moisture for use in challenging environments. The switch has a mechanical lifespan of 10 million cycles.

Features & Benefits


• Hinge roller lever actuator enhances positional accuracy
• SPDT configuration for versatile switching options
• Handles up to 15A maximum current
• 10 million cycles mechanical life ensures durability

Applications


• Ideal for safety interlocks in automated machinery
• Control systems in manufacturing processes
• Conveyor systems for limit position monitoring
• Packaging machinery for precise operation
• Robotics for accurate positional feedback

Can it operate in both AC and DC voltage systems?


Yes, it can handle up to 500V AC and 250V DC.

Will it function effectively in high-temperature environments?


Yes, it operates safely between -15 to +80°C.

Can the actuator's force affect its performance?


Yes, an operating force of 1.27N ensures reliable switching.

Approvals

UL recognised, CSA
คุณสมบัติ
Value
Actuator Type Hinge Roller Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP62
Maximum Current 15A
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Series Z
Action Type Snap Action
Length 39.4mm
Maximum Operating Temperature +80°C
Minimum Operating Temperature -15°C
Depth 17.45mm
Width 49.2mm
Operating Force 1.27 N
Mechanical Life 10000000Cycles
