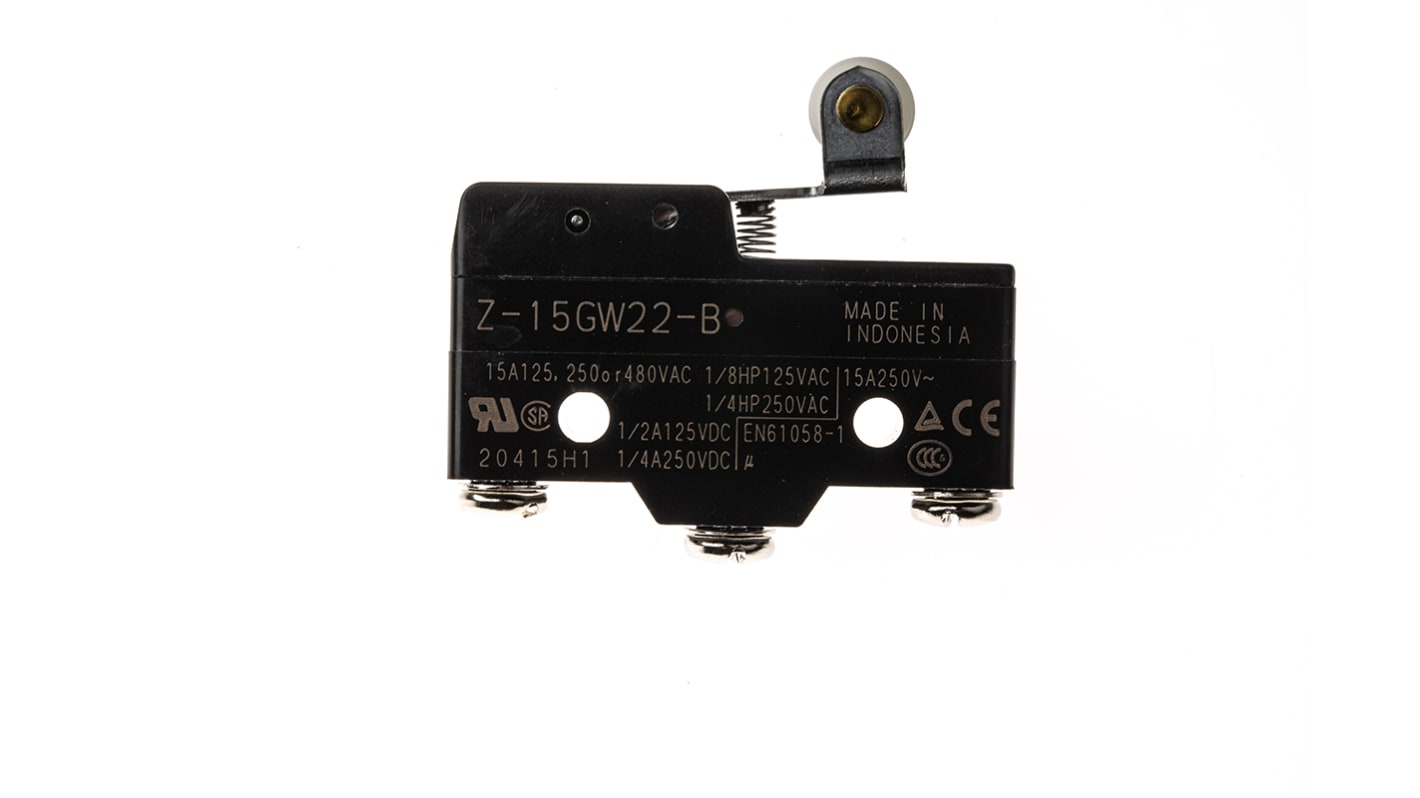

Omron limit switch Z-15GW22-B

High 15A switching current
Standard type G operation
Screw terminal connections
Body size 49 x 17.5 x 24mm

Industry standard general purpose industrial microswitches for use in a wide variety of applications

UL recognized, CSA

Need to keep a beady eye on your automated operation? This limit switch from OMRON has monitoring and control covered. It has a roller actuator that activates or deactivates the circuit when it's triggered by a force of 160g, keeping your application moving or shutting it off in the event of a malfunction. The unit has silver contacts that resist corrosion to deliver long-term performance in challenging industrial settings. As this snap-action switch moves back into position automatically, there's no need to reset it manually.

• Gets on with the job reliably in an operating temperature range between -25°C and +80°C
• Mechanical life of 10 million cycles for long-lasting reliability and accurate repeatability
• 0.5mm contact gap protects against arcing to enhance safety and limit potential damage to equipment

• Conveyor systems
• Aerospace industry
• Food production
• Packaging plants

Yes. The switch is insulated to withstand a voltage of 1000V AC at a frequency of 50/60Hz for one minute, minimising the risk of electrical breakdown.

UL recognised, CSA
