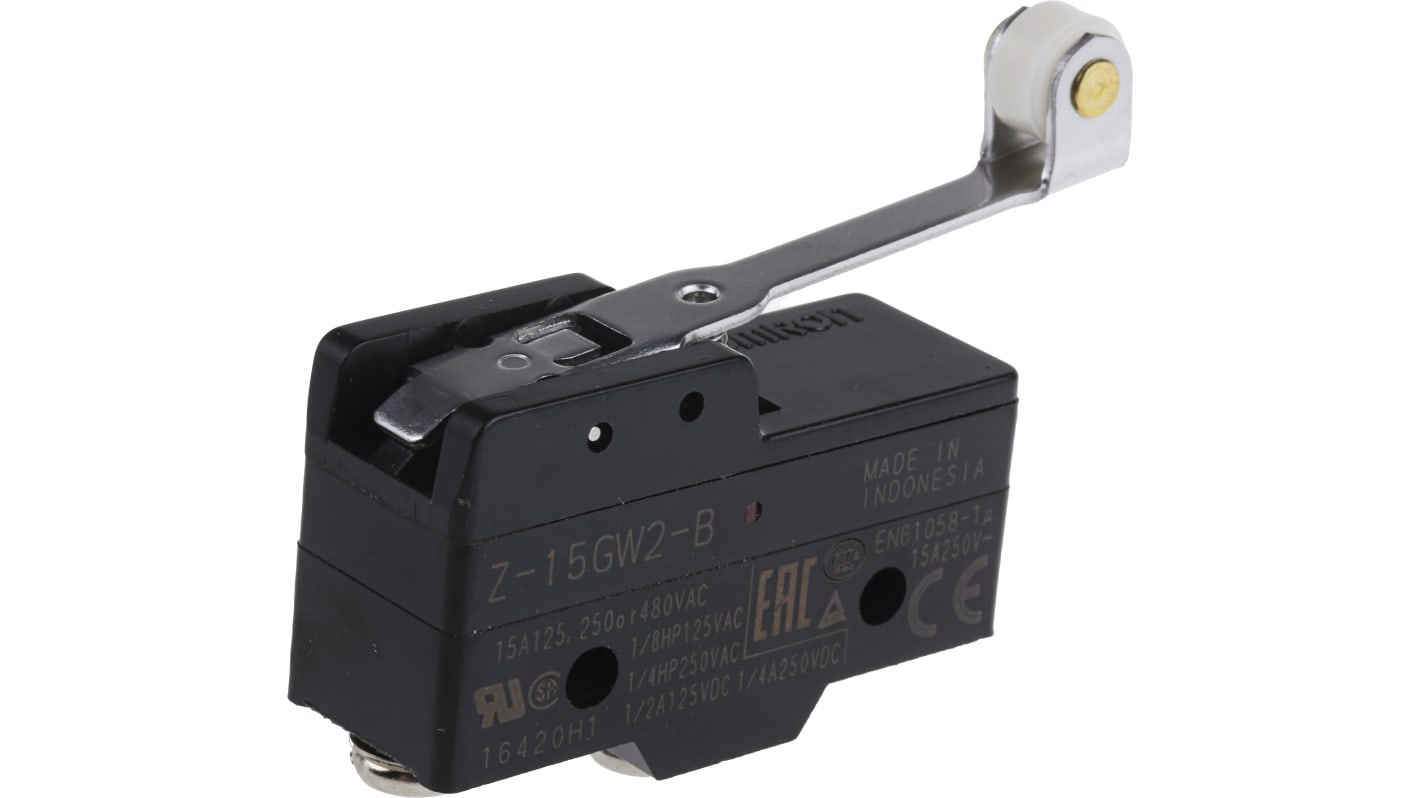

Omron limit switch Z-15GW2-B

High 15A switching current
Standard type G operation
Screw terminal connections
Body size 49 x 17.5 x 24mm

Industry standard general purpose industrial microswitches for use in a wide variety of applications

UL recognized, CSA

Streamline your automated system with this limit switch by OMRON. It's used to control automatic machinery by sensing moving objects that make contact with its actuator. The snap action design then transfers contacts from one position to another, activating the circuit and telling your kit what to do. As this unit has a single-pole, double-throw operation, it can be used to manage two separate circuits with one input. A robust plastic casing is on hand to keep the working free from contamination and in tip-top condition.

• Works without a hiccup in a wide operating temperature between -25°C and +80°
• Compact dimensions of 39.4 (L) x 49.2 (W) x 17.45mm (D) mean it saves space in busy circuits
• Roller lever reduces friction and conserves energy
• Snap action allows for precise control of your machinery as it quickly moves components based on your pre-set parameters

• Robotics systems
• Electric motors
• Conveyor belts

Yes, this unit has a mechanical life of 10 million cycles, so you can trust it to deliver long-term service.

UL recognised, CSA
