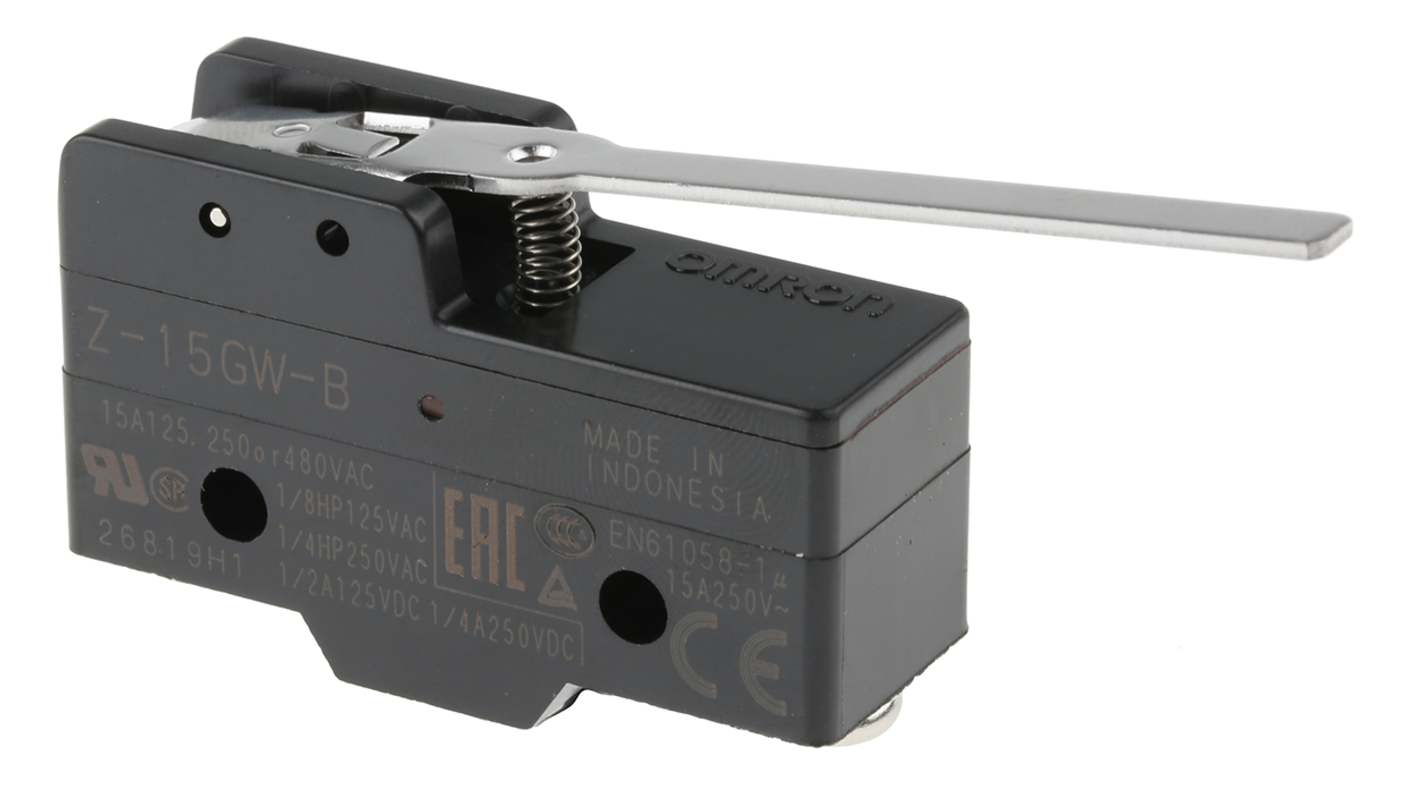

Omron limit switch Z-15GW-B

Omron limit switch Z-15GW-B

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
475.00 ฿
475.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron limit switch Z-15GW-B

Z15 Series – Basic Switch


The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

Omron Limit Switch, IP00, 15A Maximum Current - Z-15GW-B


This Omron limit switch with a lever actuator and screw connection from the series is designed for high precision in various applications. With a snap action mechanism and a thermosetting resin housing, this limit switch ensures reliable performance in industrial settings.

Features & Benefits


• Snap action mechanism for quick response
• Lever actuator for precise operation
• Screw connection for secure installation
• Thermosetting resin housing for durability
• SPDT configuration for versatile applications
• High voltage and current ratings for industrial use

Applications


• Ideal for automation systems
• Suitable for electrical panels
• Used in mechanical equipment
• Perfect for industrial control systems

Can it withstand high operating temperatures?


This Omron limit switch is designed to operate at temperatures ranging from -25 °C to +80 °C.

Will it provide reliable performance in high-speed applications?


The snap action mechanism ensures quick response times, making it suitable for high-speed operations.

Is it easy to install in industrial settings?


With a screw connection type, this limit switch can be securely installed in various industrial applications.

Can it be used in both AC and DC circuits?


Yes, this Omron limit switch is suitable for both AC and DC circuits with its high voltage and current ratings.

Will it maintain consistent performance over millions of operations?


The mechanical life of 20,000,000 operations ensures long-lasting and reliable performance in industrial environments.

คุณสมบัติ
Value
Actuator Type Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 15A
Housing Material Thermosetting Resin
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Connection Type Screw
Series Z
Action Type Snap Action
Length 49.2mm
Standards Met CSA
Maximum Operating Temperature +80°C
Width 29.4mm
Depth 17.45mm
Minimum Operating Temperature -25°C
Mechanical Life 20000000Operations
