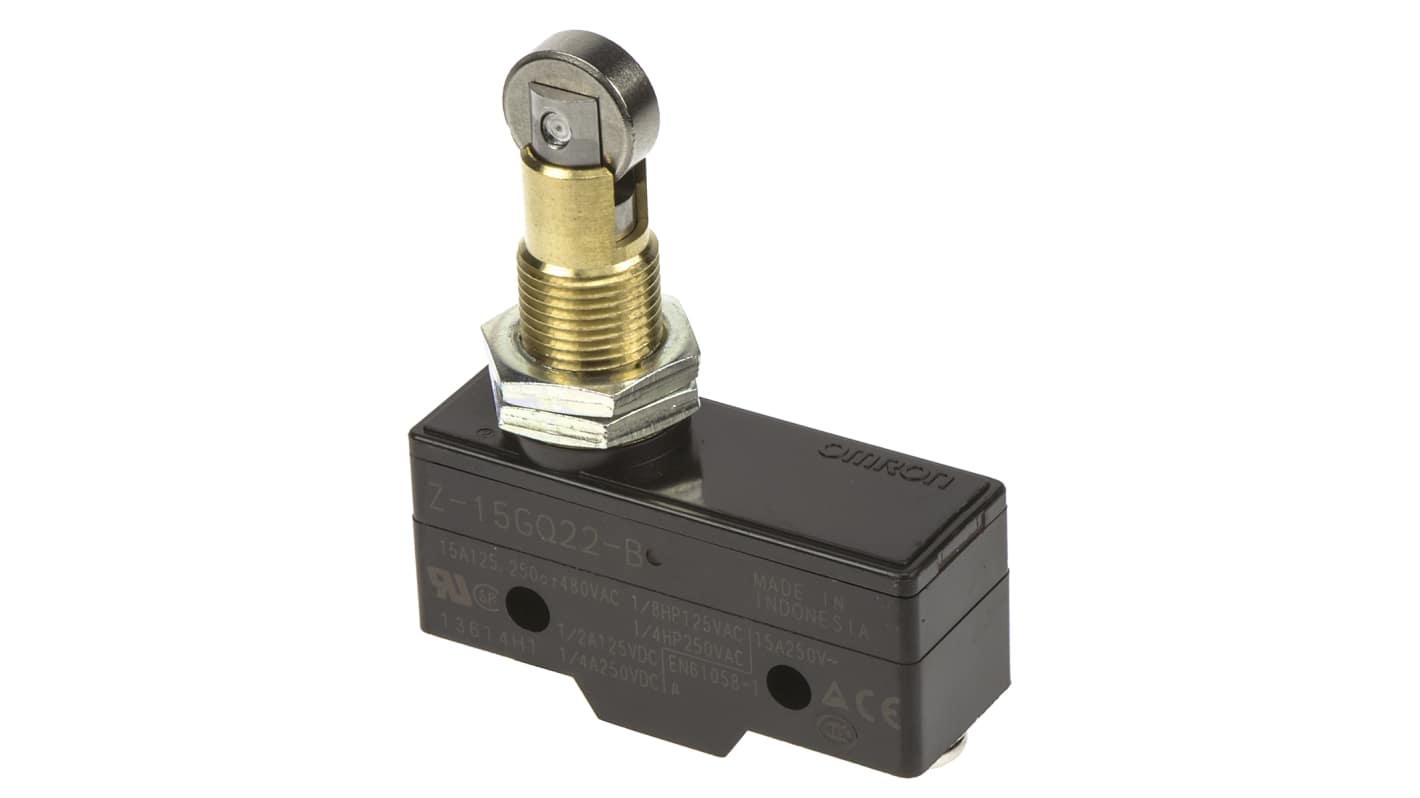

Omron limit switch Z-15GQ22B

High 15A switching current
Standard type G operation
Screw terminal connections
Body size 49 x 17.5 x 24mm

Industry standard general purpose industrial microswitches for use in a wide variety of applications

UL recognized, CSA

Get the precise machine control you need with this limit switch from OMRON. You can use it in applications where you want to make or break a circuit when a piece of equipment or an object reaches a specific point, such as on conveyor belts or machine tools. The switch has a plunger actuator that opens or closes the circuit when an object or mechanism presses it with 250 to 350g of force. This makes it highly accurate and means that you need less force to activate it than some other switch types, such as roller limits.

• Snap action mechanism opens contacts immediately regardless of force or speed
• Maximum voltage rating of 500V AC / 250V DC, so suits high-power applications
• Handles harsh settings with an operating temperature range between -25°C and +80°C
• SPDT configuration can be used to turn a single circuit on or off, or to switch between two circuits

• Packaging plants
• Distribution centres
• Engineering workshops

It has a mechanical life of an estimated 10 million cycles, so you can count on it for the long haul.

UL recognised, CSA
