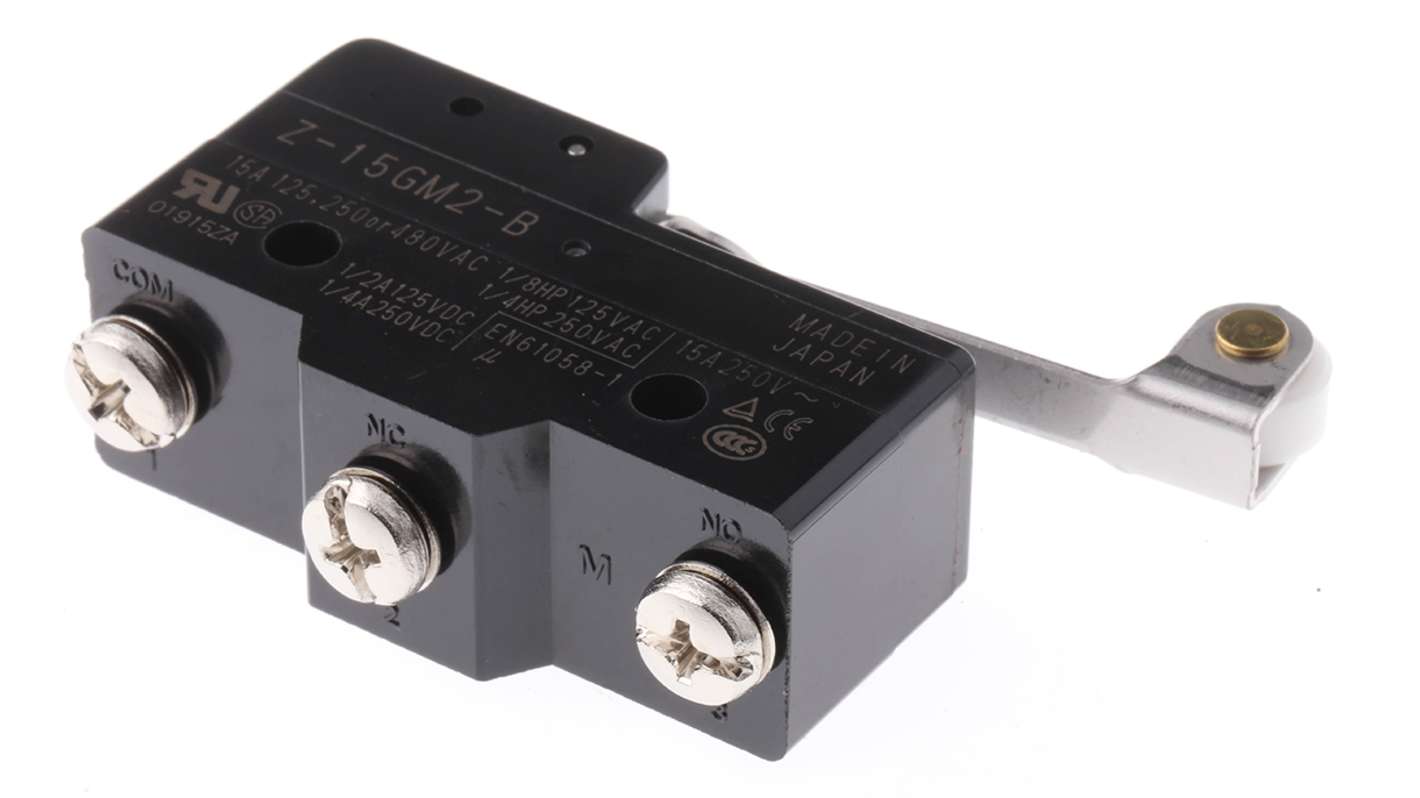

Omron limit switch Z-15GM2-B

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

UL recognised, CSA

This limit switch serves as a versatile device for various automation and control applications. Featuring a roller lever actuator, it operates in both normally open (NO) and normally closed (NC) configurations. Made from thermosetting resin, this switch has dimensions of 49.2mm in length and 17.45mm in depth. With a mechanical life of 20 million operations, it supports a maximum current of 15A, making it suitable for industrial environments.

• High switching capacity of 15A for various applications
• SPDT configuration for flexible circuit control
• Roller lever actuator for dependable operation
• Snap action mechanism for quick response
• Constructed from thermosetting resin for durability
• Operates effectively in a temperature range of -25 to +80°C

• Control in industrial machinery
• Position detection in automation systems
• Safety circuits for limit control
• Utilised in mechanical and electrical systems
• requiring high repeat accuracy

Yes, it functions effectively in temperatures up to +80°C.

It is designed for loads up to 15A, making it ideal for standard applications.

The durable construction offers resilience against mechanical shocks.

Yes, it includes mounting holes compatible with standard screws.

Use appropriate wire sizes and adhere to standard electrical installation practices.
