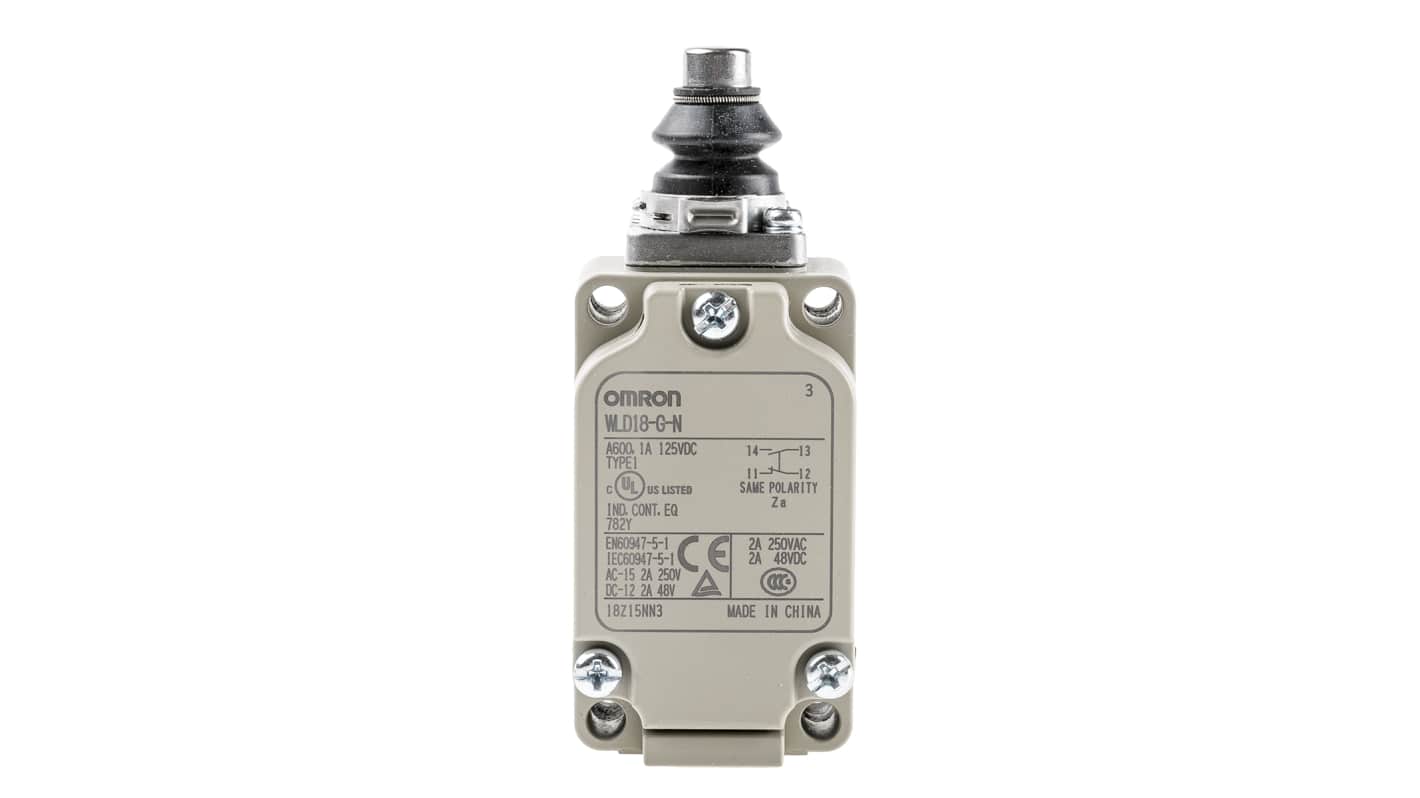

Omron limit switch WLD18-G-N
Omron limit switch WLD18-G-N
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
2,074.00 ฿
ราคาปกติ
ราคาโปรโมชัน
2,074.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch WLD18-G-N
WL Series General Purpose Limit Switch
Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Approvals
UL, CSA
Omron WLD18 Series Limit Switch, NO/NC Normal State Configuration, IP67 - WLD18-G-N
This limit switch is designed for durability and precision in various industrial environments. As a plunger limit switch, it operates efficiently within a temperature range of -10 to +85°C. The robust build ensures dependable performance, enhanced by its IP67 rating, which offers protection against dust and temporary immersion in water.
Features & Benefits
• Snap action mechanism allows for swift response
• Rated for 10A current handling capability
• SPST configuration suitable for single pole applications
• High mechanical life of 15 million operations
• Operates effectively in high-temperature settings up to 85°C
• Back and front mounting options provide versatility
• Rated for 10A current handling capability
• SPST configuration suitable for single pole applications
• High mechanical life of 15 million operations
• Operates effectively in high-temperature settings up to 85°C
• Back and front mounting options provide versatility
Applications
• Suitable for automation control in manufacturing
• Utilised in safety interlocks for machinery
• Employed in packaging and handling systems
• Commonly used in conveyor belt
• Utilised in safety interlocks for machinery
• Employed in packaging and handling systems
• Commonly used in conveyor belt
Can it handle both standard and micro loads?
Yes, it is suitable for both load types.
Will it perform in high humidity conditions?
Yes, its IP67 rating ensures protection in humid environments.
Is it easy to install in various orientations?
Yes, it allows for back and front mounting for flexibility.
Can this switch be used in welding environments?
Yes, its design prevents adhesion of spatter during welding.
Is it suitable for outdoor applications?
No, it is intended for indoor use only.
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10A |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | PG13.5 |
| Series | WLD18 |
| Action Type | Snap Action |
| Length | 40mm |
| Width | 42mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -10°C |
| Depth | 97.7mm |
| Mounting Orientation | Back, Front |
| Operating Force | 26.67 N |
| Mechanical Life | 15000000Operations |
