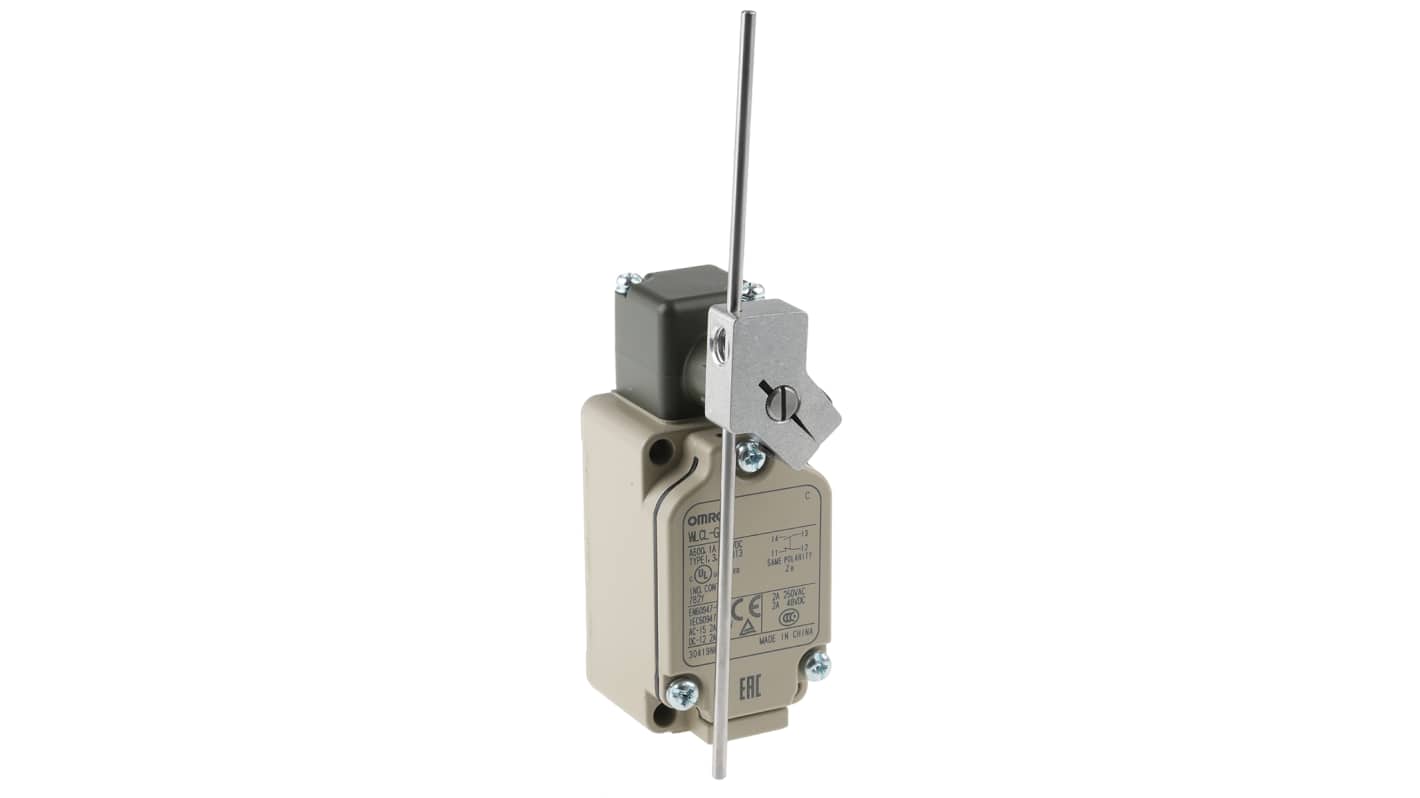

Omron limit switch WL-CL-GN

Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (I_th250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5

UL, CSA

This limit switch is suitable for high-precision applications in industrial settings. It supports automation processes and provides a robust solution for various equipment and machinery. With a double-pole, double-break configuration, it enhances safety and efficiency, making it vital for automation and control applications.

• IP67 rating protects against dust and water ingress
• Aluminium alloy housing combines strength with a lightweight design
• Operates in a temperature range of -10°C to +80°C for versatile applications
• Double break functionality enhances safety
• Rod actuator type allows for various mounting configurations
• Mechanical lifespan of 15 million operations minimises maintenance requirements

• Suitable for control systems in automation machinery
• Used for position detection on conveyor belts
• Effective for high-frequency operations in manufacturing
• Employed in processes involving arc welding

It supports a maximum current of 2A for both AC and DC applications.

Secure the switch using M4 round crimp terminals according to the wiring diagram.

Yes, but ensure adequate protection against corrosive substances and extreme weather conditions.

The limit switch is rated for 15 million mechanical operations under normal conditions.
