• Omron limit switch TZ-1GV2
1 1

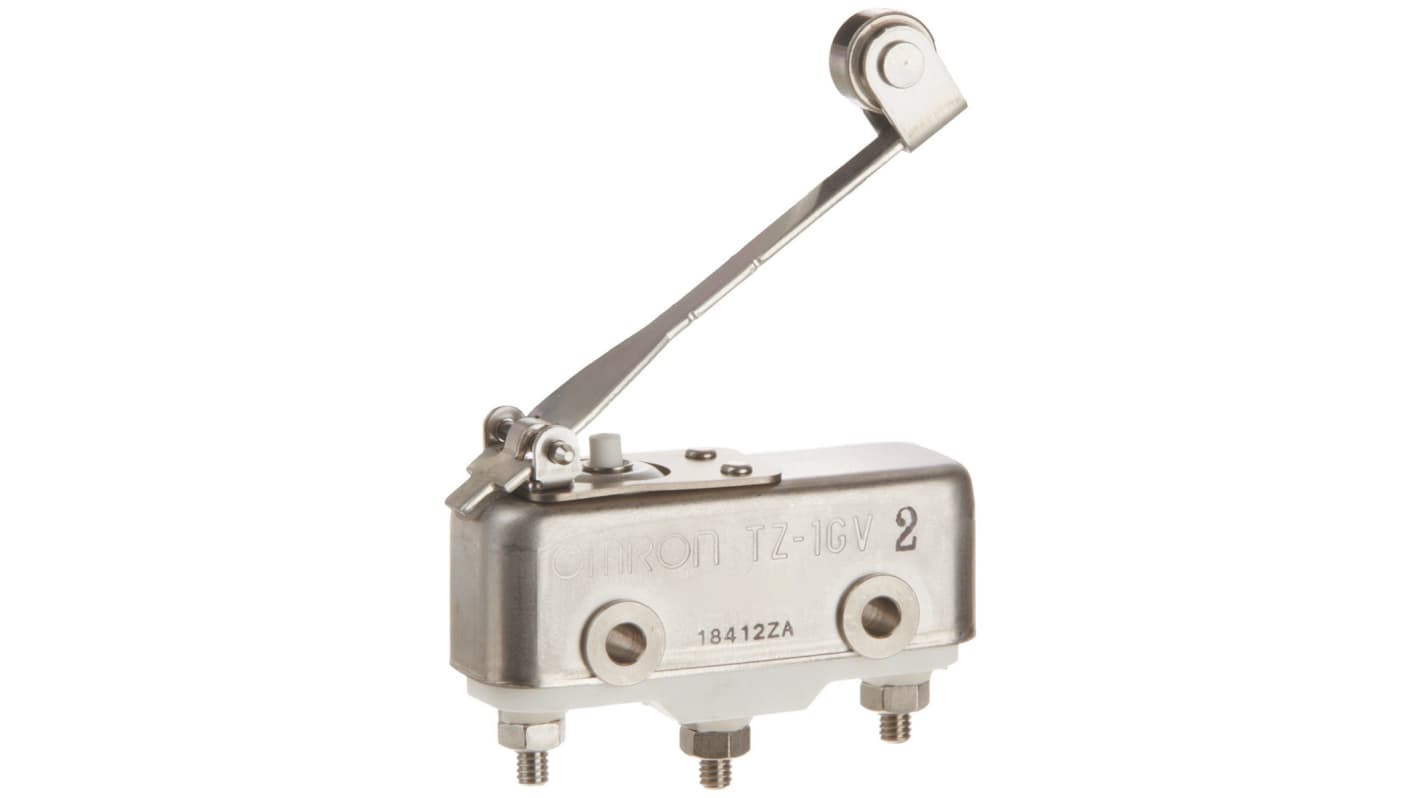

Omron limit switch TZ-1GV2

Omron limit switch TZ-1GV2

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
17,407.00 ฿
17,407.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron limit switch TZ-1GV2

TZ Series High Temperature Limit Switch


The TZ series limit switches have been designed to operate at extremely high temperatures. They have a stable operation at an ambient temperature of 400 C. The series incorporates a ceramic insulator, cobalt-alloy spring, and special-alloy contact, thus ensuring high contact reliability at high ambient temperature. Various models are available and users can choose from pin plunger, hinge lever or long or short roller lever.

Operating temperature range: -65 to +400 °C (with no icing)
Contact rating: 1A at 250 Vac
Mechanical service life: 100,000 operations minimum
Electrical service life: 50,000 operations minimum

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

คุณสมบัติ
Value
Actuator Type Roller Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 1A
Maximum AC Voltage 250V
Maximum DC Voltage 125V
Connection Type Screw
Action Type Snap Action
Length 49.2mm
Depth 17.4mm
Maximum Operating Temperature +400°C
Width 21.8mm
Minimum Operating Temperature -65°C
Mounting Orientation Back, Front
Mechanical Life 100000Operations
