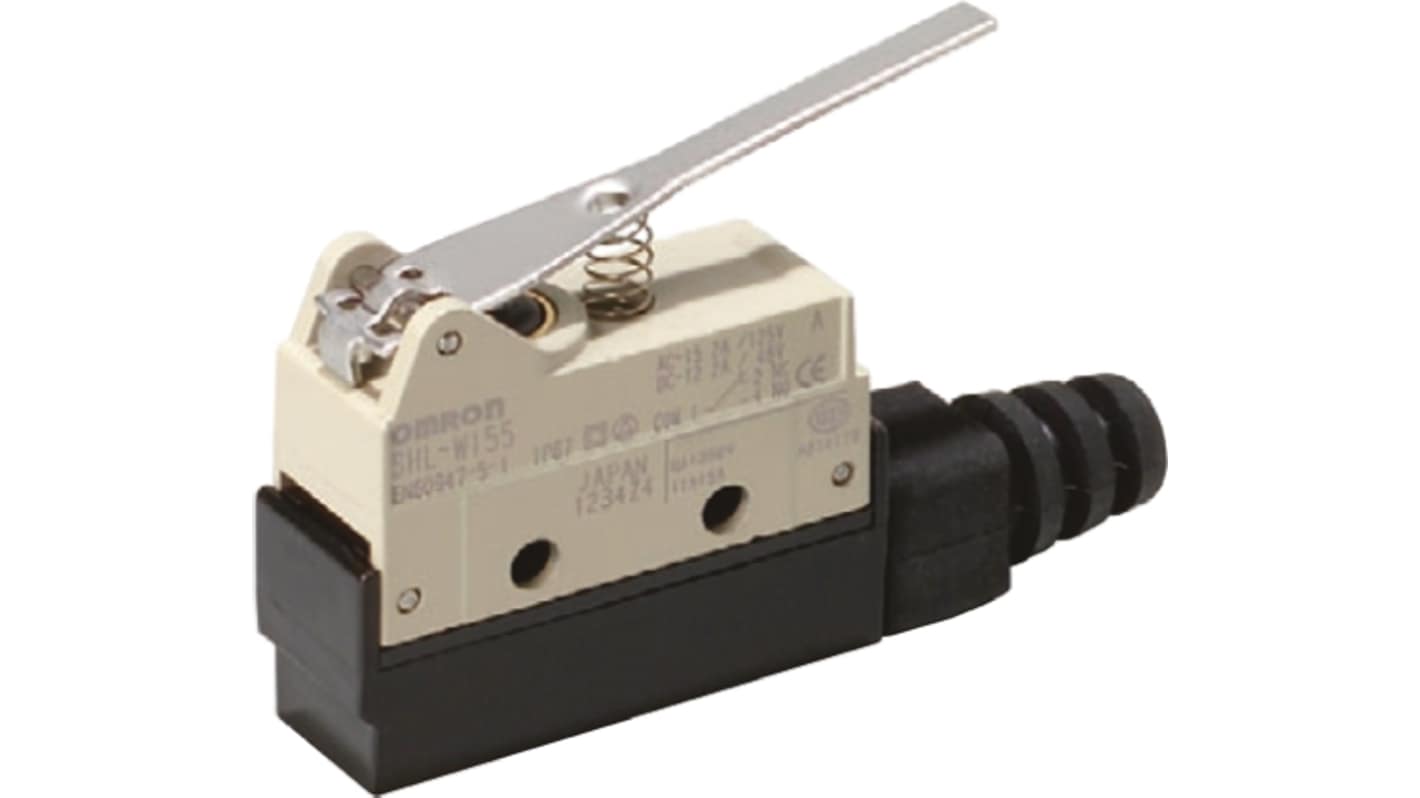

Omron limit switch SHL-W3155
Omron limit switch SHL-W3155
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,785.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,785.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch SHL-W3155
Enclosed Switch Hinge Roller Levers / Plungers
Incorporates a switch with durable coil spring in a high precision case
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right
Standards
EN, UL, CSA, CCC, IEC IP67
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Standards
EN, UL, CSA, CCC, IEC IP67
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | ac 2 A, dc 200mA |
| Maximum AC Voltage | 480V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Action Type | Snap Action |
| Length | 73.5mm |
| Minimum Operating Temperature | -10°C |
| Depth | 17.5mm |
| Width | 40.9mm |
| Maximum Operating Temperature | +80°C |
| Mounting Orientation | Side |
| Mechanical Life | 10000000Operations |
