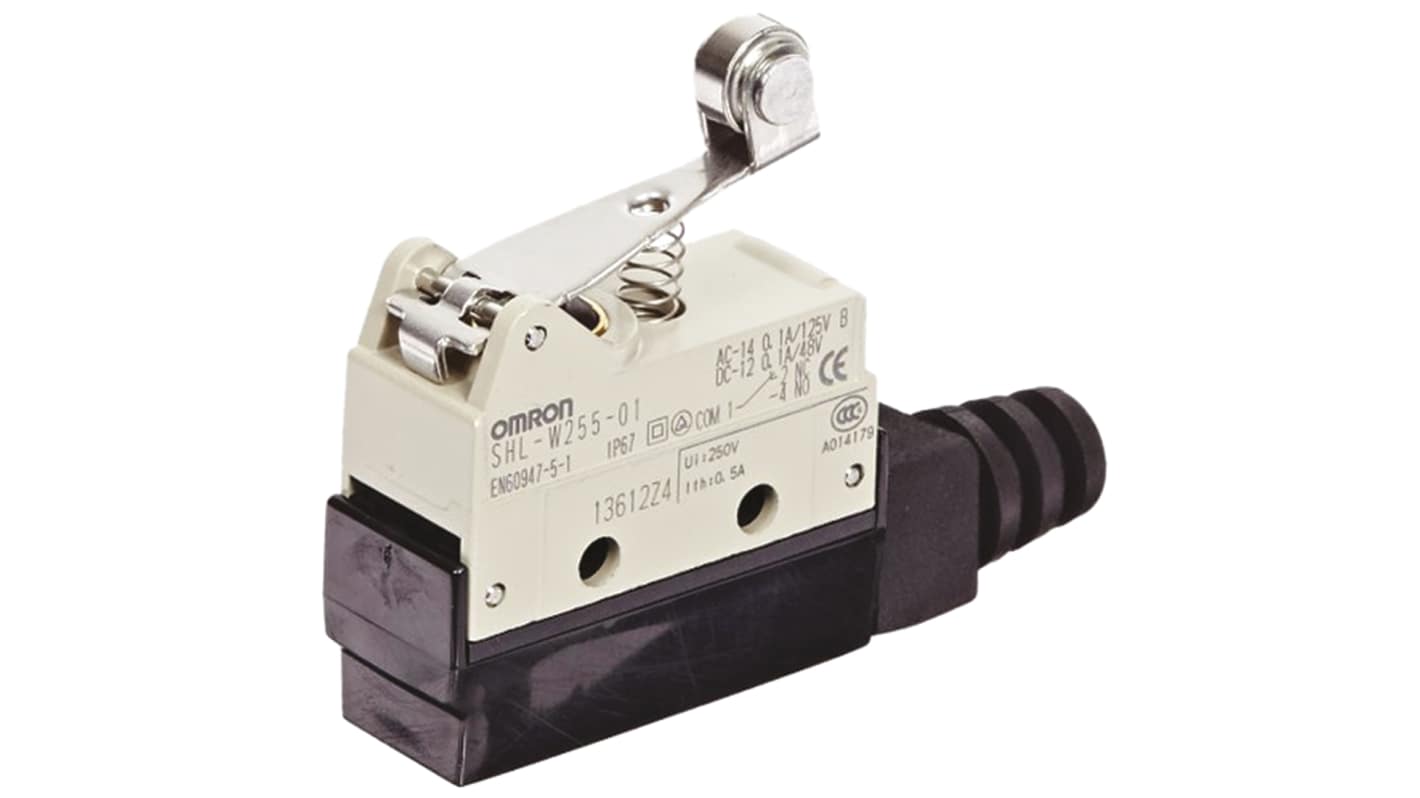

Omron limit switch SHL-W255
Omron limit switch SHL-W255
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
2,286.00 ฿
ราคาปกติ
ราคาโปรโมชัน
2,286.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch SHL-W255
Enclosed Switch Hinge Roller Levers / Plungers
Incorporates a switch with durable coil spring in a high precision case
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right
Standards
EN, UL, CSA, CCC, IEC IP67
Omron SHL Series Limit Switch, NO/NC Normal State Configuration, AC 2A/DC 200mA Maximum Current - SHL-W255
This limit switch is critical for automation and control applications, ensuring dependable operation in various environments. Its robust design features an IP67 rating, making it suitable for harsh conditions. The roller lever actuator promotes efficient function, enabling precise control of machinery and equipment.
Features & Benefits
• Snap action mechanism for dependable operation
• SPDT configuration for diverse Applications
• High mechanical lifespan of 10 million operations
• Screw connection for straightforward installation
• Compatible with both normally open and closed circuits
• SPDT configuration for diverse Applications
• High mechanical lifespan of 10 million operations
• Screw connection for straightforward installation
• Compatible with both normally open and closed circuits
Applications
• Conveyor systems for position detection
• Packaging equipment for process control
• Packaging equipment for process control
How does the switch perform in high-temperature environments?
The switch operates effectively in temperatures up to +80°C, suitable for challenging settings.
What is the mechanical lifespan of this switch?
It offers a mechanical life of 10 million operations, ensuring long-lasting performance.
Is it easy to install this device?
Yes, the installation is simplified with a screw connection, making it user-friendly.
Can the switch be used for varying voltages?
Yes, it accommodates a maximum AC voltage of 480V and a DC voltage of 250V.
What are the specific mounting orientations for this switch?
The device is designed for side mounting, providing versatility in installation.
Standards
EN, UL, CSA, CCC, IEC IP67
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | ac 2 A, dc 200mA |
| Maximum AC Voltage | 480V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Series | SHL |
| Action Type | Snap Action |
| Length | 73.5mm |
| Width | 40.9mm |
| Depth | 17.5mm |
| Standards Met | CCC, CE, CSA, UL |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -10°C |
| Operating Force | 3.92 N |
| Mechanical Life | 10000000Operations |
| Mounting Orientation | Side |
