• Omron limit switch D4N-412H
1 1

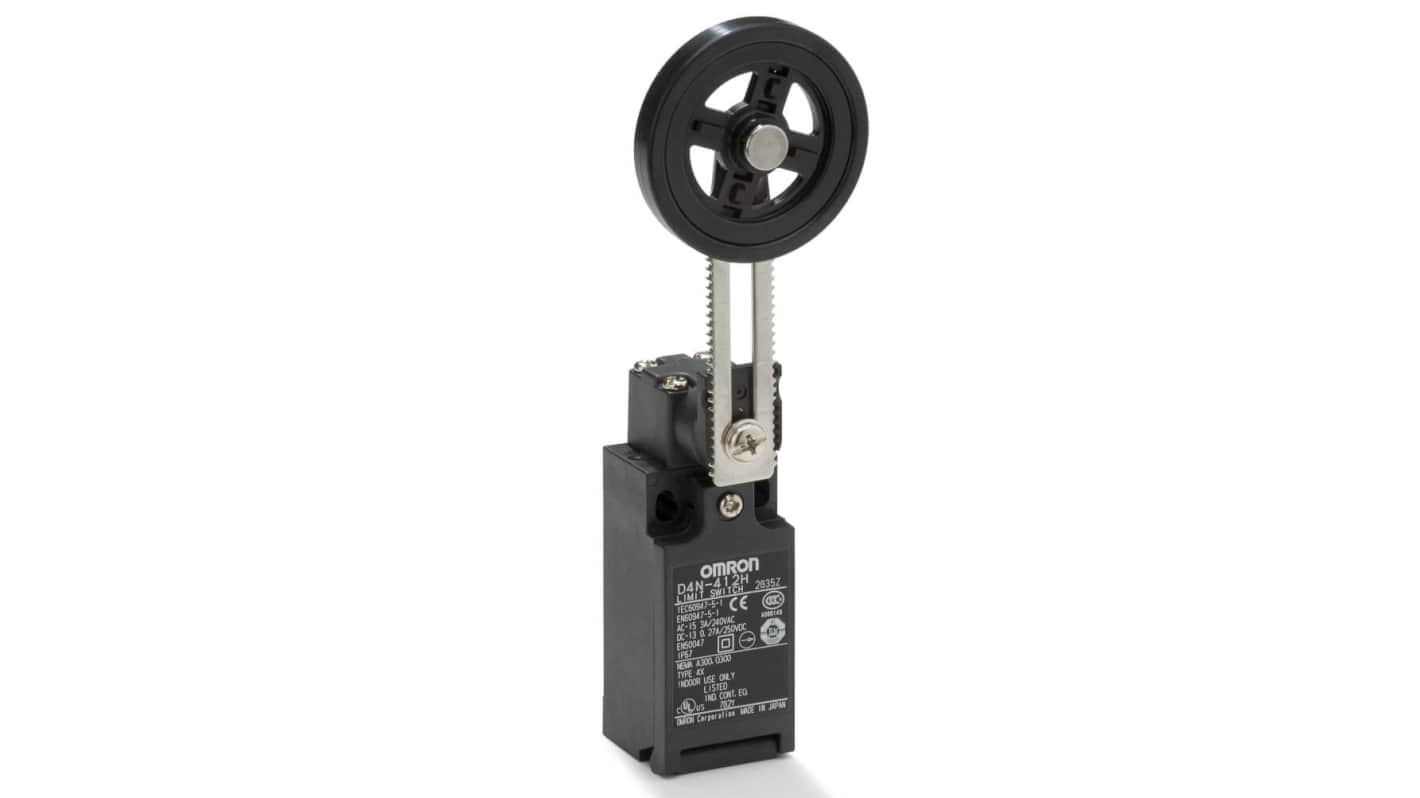

Omron limit switch D4N-412H

Omron limit switch D4N-412H

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,582.00 ฿
1,582.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron limit switch D4N-412H

D4N Series, Miniature Safety Limit Switch


The D4N series from Omron is a miniature safety limit switch with a plastic housing, two built-in contacts and a wide range of head and actuator types.

Direct opening mechanism
Various actuators
Double insulation
Standardized gold clad contacts provide high contact reliability
Can be used with both standard loads and micro loads
Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment
Conforms to EN115 and EN81-1

Omron D4N Series Limit Switch, 1NC/1NO Normal State Configuration, IP67 - D4N-412H


This limit switch is designed to provide precise control in various automation applications, essential for ensuring machinery operates correctly and safely by detecting the position of moving parts. With a robust build and long mechanical life, it meets the requirements of industrial settings.

Features & Benefits


• Roller lever actuator permits flexible mounting options
• DPST configuration provides versatile switching capabilities
• Plastic housing ensures durability while remaining lightweight

Applications


• Utilised for precise positioning in conveyors
• Suitable for automated machinery for safety interlocking
• Employed in robotics for movement control

What is the maximum temperature range this device can operate in?


The device can function in temperatures up to +70°C and as low as -30°C, making it adaptable to diverse environments.

How does the roller lever actuator benefit installation?


The roller lever actuator allows for flexible positioning and easy integration into existing systems, enhancing usability across different setups.

How do I ensure the longevity of this limit switch?


To maintain optimal performance, do not exceed the specified operating temperature and ensure proper installation to minimise mechanical stress.

Can this product be used in outdoor applications?


Yes, due to its IP67 rating and robust plastic housing, it is suitable for outdoor use, provided it is installed correctly.


Safety Limit Switch
คุณสมบัติ
Value
Actuator Type Roller Lever
Pole and Throw Configuration DPST
Normal State Configuration 1NC/1NO
IP Rating IP67
Housing Material Plastic
Connection Type M20
Series D4N
Action Type Snap Action
Length 64mm
Maximum Operating Temperature +70°C
Minimum Operating Temperature -30°C
Depth 48.2mm
Width 31mm
Standards Met CSA, TUV, UL
Mechanical Life 15000000Cycles
ดูรายละเอียดทั้งหมด
