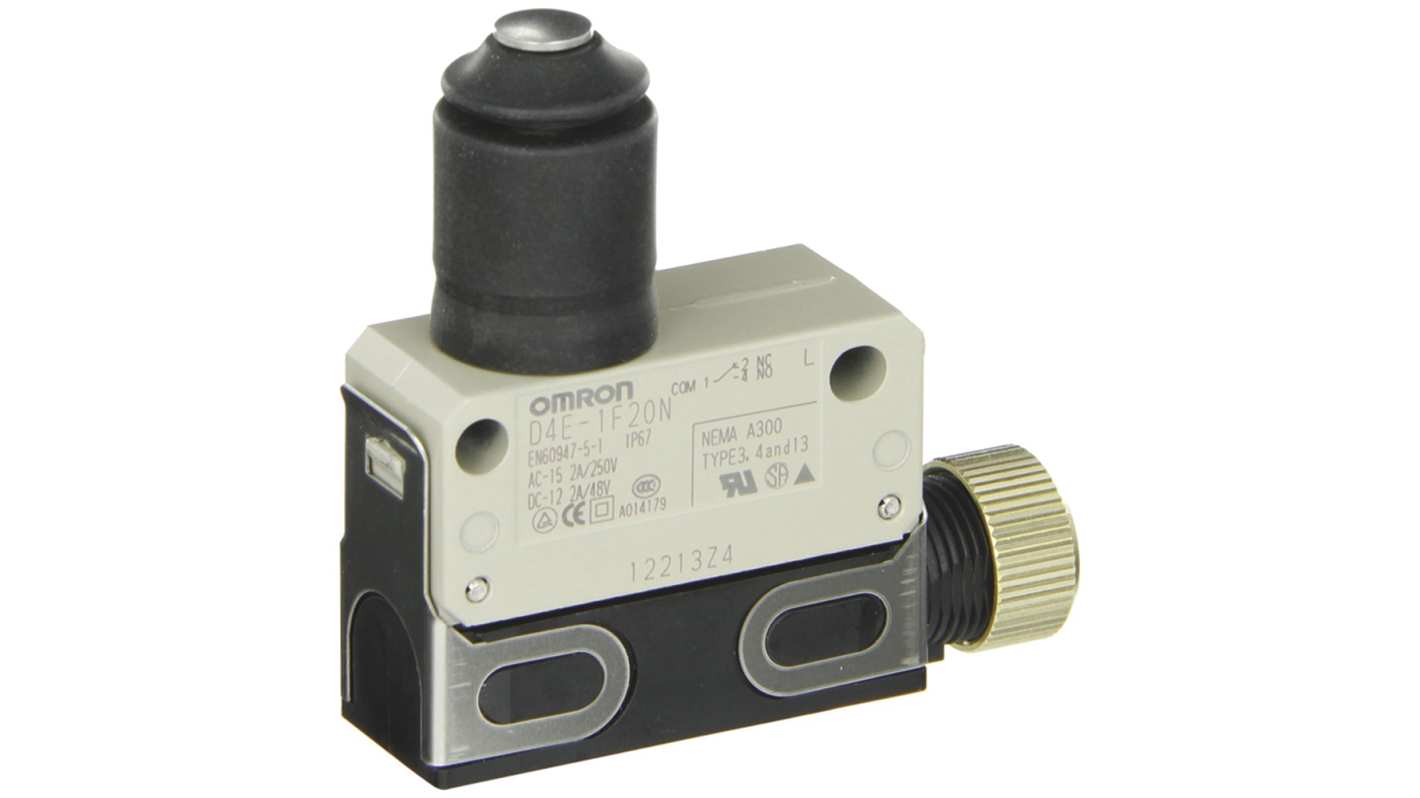

Omron limit switch D4E-1F20N
Omron limit switch D4E-1F20N
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
3,302.00 ฿
ราคาปกติ
ราคาโปรโมชัน
3,302.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch D4E-1F20N
D4E- N Small Sealed Switch
The Omron D4E- N series are a slim and compact switch with better seal and ensuring longer service life then D4E
Flat springs with an improved lever ratio of the built-in switch ensure smooth snap action and long life expectancy
Protection cover protects the built-in switch from dust and oil. Plunger incorporates a tough seal cap that lasts for a long time
One touch connector eliminates need for tedious wiring operations and reduces downtime for wiring and maintenance
Minute load model with gold cladding is optimal for electronic control
No difference in mounting pitch and characteristics between D4E-N and D4E models
Protection cover protects the built-in switch from dust and oil. Plunger incorporates a tough seal cap that lasts for a long time
One touch connector eliminates need for tedious wiring operations and reduces downtime for wiring and maintenance
Minute load model with gold cladding is optimal for electronic control
No difference in mounting pitch and characteristics between D4E-N and D4E models
Standards
EN, UL, CSA, and CCC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 5A |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Action Type | Snap Action |
| Length | 57mm |
| Maximum Operating Temperature | +80°C |
| Width | 32.9mm |
| Depth | 18mm |
| Minimum Operating Temperature | -10°C |
| Mechanical Life | 10000000Operations |
| Mounting Orientation | Side |
