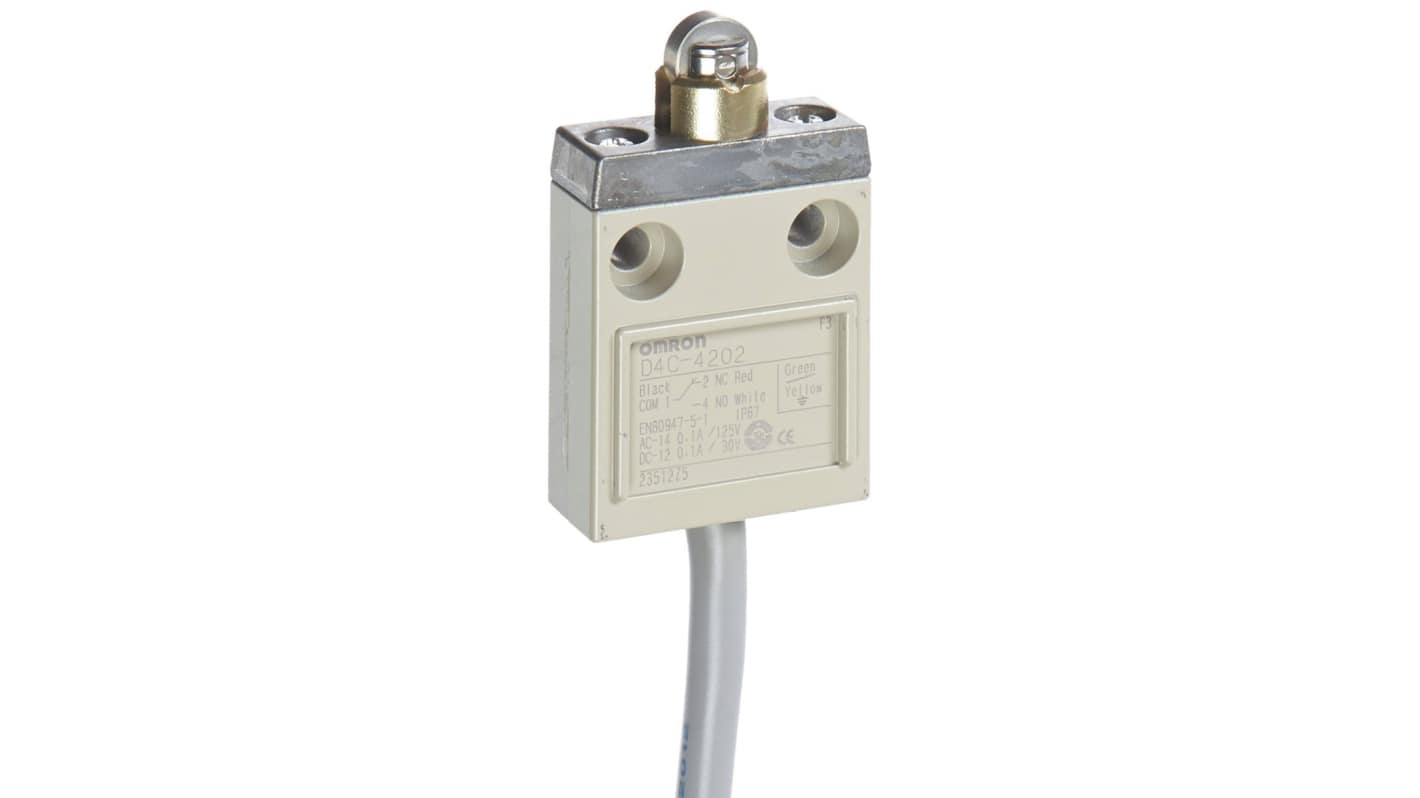

Omron limit switch D4C-4202
Omron limit switch D4C-4202
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
3,405.00 ฿
ราคาปกติ
ราคาโปรโมชัน
3,405.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch D4C-4202
D4C Compact Limit Switch
Sealed, Compact, Slim Prewired Limit Switch Rugged diecast housing
Sealing characteristics that meet IEC IP67 degree of protection.
Triple-sealed construction:
Plunger section sealed via nitrile rubber packing seal and diaphragm; switch section sealed via nitrile rubber cap; cable entrance sealed via encapsulating material
Multiple mounting possible with Switches with Plungers
Triple-sealed construction:
Plunger section sealed via nitrile rubber packing seal and diaphragm; switch section sealed via nitrile rubber cap; cable entrance sealed via encapsulating material
Multiple mounting possible with Switches with Plungers
Standards
EN, UL, CSA, and CCC
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 125 V ac 100 mA, 30 V dc 100mA |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Action Type | Snap Action |
| Length | 51.5mm |
| Width | 40mm |
| Depth | 16mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -10°C |
| Mounting Orientation | Front |
| Mechanical Life | 10000000Operations |
