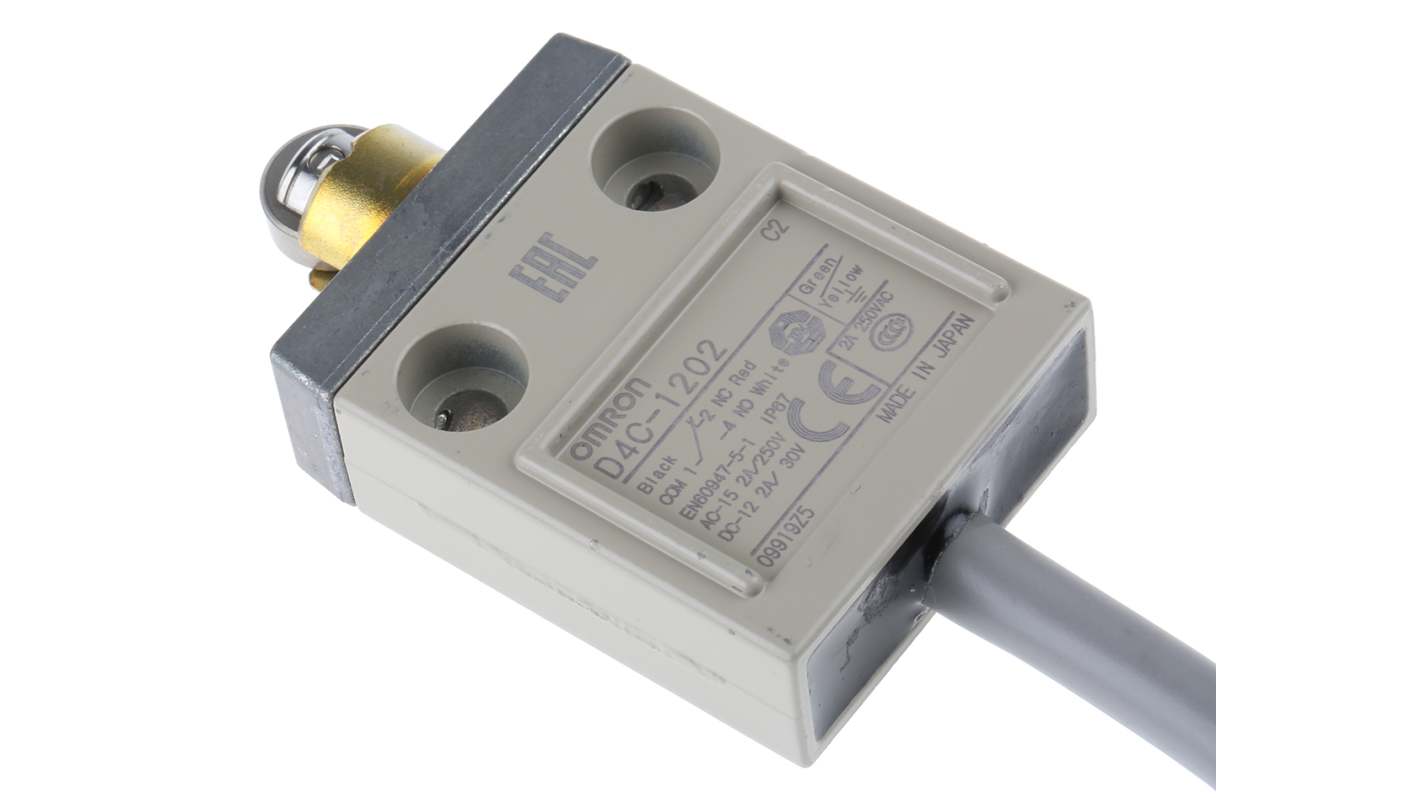

Omron limit switch D4C-1202

Omron limit switch D4C-1202

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
4,051.00 ฿
4,051.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron limit switch D4C-1202

Omron Limit Switch, Roller Plunger Actuator, 11.77 N Operating Force - D4C-1202


This limit switch is designed for functionality in various settings, featuring a roller plunger actuator and constructed for high durability. Measuring 51.5mm in length, 40mm in width, and 16mm in depth, it is a compact option for industrial applications. With an IP67 rating, it withstands harsh environments effectively.

Features & Benefits


• Roller plunger actuator ensures precise mechanical operation
• SPDT configuration provides versatile switching capabilities
• Snap action design improves operational response time

Applications


• Used for automation control in manufacturing equipment
• Suitable for safety interlocks in machinery
• Ideal for position sensing in transportation systems
• Utilised in conveyor systems for operational management

Can it operate effectively in extreme temperatures?


Yes, it functions within -10°C to +70°C.

Is it compatible with both AC and DC circuits?


Yes, it supports up to 5A AC and 4A DC.

Can it handle high mechanical stress over time?


Yes, its mechanical life exceeds 10 million cycles.

Is it easy to install in existing systems?


Yes, it features a simple cable connection type.

คุณสมบัติ
Value
Actuator Type Roller Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current ac 5 A, dc 4A
Housing Material Metal
Maximum AC Voltage 250V
Maximum DC Voltage 30V
Connection Type Cable
Series D4C
Action Type Snap Action
Length 51.5mm
Maximum Operating Temperature +70°C
Depth 16mm
Standards Met CE
Minimum Operating Temperature -10°C
Width 40mm
Mounting Orientation Front
Mechanical Life 10000000Cycles
Operating Force 11.77 N
