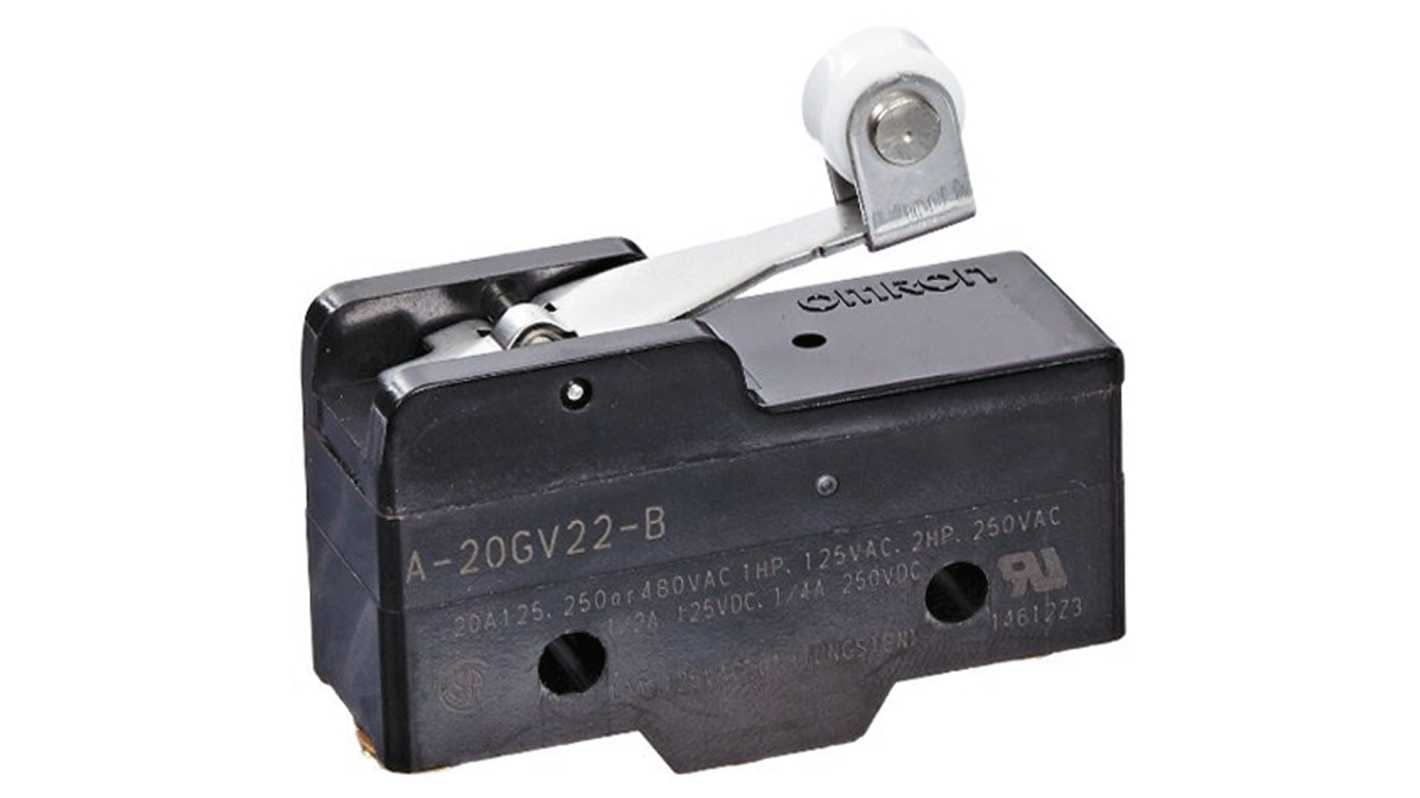

Omron limit switch A-20GV22-B

Omron limit switch A-20GV22-B

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
669.00 ฿
669.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron limit switch A-20GV22-B

A20 Series


The A20 Series of Switches from Omron

High-capacity switch capable of handling 20A loads with inrush currents up to 75A
Directly switches such loads as motors, halogen lamps and solenoids
Same shape as OMRON Z series (except pin plunger)
Contact Form: SPDT
Terminal: Screw
IP00 Rated

Omron A-20 Series Limit Switch, 20A Maximum Current, NO/NC Normal State Configuration - A-20GV22-B


This limit switch is suitable for high-capacity applications, managing loads up to 20 A. Its roller lever actuation offers dependable control in various industrial environments, serving automation, electronics, electrical, and mechanical sectors. With a mechanical life exceeding one million operations, it provides durability and efficiency.

Features & Benefits


• Versatile panel or side mounting options available
• Operates within a wide temperature range of -25°C to +80°C
• Durable design with an estimated mechanical life of over 1 million operations

Applications


• Automation equipment for precise control
• Electrical panels needing reliable switching
• General-purpose requiring durability

What type of connection should be used for installation?


Screw terminals are recommended for a secure connexion, ensuring proper electrical integrity.

How does the temperature range affect operational efficiency?


The switch operates effectively between -25°C and +80°C, ensuring reliability across diverse environments.

What is the maximum operating force of the device?


It features an operating force of 1.57 N, suitable for various actuation tasks without excessive stress.

How frequently can the switch be activated safely?


It is rated for 240 mechanical operations per minute under optimal conditions, maintaining performance longevity.

คุณสมบัติ
Value
Actuator Type Roller Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 20A
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Connection Type Screw
Series A-20
Action Type Snap Action
Length 49.2mm
Maximum Operating Temperature +80°C
Width 17.45mm
Depth 29.4mm
Minimum Operating Temperature -25°C
Operating Force 1.57 N
Mounting Orientation Panel, Side
Mechanical Life 1000000Operations
