Murrelektronik Circular Connector Code 7000-78221-0000000

Murrelektronik Circular Connector Code 7000-78221-0000000

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

Murrelektronik

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
2,220.00 ฿
2,612.00 ฿ 2,220.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Murrelektronik Circular Connector Code 7000-78221-0000000

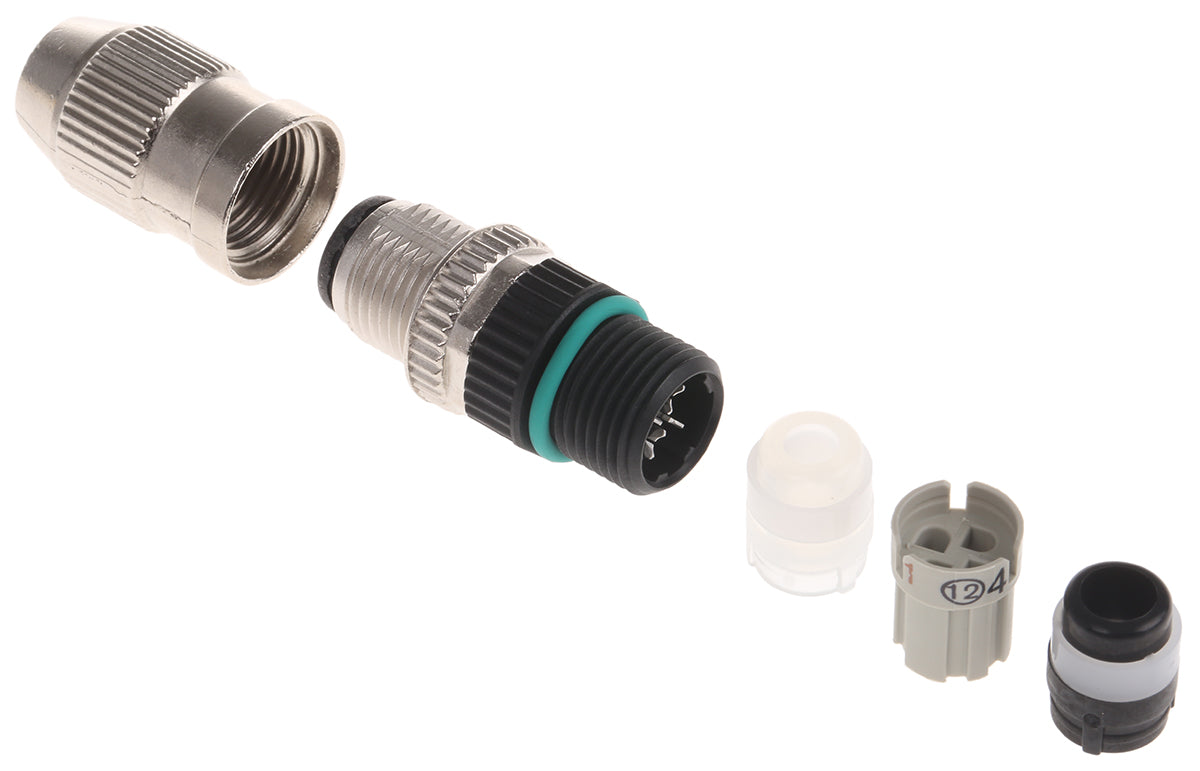

Murrelektronik Limited Circular Connector


The Murrelektronik Limited MOSA series is a 5-pole, cable mount male connector with a Socket type connection. The connector has a voltage rating of 250VAC/VDC and a current rating of 9A per contact. It has a plastic housing material with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application.

Features and Benefits


• Effective insulation
• High durability
• Industrial grade protection
• Operating temperature ranges between -25°C and 85°C
• Straight body orientation

Applications


• Electrical panels
• Factory automation
• Industrial machinery

Certifications


• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• CRL certified
• IP67 rated

คุณสมบัติ
Value
Number of Contacts 5
Mounting Type Cable Mount
Connector Size 7/8
Plug/Socket Socket
Contact Gender Male
Termination Method Screw
IP Rating IP67
Current Rating 9.0A
Series 7000
Body Orientation Straight
Voltage Rating 250.0 V
Mating Type Threaded
Housing Material Polymer
Pole Format 5P
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
