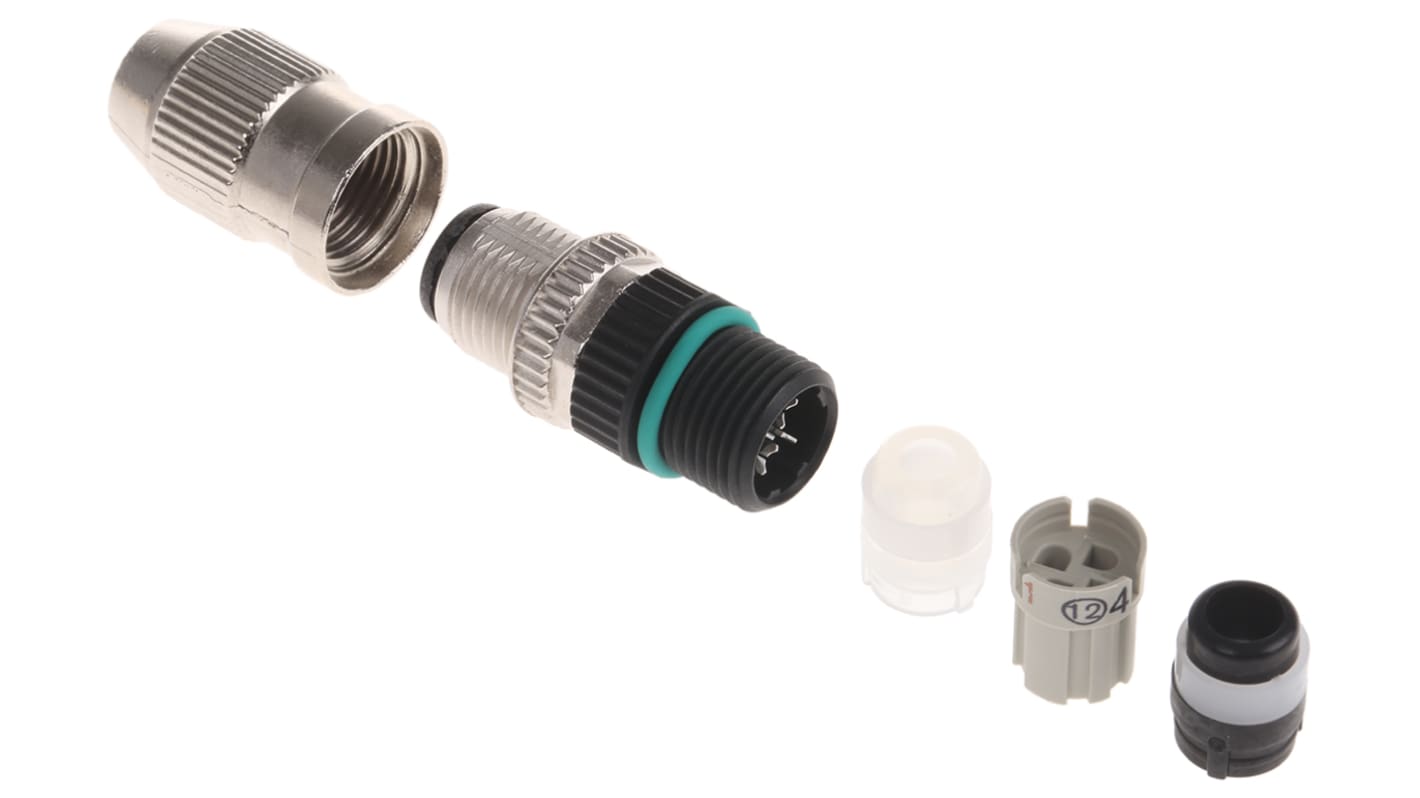

Murrelektronik Circular Connector Code 7000-42111-0000000

The Murrelektronik Limited 7000 series 5-contact M12 female bulkhead cable connector has a plug/socket in-line connection. This panel feed through A-coded connector has a voltage rating of 60VAC/DC and a current rating of up to 4A per contact. This connector features plug-in mating with a threaded locking mechanism for an easy and secure connection. Its connector housing is constructed from impact-resistant plastic with A coding.
Murrelektronik sensor-Actuator cable assemblies and connectors
A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, Fieldbus connector cable assemblies, couplers and tooling from Murrelektronik.

Straight body orientation
Screw termination
Easy mating and unmating
Mounting set ranging between M16mm and 1.5mm
Operating temperature ranging between -25°C and 85°C
Shielded

Machine tools
Manufacturing
Metal cutting
Production lines

IP65 rated
IP67 rated
