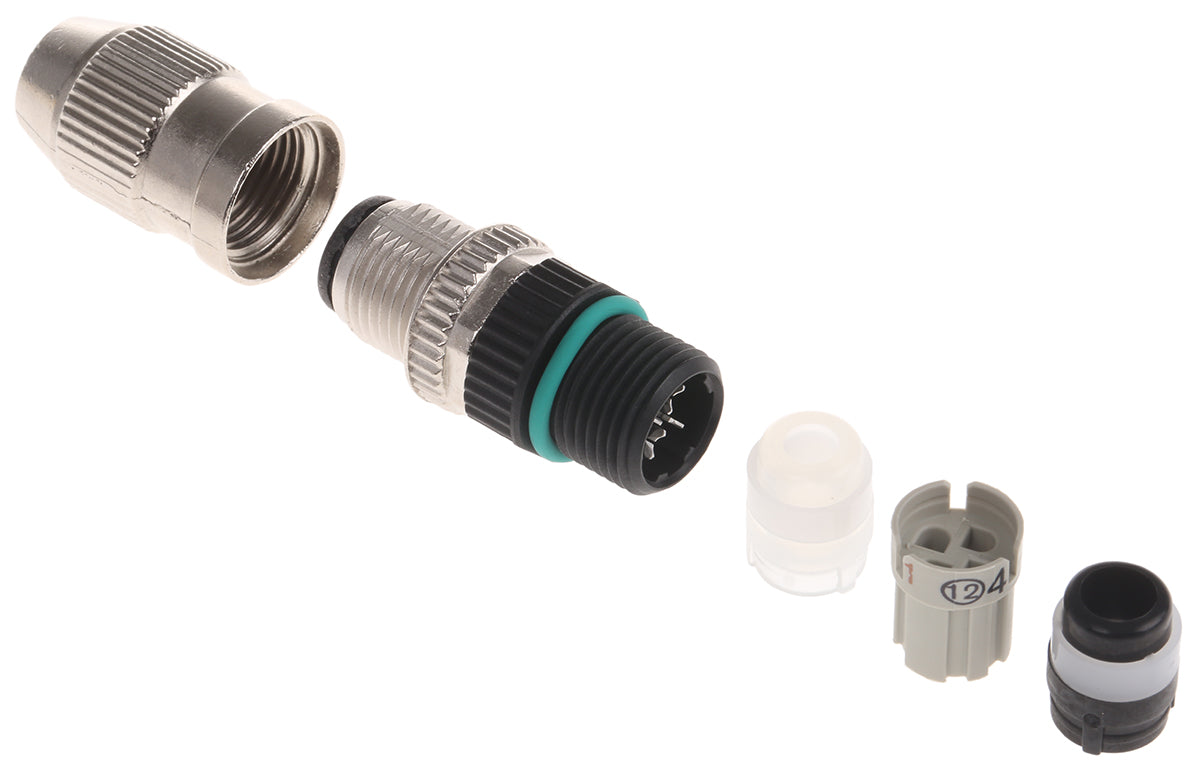

Murrelektronik Circular Connector Code 7000-21101-0000000

MOSA series M12 field-wireable cable mount connector from Murr Elektronik, 8 way and X Coded.This M12 connector features IDC terminals allowing in the field construction and repair is fully shielded and IP67 rated once mated, suitable for GBit ethernet applications.

Operating voltage 50/60 Vac/dc
Operating current 0.5A Max.
IP67 once mated
Cable sealing range 5.5-9mm
Operating temperature range -40 to +85 °C
Connector cross section 0.14 to 0.34mm²

EN60529

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.
