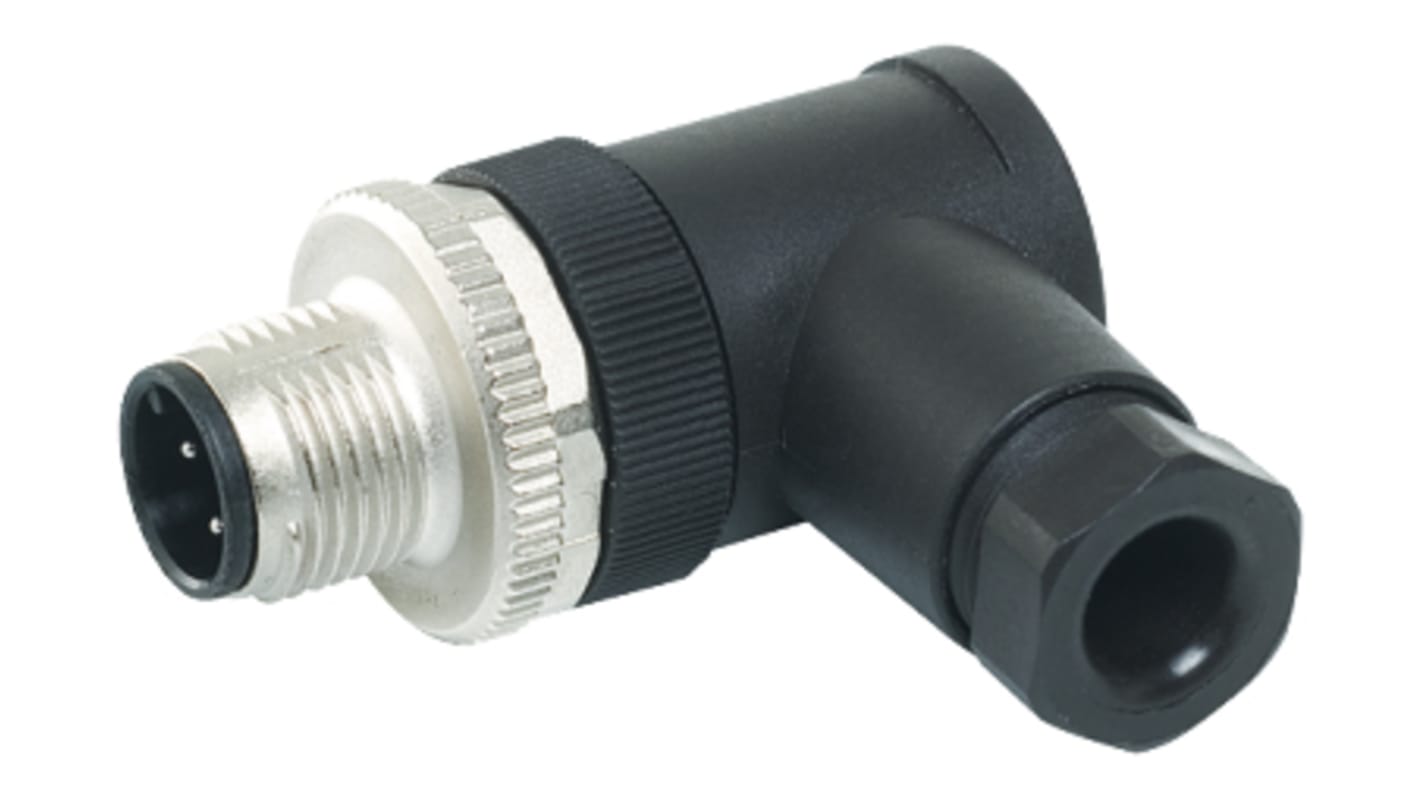

Murrelektronik Circular Connector Code 7000-14225-0000000

MOSA series M12 field-wireable cable mount connectors from Murr Elektronik, offered in male and female 2 way B coded or 4 way CAT5, D coded variants.These M12 connectors feature IDC terminals allowing in the field construction and repair are fully shielded and are IP67 rated once mated.

Operating voltage 32 Vac/dc (B coded), 50 Vac/dc (D coded)
Operating current 4A Max.
IP67 once mated
Operating temperature range -40 to + 85 °C
Connections cross section 0.25-0.34mm²

EN60529

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.
