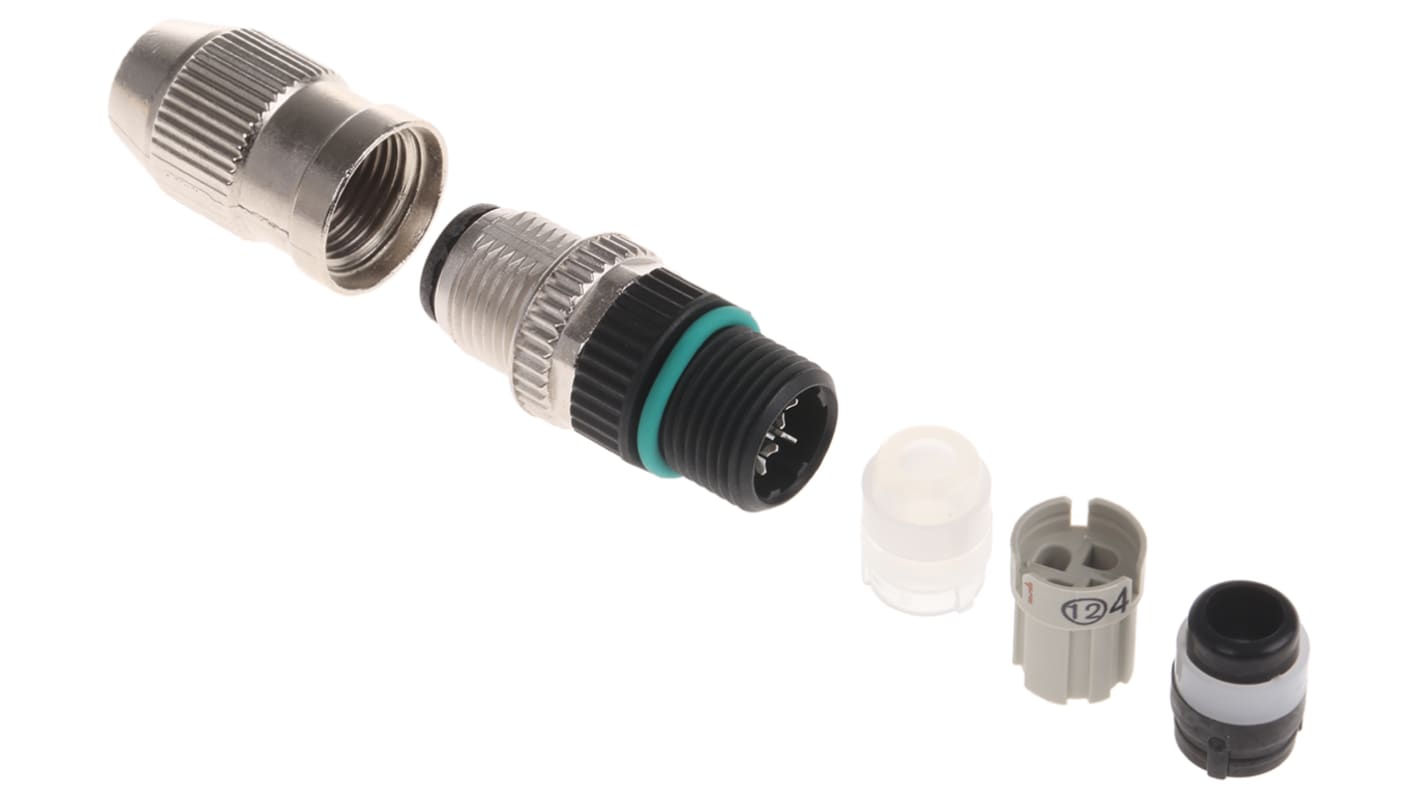

Murrelektronik Circular Connector Code 7000-13001-0000000

Murrelektronik Circular Connector Code 7000-13001-0000000

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

Murrelektronik

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
731.00 ฿
860.00 ฿ 731.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Murrelektronik Circular Connector Code 7000-13001-0000000

Murrelektronik Limited Circular Connector


The Murrelektronik Limited MOSA series is a 5-pole, cable mount male connector with a Socket type connection. The connector has a voltage rating of 125VAC/VDC and a current rating of 4A per contact. It is made of plastic housing material with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application.

Features and Benefits


• Connector size is M12
• Effective insulation
• High durability
• Industrial grade protection
• Operating temperature ranges between -25°C and 85°C

Applications


• Electrical panels
• Factory automation
• Industrial machinery

Certifications


• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• CRL certified
• IP67 rated

คุณสมบัติ
Value
Number of Contacts 5
Mounting Type Cable Mount
Connector Size M12
Plug/Socket Socket
Contact Gender Male
Termination Method Screw
IP Rating IP67
Current Rating 4.0A
Body Orientation Right Angle
Series 7000
Voltage Rating 125.0 V
Coding A
Mating Type Threaded
Housing Material Polymer
Pole Format 5P
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
ดูรายละเอียดทั้งหมด
