รายละเอียดสินค้า / Product Details

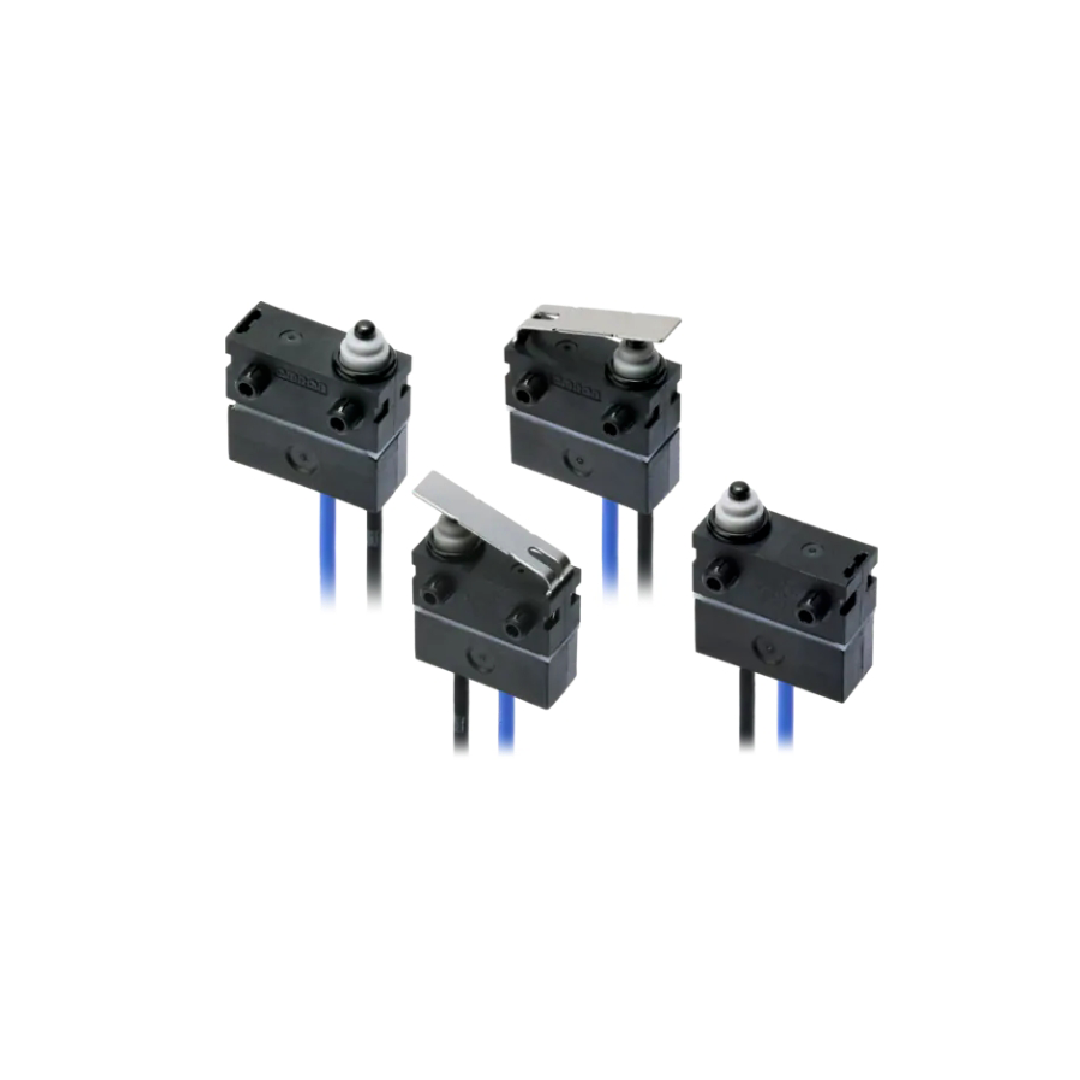

Omron Subminiature Sealed (5 A)
Sealed V3 style microswitch conforming to EN61058-1
Sealed to IEC IP50 (solder terminal type)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 5A @ 250Vac
Contact configuration: SPDT
Approvals
คุณสมบัติ / Specifications
| คุณสมบัติ |
Value |
| Actuator Type |
Pin Plunger |
| Terminal Type |
PCB Pin |
| Contact Configuration |
SPDT |
| IP Rating |
IP67 |
| Operating Force |
1.18 N |
| Minimum Operating Temperature |
-40°C |
| Maximum Operating Temperature |
+85°C |
| Contact Material |
Gold Alloy |
| Release Force |
0.15N |
| Voltage Rating |
250V ac |
| Operating Temperature Range |
-40 → +85°C |
