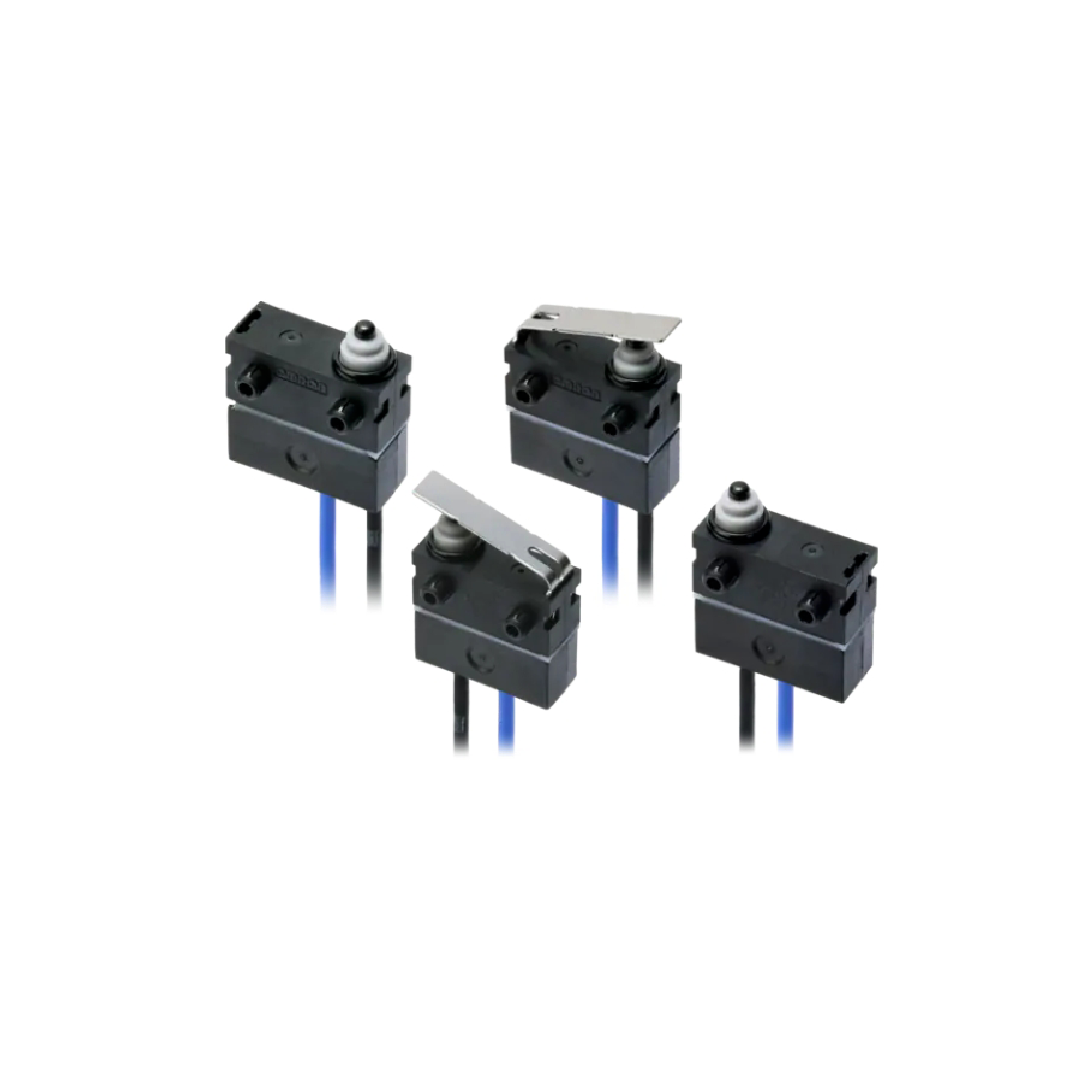

Micro Switch Omron D2FS-FL-N-T

Micro Switch Omron D2FS-FL-N-T

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
28.00 ฿
28.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Micro Switch Omron D2FS-FL-N-T

ข้อมูลทางเทคนิค / Technical Data Sheets

  • D2FS Series Datasheet

    • รายละเอียดสินค้า / Product Details

    D2FS Series Ultra Subminiature Basic Switch


    The D2FS series switches from Omron were developed primarily for applications that require minimal switching actions over the period of use. Suitable for applications such as door-detection to prevent the misuse of meters.

    Self-clinching variants available
    Simple construction with single leaf movable spring

    คุณสมบัติ / Specifications

    คุณสมบัติ Value
    Actuator Type Hinge Lever
    Terminal Type PCB Self-Clinching
    Contact Current Rating 100 mA @ 5 V dc
    Contact Configuration SPST
    IP Rating IP40
    Operating Force 0.25 N
    Minimum Operating Temperature -20°C
    Maximum Operating Temperature +70°C
    Contact Material Silver
    Mechanical Life 100000Operations
    Release Force 0.02N
    Operating Temperature Range -20 → +70°C
