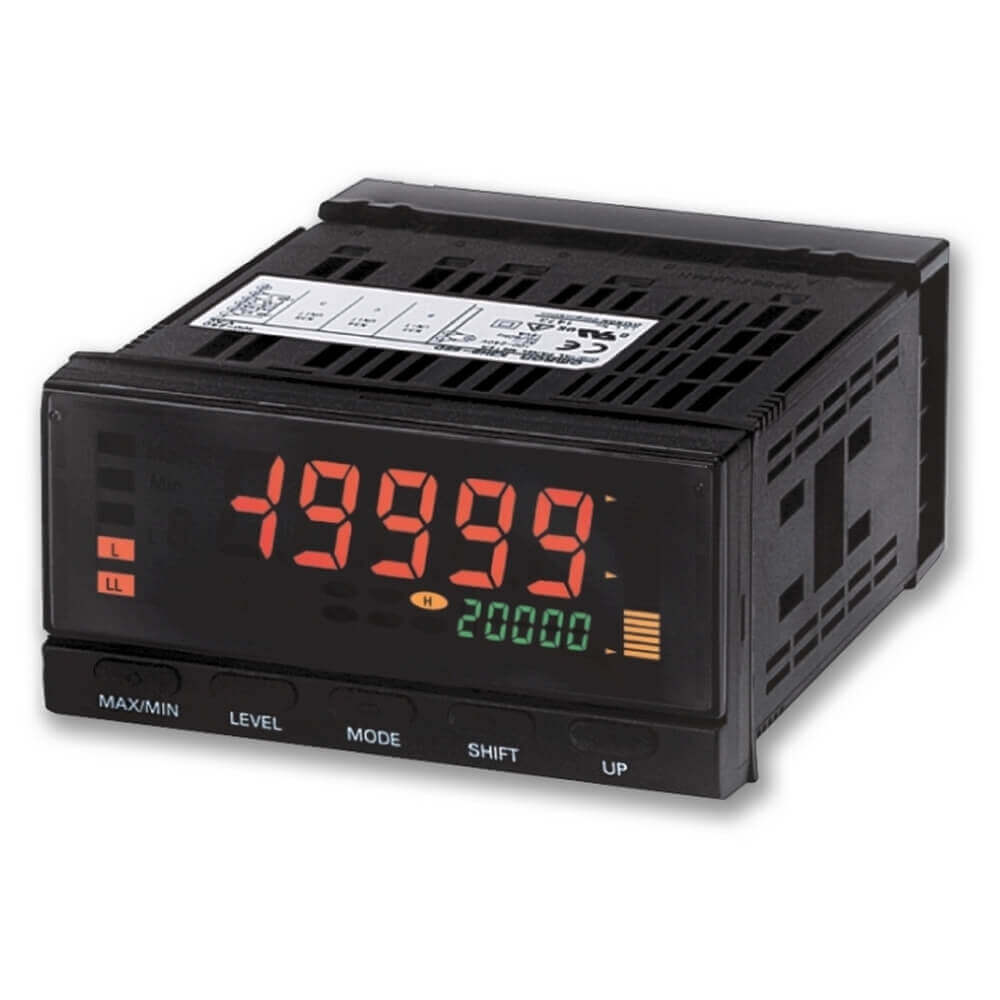

Meter OMRON K3HB-RPB 100/240VAC

K3HB-V multi-function panel meters for load cell inputs. Ideal for measuring factors such as load, torque, pressure and weight. With a simple to use menu structure for fast set-ups, these panel meters include pre-scaling which allows the display to show the required measurements rather than an arbitrary value, which ensures accuracy and aids productivity.

Easy display of status with dual colour change
Short body with 95mm depth
High clarity display and programmable bar graph
Very good in low light atmosphere
IP66 fascia ensures suitability in harsh and wash down environments
Capable of high-speed sampling at 50 times per second
Easy-to-set two-point scaling, allows conversion & display of any user-set values
Separate option cards available tailoring meter to the application of your choice (typical stock no. 611-7637)

The Omron rotary pulse indicator is performed high-speed rotation measurement and passing time measurement. An encoder is used to provide a pulsed PNP input, the meter then calculate based on this to provide the operation required. It is an indicator with a digital input feature along with a clear and easy-to-use colour-change display. It provides high-speed pulse measurements ranges between 0.5mHz and 50kHz of the rotary encoder or ON/OFF pulse signals.
Omron K3HB Series
This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).
Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm

Equipped with a position meter for monitoring operating status trends
Supply voltage rating is 100VAC to 240VAC
External event inputs allows using various measurement and discrimination applications
Programmable bar graph to show magnitude
Colour change display to give process status
Cut-out height is 45mm, width of 92mm and depth of 112mm
The minimum temperature is -10°C and 55°C

IP66 housing
UL approved
CE certified
NEMA 4X
cURus certified

Omron K3HB Series

This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).

Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm
