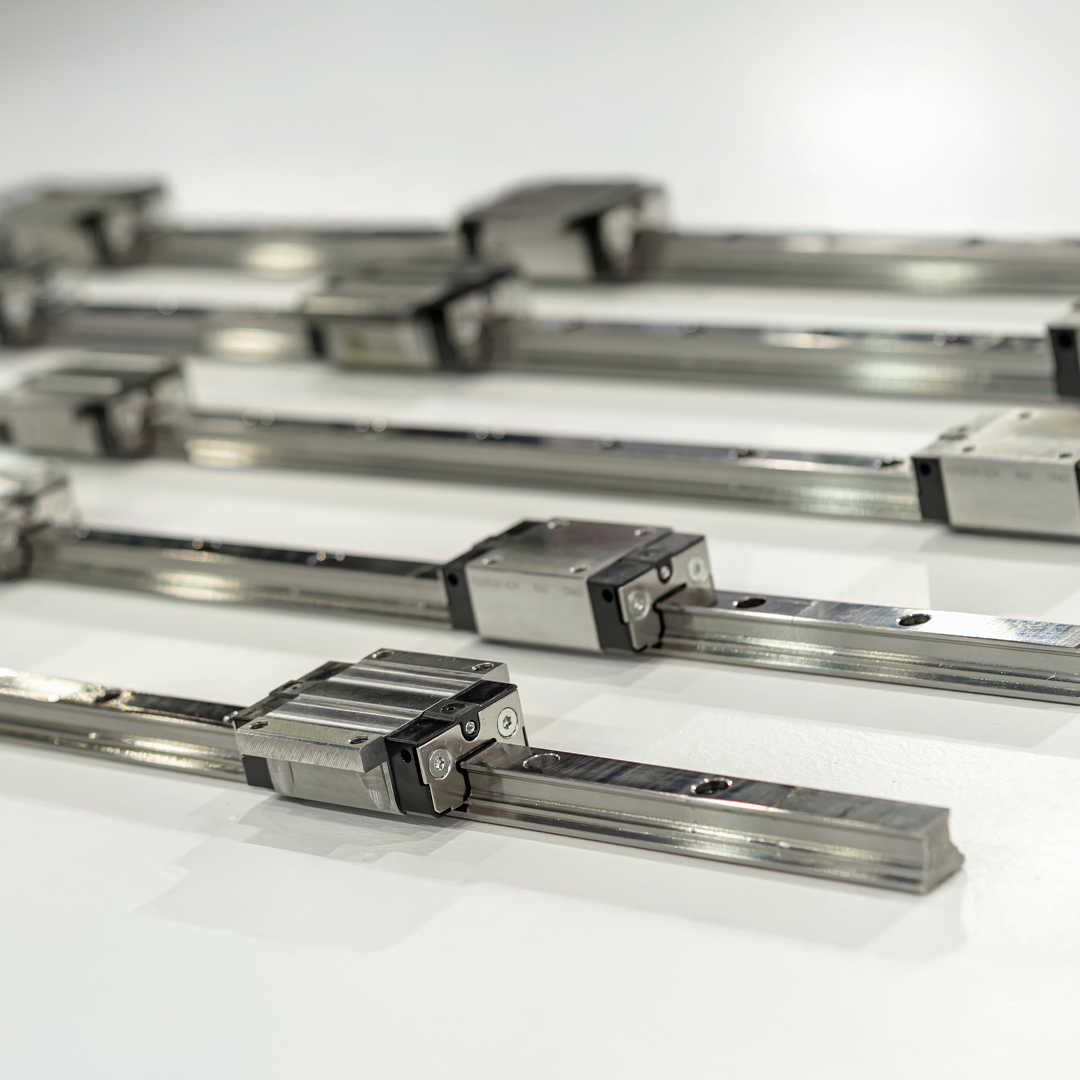

THK LM Guide HR918UU+70LH

THK LM Guide HR918UU+70LH

THK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
7,476.00 ฿
7,476.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด THK LM Guide HR918UU+70LH

Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
Radial
HeightM WidthW W0 LengthL B1 C H S h2 L1 T K S Greasing holed D1 WidthW1 W4 HeightM1 PitchF d1xd2xh Dynamic
rating
C		 Static
rating
C0
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN
HR918 8.5 11.4 18 45 5.5 15 - M3 - 25 7.5 8 1.5 - 6.7 3.5 8.7 6.5 25 4.5x7.5x3 2.82 3.48
Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
Radial
HeightM WidthW W0 LengthL B1 C H S h2 L1 T K S Greasing holed D1 WidthW1 W4 HeightM1 PitchF d1xd2xh Dynamic
rating
C		 Static
rating
C0
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN
HR1123 11 13.7 23 52 7 15 2.55 M3 3 30 9.5 10 2 5 9.5 5 11.6 8 40 3.5x6x4.5 4.09 4.93
HR1530 15 19.2 30 69 10 20 3.3 M4 3.5 40 13 14 2 6.5 10.7 6 13.5 11 60 3.5x6x4.5 7.56 8.77
HR2042 20 26.3 42 91.6 13 35 5.3 M6 5.5 56.6 17.5 19 3 10 15.6 8 19.5 14.5 60 6x9.5x8.5 17.0 18.2
HR2042T 20 26.3 42 110.7 13 50 5.3 M6 5.5 75.7 17.5 19 3 10 15.6 8 19.5 14.5 60 6x9.5x8.5 20.8 24.3
