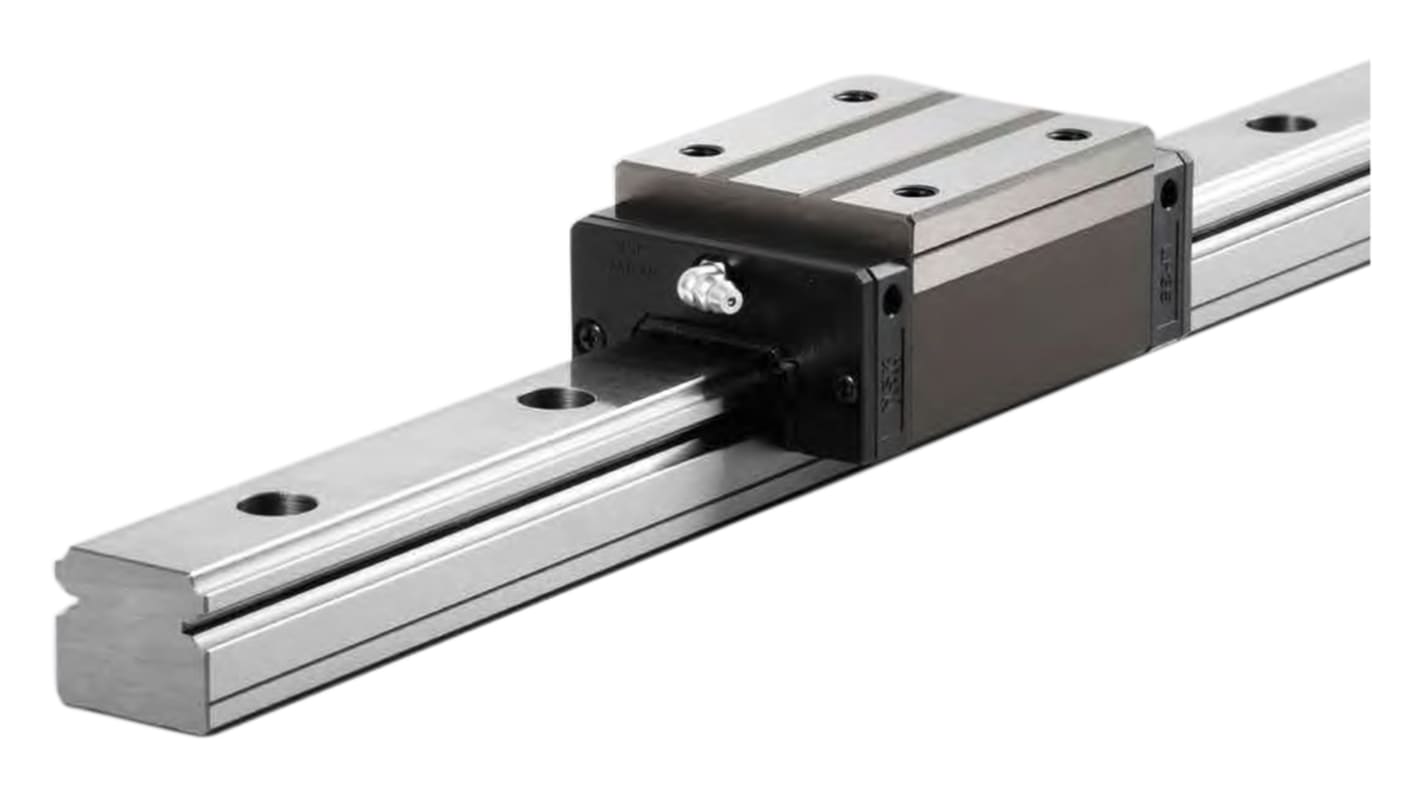

LM Guide NSK NAH30ANZ-K

LM Guide NSK NAH30ANZ-K

NSK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 6,200.00 ฿
ราคาปกติ ราคาโปรโมชัน 6,200.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด LM Guide NSK NAH30ANZ-K

NS Series Compact Linear Carriages

NSK have updated there N1H series of linear motion products and introduced the NH series. Redesigned to keep up with the market and demands on today's linear motion technology the new series offer a number of benefits

Features and Benefits

1.3 times the dynamic load rating of existing range (LS and LH)
New groove design doubles life expectancy (increasing the contact area between the ball and rail slide and ball slide, dispersing the load and reducing surface pressure).
The improved life expectancy of the new range significantly increases maintenance intervals and productivity.
NSK have kept the installation dimensions identical to that of the LH and LS range making the new NS and NH ranges fully compatible with existing components.
Redesigned ball recirculation path improves suitability for high speed applications and reduces noise by up to 3dB.
Typical applications include machine tools, robotics, semiconductor and automotive production lines, CT scanners, measuring instruments, automation and train platform doors.
Available with NSK’s K1 lubrication System

NSK K1 lubrication utilises a unique blend of 70% mineral oil and 30% polyolefin resin to provide long term maintenance free service.

คุณสมบัติ / Specifications

คุณสมบัติ Value
Manufacturer Series NAH
For Rail Width 30mm
Carriage Length 85.6mm
Carriage Width 60mm
Dynamic Load Rating 32500N
Static Load Rating 51500N
