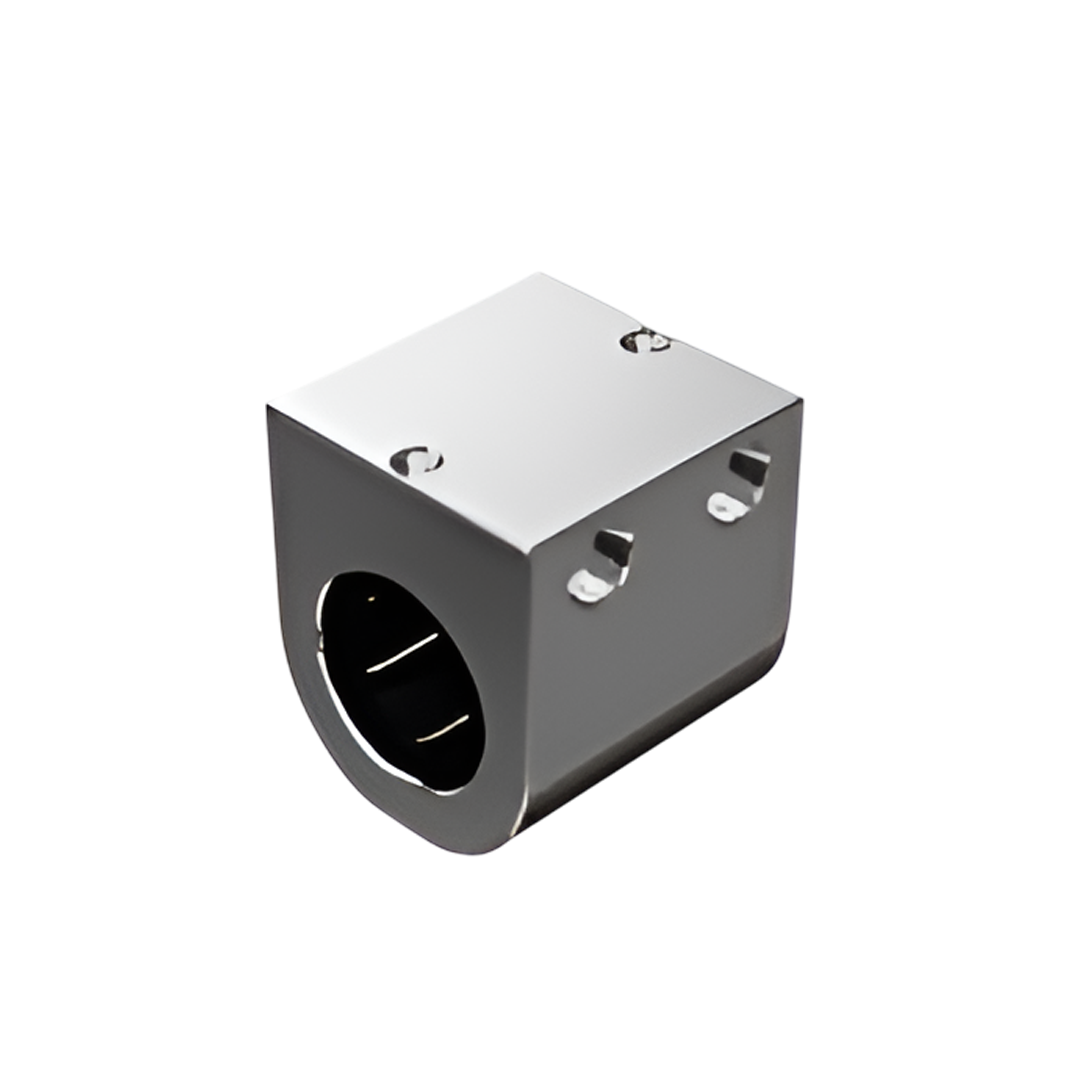

Linear Bushing SH20UU

Name: Linear Bushing SH20UU
Brand: THK
Price: 1904.00 THB
Availability: InStock

THK

1,904.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing SH20UU

Model No.	Outer dimensions			LM casing dimensions												Model No.of LinearBushingto becombined	Basic load rating		Mass
	HeightM	WidthW	LengthL	Mounting hole position			Tap		ThroughboltS₃	CenterheightJ±0.02	W₁±0.02	d₂	h	Inscribed borediameter			Dynamic rating C	Static rating C₀
	HeightM	WidthW	LengthL	B	B₁	C	S₁ × l₁	S₂ × l		CenterheightJ±0.02	W₁±0.02	d₂	h	dr	Tolerance		Dynamic rating C	Static rating C₀
	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm			N	N	g
SH3UU	14	10	13	—	8	3	M3×6	M3×5.5	M2	9	5	4.2	1.5	3	0-0.008	LM3UU	88.2	108	4.5
SH4UU	16	12	15	—	10	3	M3×6	M3×6	M2	10	6	4.2	1.5	4		LM4UU	88.2	127	7
SH5UU	18	14	17	—	12	3	M3×6	M3×6	M2	11	7	4.2	1.5	5		LM5UU	167	206	11
SH6UU	22	16	24	18	9	5	M4×8	M4×8	M3	14	8	6.5	3.3	6	0-0.009	LM6UU	206	265	21.6
SH8UU	26	20	27	20	10	5	M4×8	M5×8.5	M3	16	10	6.5	3.3	8		LM8UU	265	402	32
SH10UU	32	26	35	27	15	6	M5×10	M6×9.5	M4	19	13	8	4.4	10		LM10UU	373	549	65
SH12UU	34	28	35	27	15	6	M5×10	M6×9.5	M4	20	14	8	4.4	12		LM12UU	412	598	81
SH13UU	36	30	36	28	16	6	M5×10	M6×9.5	M4	21	15	8	4.4	13		LM13UU	510	775	90
SH16UU	42	36	40	32	18	6	M5×10	M6×10	M4	24	18	8	4.4	16		LM16UU	775	1180	150
SH20UU	49	42	44	36	22	7	M6×12	M6×12	M5	28	21	9.5	5.4	20	0-0.010	LM20UU	863	1370	215
