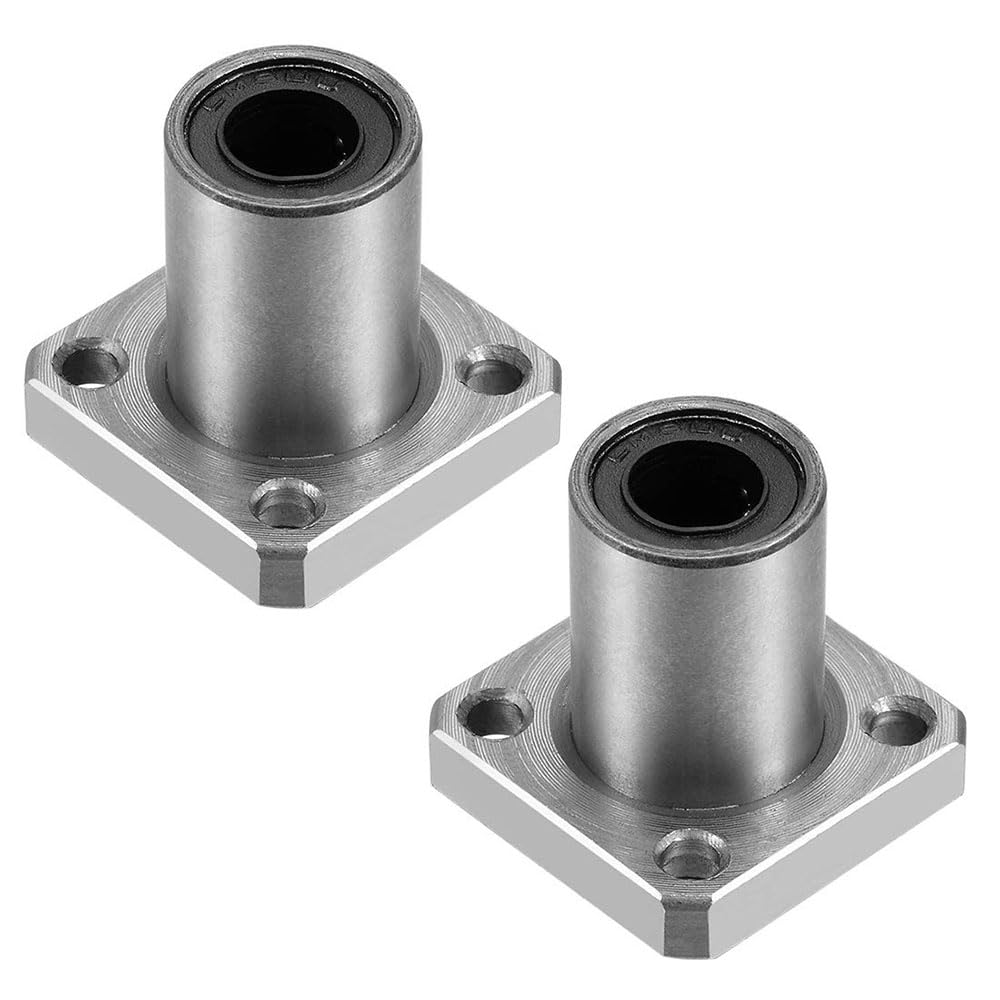

Linear Bushing LMK12ML

Linear Bushing LMK12ML

THK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

3,668.00 ฿

3,668.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing LMK12ML

Note: Since this model contains a synthetic resin retainer, do not use it at temperature exceeding 80°.For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model No.	Ball rows	Main dimensions												Flangeperpen-dicularity	Eccentricity(max)	Radial Clearance Tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		K	H	PCD	Mounting holed₁×d₂×h				Dynamic rating C	Static rating C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	D₁	Tolerance	K	H	PCD	Mounting holed₁×d₂×h				Dynamic rating C	Static rating C₀
		mm		mm		mm		mm		mm	mm	mm	mm	µm	µm	µm	N	N	g
LMK6M	4	6	0-0.010	12	0-0.013	35	0-0.3	28	0-0.2	22	5	20	3.4×6.5×3.3	15	15	–5	324	529	26
LMK8M	4	8		15	0-0.013	45		32		25	5	24	3.4×6.5×3.3	15	15	–5	431	784	46
LMK10M	4	10		19	0-0.016	55		39		30	6	29	4.5×8×4.4	15	15	–5	588	1100	88
LMK12M	4	12		21		57		42		32	6	32	4.5×8×4.4	15	15	–5	657	1200	82
LMK13M	4	13		23		61		43		34	6	33	4.5×8×4.4	15	15	–7	814	1570	108
LMK16M	5	16		28		70		48		37	6	38	4.5×8×4.4	15	15	–7	1230	2350	160
LMK20M	5	20	0-0.012	32	0-0.019	80		54		42	8	43	5.5×9.2×5.4	20	20	–9	1400	2750	230
LMK25M	6	25		40		112	0-0.4	62		50	8	51	5.5×9.2×5.4	20	20	–9	1560	3140	475
LMK30M	6	30		45		123	0-0.4	74		58	10	60	6.6×11×6.5	20	20	–9	2490	5490	575
