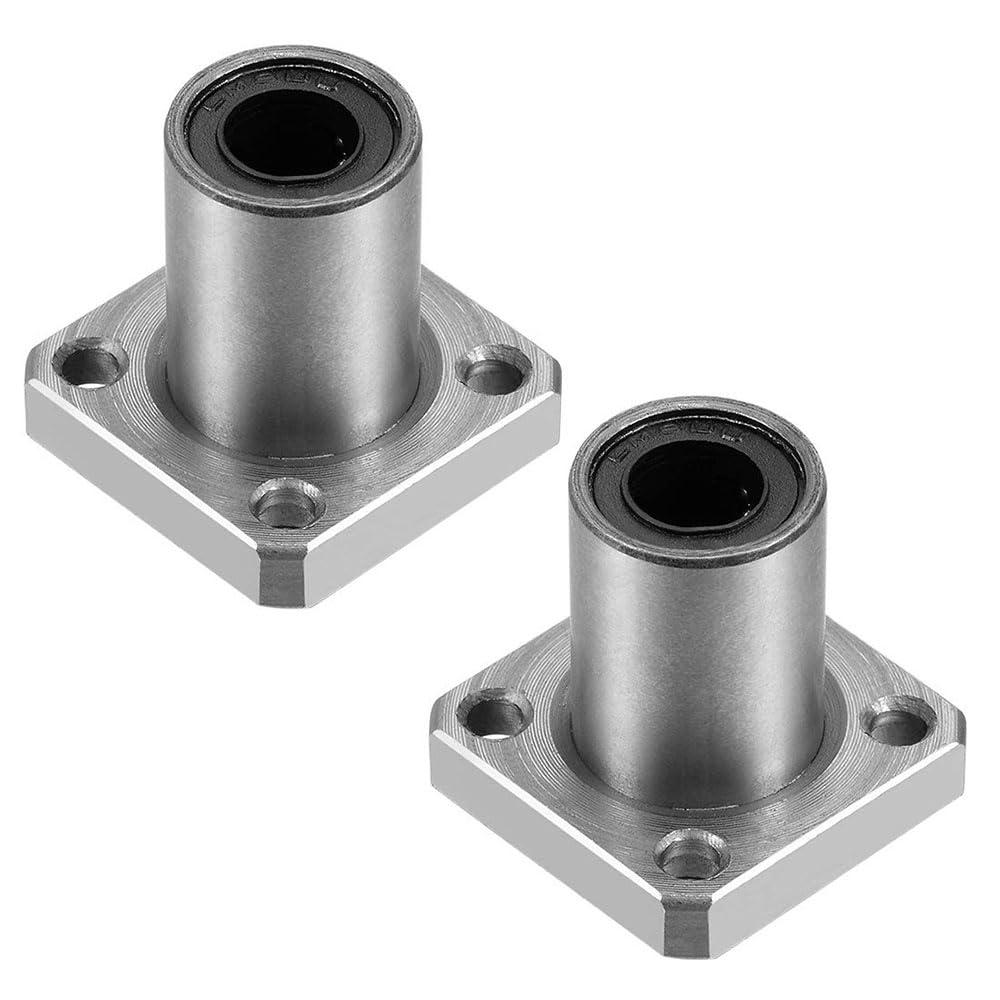

Linear Bushing LMK10MUU

Linear Bushing LMK10MUU

THK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

2,548.00 ฿

2,548.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing LMK10MUU

Note: Since this model contains a synthetic resin retainer, do not use it at temperature exceeding 80°.For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model No.	Ball rows	Main dimensions												Flangeperpen-dicularity	Eccentricity(max)	Radial Clearance Tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		K	H	PCD	Mounting holed₁×d₂×h				Dynamic rating C	Static rating C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	D₁	Tolerance	K	H	PCD	Mounting holed₁×d₂×h				Dynamic rating C	Static rating C₀
		mm		mm		mm		mm		mm	mm	mm	mm	µm	µm	µm	N	N	g
LMK6M	4	6	0-0.009	12	0-0.011	19	0-0.2	28	0-0.2	22	5	20	3.4×6.5×3.3	12	12	–5	206	265	18.5
LMK8SM	4	8		15		17		32		25	5	24	3.4×6.5×3.3	12	12	–5	176	225	23
LMK8M	4	8		15		24		32		25	5	24	3.4×6.5×3.3	12	12	–5	265	402	29
LMK10M	4	10		19	0-0.013	29		39		30	6	29	4.5×8×4.4	12	12	–5	373	549	61
LMK12M	4	12		21		30		42		32	6	32	4.5×8×4.4	12	12	–5	412	598	56
LMK13M	4	13		23		32		43		34	6	33	4.5×8×4.4	12	12	–7	510	775	75
LMK16M	5	16		28		37		48		37	6	38	4.5×8×4.4	12	12	–7	775	1180	104
LMK20M	5	20	0-0.010	32	0-0.016	42		54		42	8	43	5.5×9.2×5.4	15	15	–9	863	1370	145
LMK25M	6	25		40		59	0-0.3	62		50	8	51	5.5×9.2×5.4	15	15	–9	980	1570	300
LMK30M	6	30		45		64	0-0.3	74		58	10	60	6.6×11×6.5	15	15	–9	1570	2750	375
